12

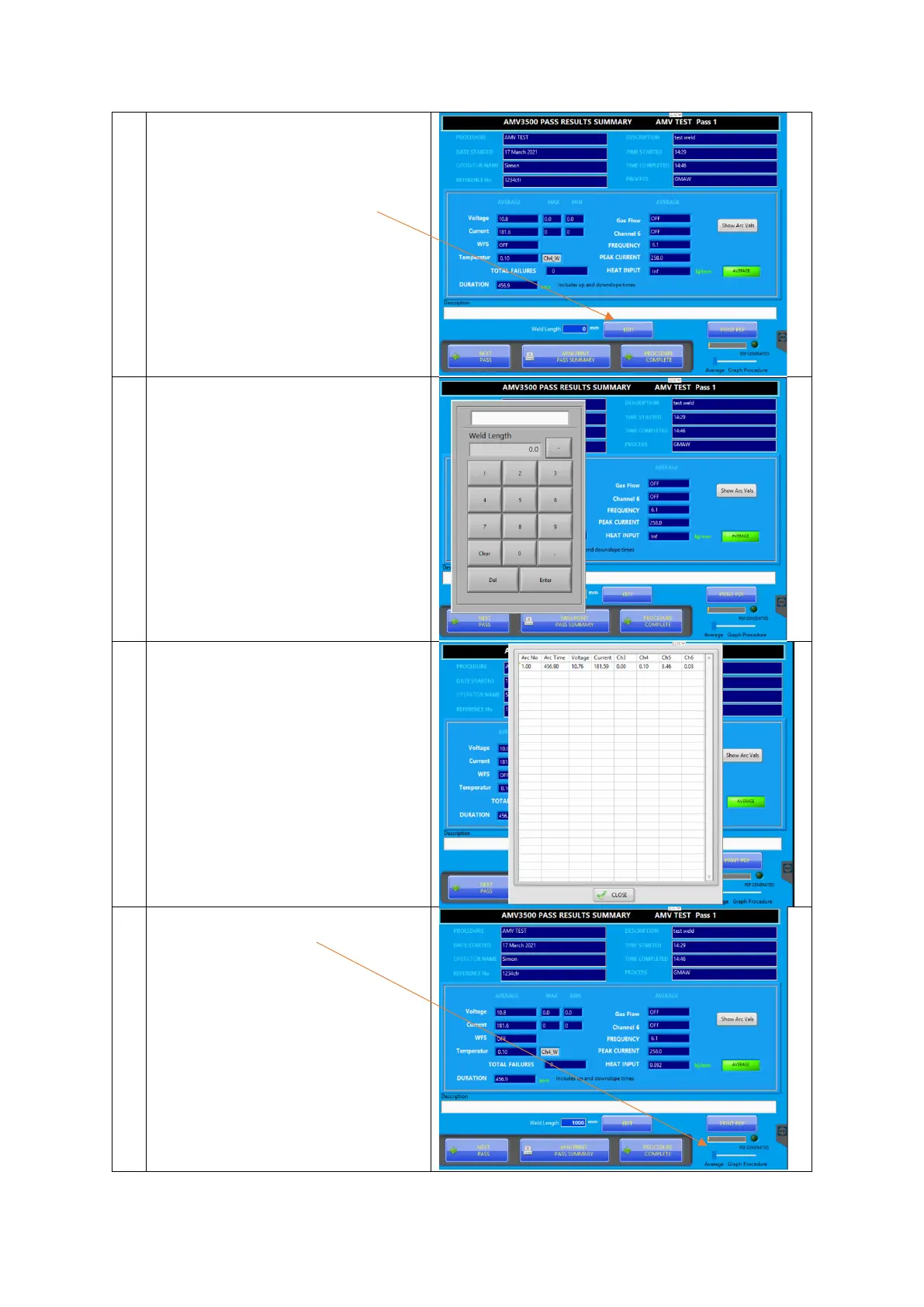

The PASS COMPLETE screen is a
summary of the pass data recorded.
Enter a weld length to calculate heat
input. Press the EDIT button
13
The use the keypad to enter the
length in mm
Press enter
14
Press show arc value to show the
individual arc values recorded
In this case there is just 1 arc
Press CLOSE
15
Use the sloder to see voltage and
current trand graphs
