KEY TO MAIN COMPONENTS

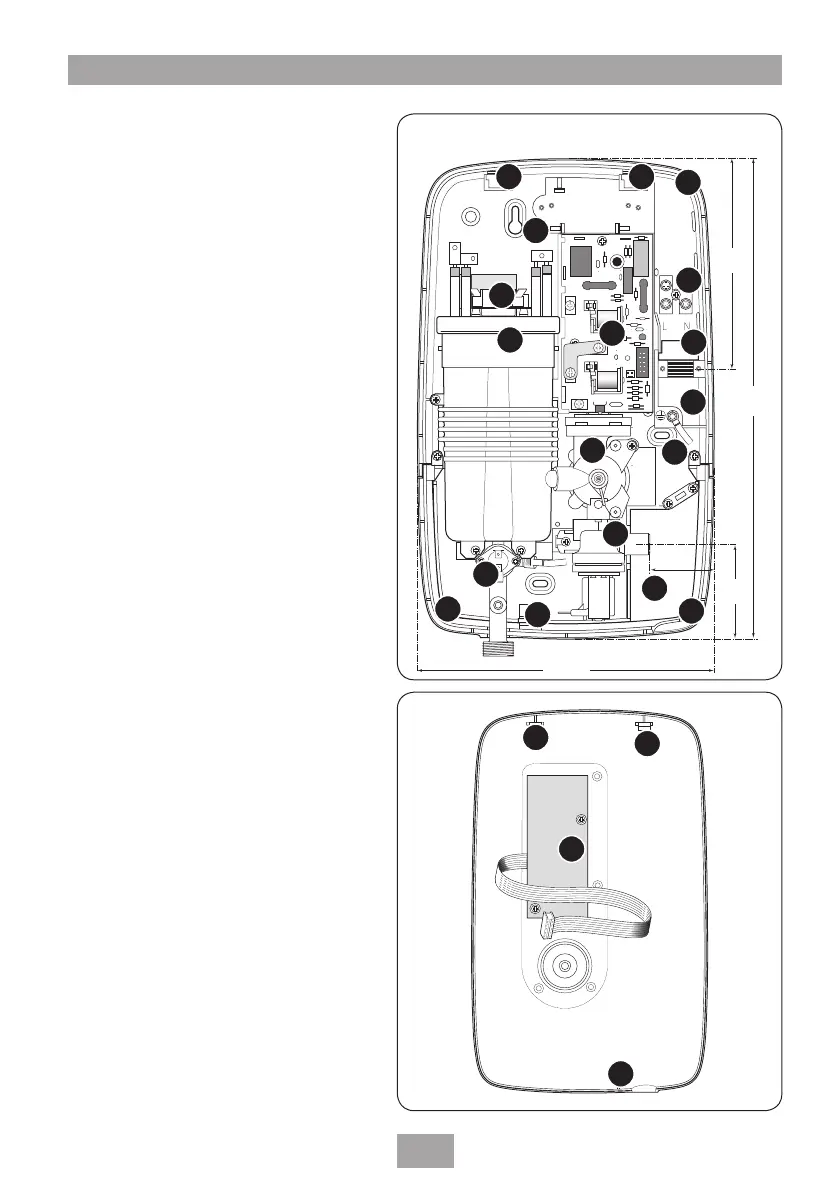

Inside unit (fig.1)
1. Top cable entry
2. Bottom pipe entry
3. Rear pipe entry area
4. Rear cable entry area
5. Wall screw fixing
6. Terminal block
7. Power PCB
8. Stabilising valve
9. Solenoid valve
10. Guide pockets
11. Can and element assembly
12. Thermal cut-out (main)
13. Earth connection
14. Outlet temperature limiter
15. Trimplate
Inside cover (fig.2)
16. Cover tags
17. Control PCB
Pack contents
Shower unit
Five position showerhead
Riser rail kit and fittings
Soap dish
Flexible hose
Screw fixing kit
Instructions, guarantee, etc.
338
mm
68
mm
47
mm
145
mm
208 mm
Inlet
Outlet
Fig.1
Fig.2
NOTE: Not all wiring shown for reasons of clarity
