Triumph 1978 - Control Layout

1 CLUTCH LEVER
2. HIGH -L OW HEADLAMPS SW ITCH
3. TACHOM ETER
4. OIL PRESSURE W P.RNING LIGHT (RED)
5.
DIRECT ION IN DICATOR WA RNIN G LIGHT
(AMBER)
6. LIGHT
SWITCH
7. HI-BEAM W ARNIN G LI GHT (GREE N)
8
SPEEDOMETER
9. IGNITION SWITCH
10 . FRONT BRAKE LE VER
11 T HROTILE
12 HORN PUSH
13 . ENGINE STOP 'KILL' SWITCH
1 4. REAR B RAKE PEDAL
15 KICKSTARTER
16. RIGHT FOOTREST
17 LEFT FOOTRE ST
' 8, GEARCHAN GE LEVER
19
STEERING LOCK
20 DIRECTION INDICATOR
SWITCH
21 COLD ST ART

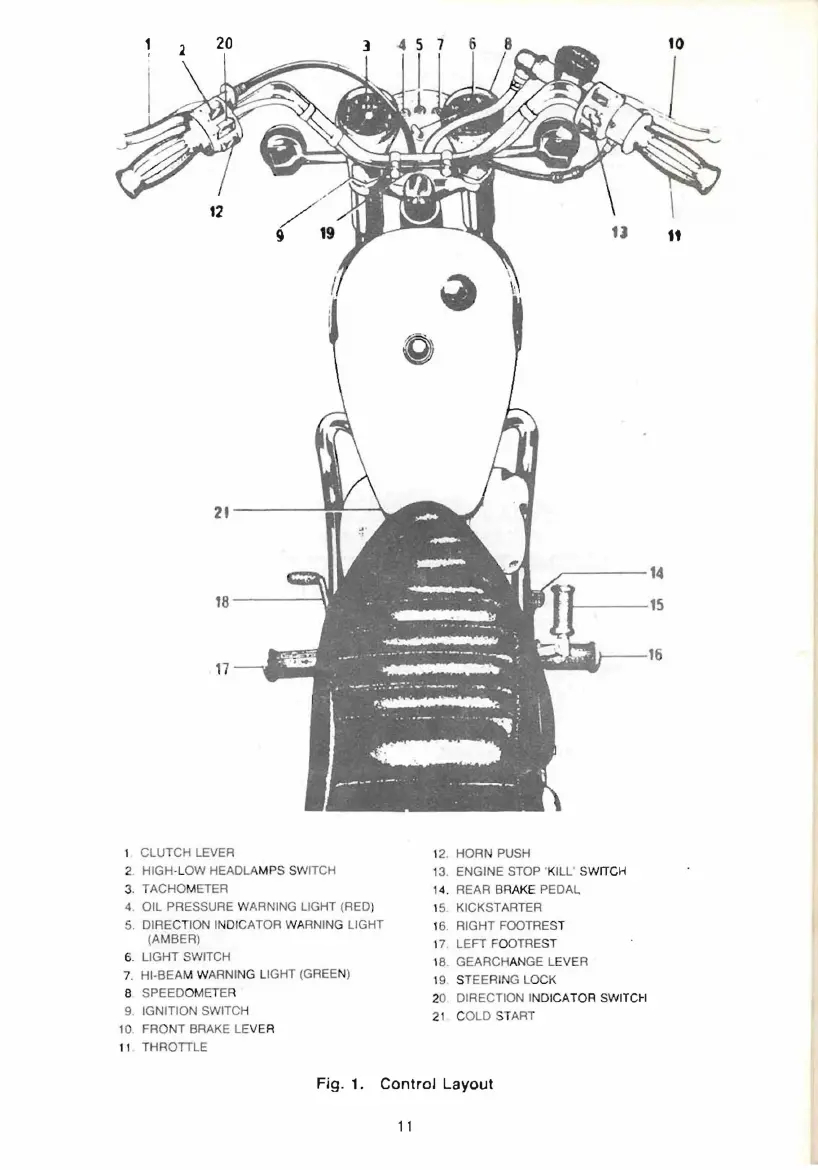

Fig. 1. Control Layout
11
