Triumph 1978 - Drain Plug

2 --~ ..c:.
3
5 -- -{
6 ---_& HI
7 --~-f!
8
9
Drain plug
t--
'O
1 Cable adjuster
2 Cable-adjuster locknut
~
3 Mixing-chamber top
4 Throttle-slide spring
11 5 Needle retaining disc
~ 12 6 Needle clip
, 7 Throttle needle
I 8 Throttle slide
9 Carburetor body assembly
10 Cold start plunger assembly
1 ~ Cold start lever and bracket
12 Cold start click spring
13 Air intake adaptor
14 Air intake adaptor securing screws
15 Needle je t
16 Jet holder
17 Main jet
18 Float spindle
19 Float
20 Float needle
21 Filter
22 Banjo
23 Banjo bo lt
24 Pilot-air adjusting-screw
25 Throttle-stop ad justing-screw
26 Pilot jet
27 Float bowl washer
28 Cold sta rt jet
29 Fl oat bowl
30 Fl oat-bowl securi ng screws
31 Float-bowl drain-plug washer
32 Float-bowl drain-plug

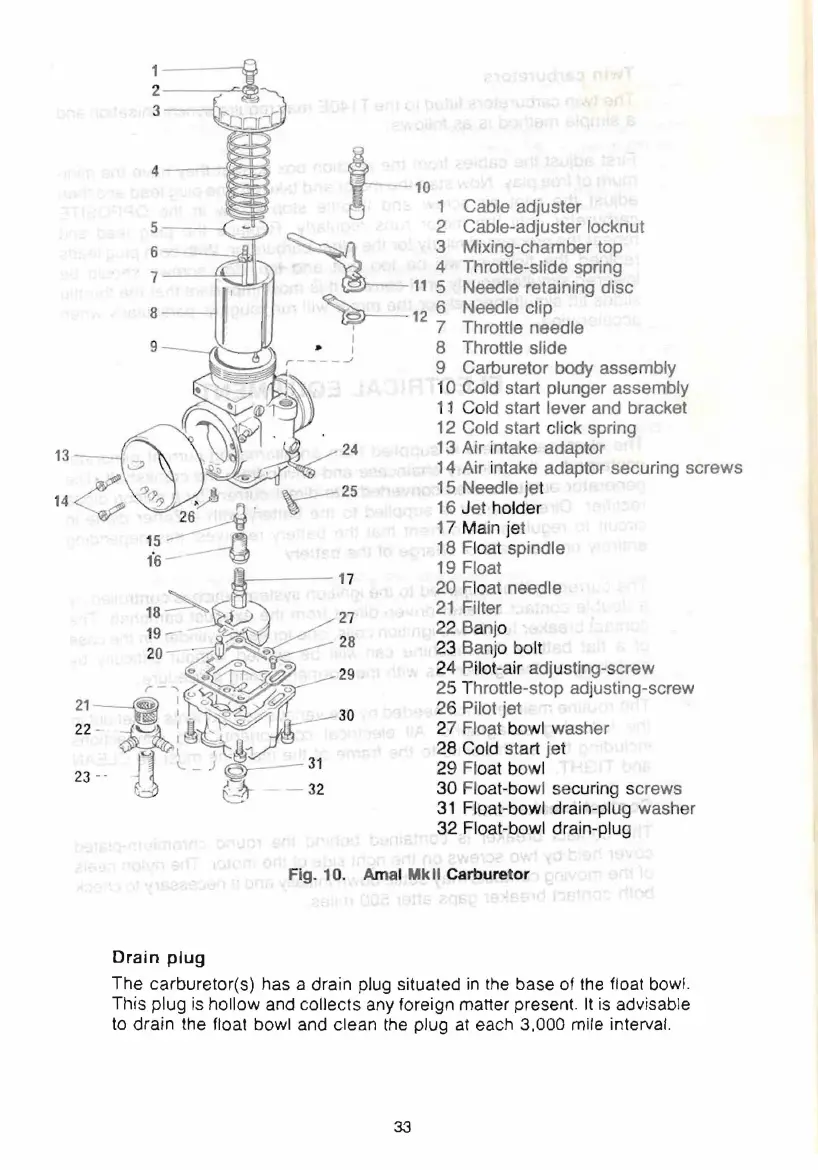

Fig. 10. Arnal Mkll Carburet or
The carburetor(s) has a drain plug situated in the base of the float bowl.
This plug is hollow and collects any foreign matter present. It is advisable
to drain the float bowl and clean the plug at each 3,000 mile interval.
33
