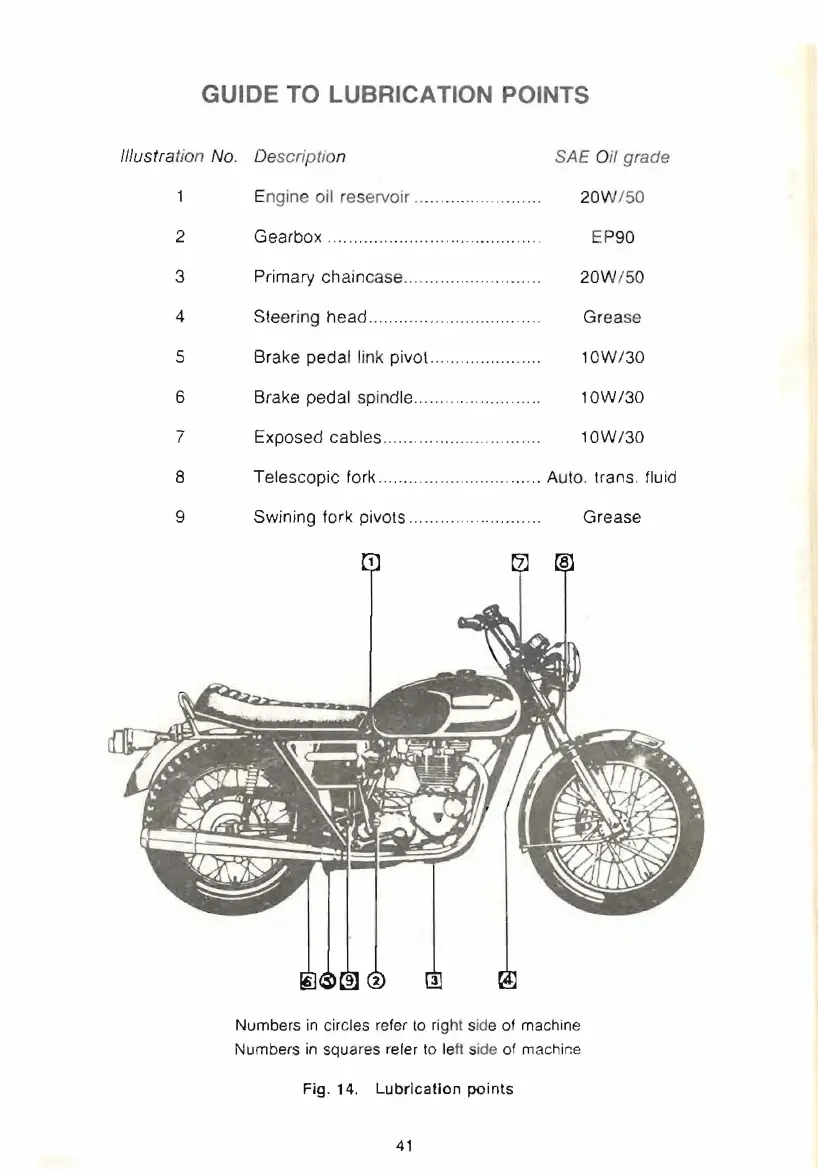

GUIDE TO LUBRICATION POINTS
/IIustra (;on No. Description SAE Oil grade
Engine oil reservoir ..... , .... ... ... ,.... . .. . 20W /50
2 Gearbox , ......... .. .. .. .. ..... , ............ . , . .. .
EP90
3
Primary chaincase ....
.. .. ....... .... ..... .. .
20W / 50
4 Steering head .. ............. ...... .. ... . .. , .. . .
Grease
5
Brake peda l link pivot.. ... .. ............. .. 10WJ30
6 Brake pedal spindle .... .. " ............... . 10W/30
7 Exposed cables ........................... .. .. 10W/30
8 Telescopic fork ................................ Auto. trans. fluid
9 Swining fork pivots .. ...... .. " ... ... .... .. ..
Numbers in circles refer to right side of machine
Numbers
in squares refer to le ft side of machine
Fig. 14. Lubrication points
41
Grease
