GEARBOX
The drain and level plugs are situated underneath the gearbox. To drain
the gearbox remove
the
assembly. When you are ready
to
replenish the
gearbox
replace only the drain plug
(0)
with the level tube and then add
oil to the gearbox through the side filler hole (8) until oil just begins
to
flow
down the level tube, then replace the level plug (C) .
When checking the
level remember that normally there will be some oil
trapped in the level tube which should be allowed to drain before topping
up commences.

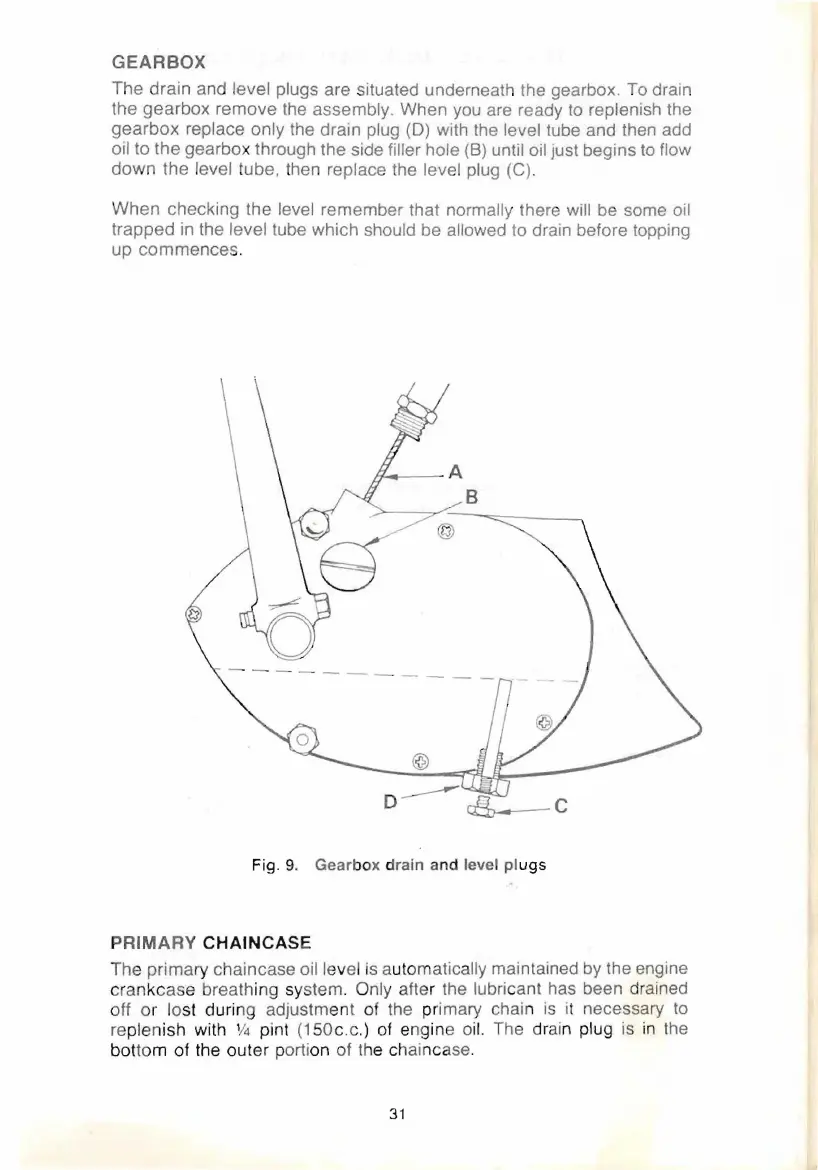

Fig.
9.
Gearbox drain and level pl
ugs
P
RIMARY
CHAINCASE
The primary chaincase oil level
is
automatically maintained
by
the engine
crankcase breathing
sy
stem. Only after the lubricant has been drained
off or
lost during adjustm
en
t of the primary chai n is it necessary to
replenish with
1J4
pint
(1
S0c.c
.)
of
e
ng
ine o
il.
The drain plug
is
in
the
bottom of the outer portion of the
ch
ai
ncase.
31
