Triumph Tiger 800 - Fuse Identification; Front of Motorcycle

109
Maintenance and Adjustment
Fuse Identification
A blown fuse is indicated when all of the
systems protected by that fuse become
inoperative. When checking for a blown fuse,
use the tables to establish which fuse has
blown.
The fuse identification numbers listed in the
tables correspond with those printed on the
fuse box covers, as shown below. Spare fuses
are located at right angles to the main fuses
and should be replaced if used.

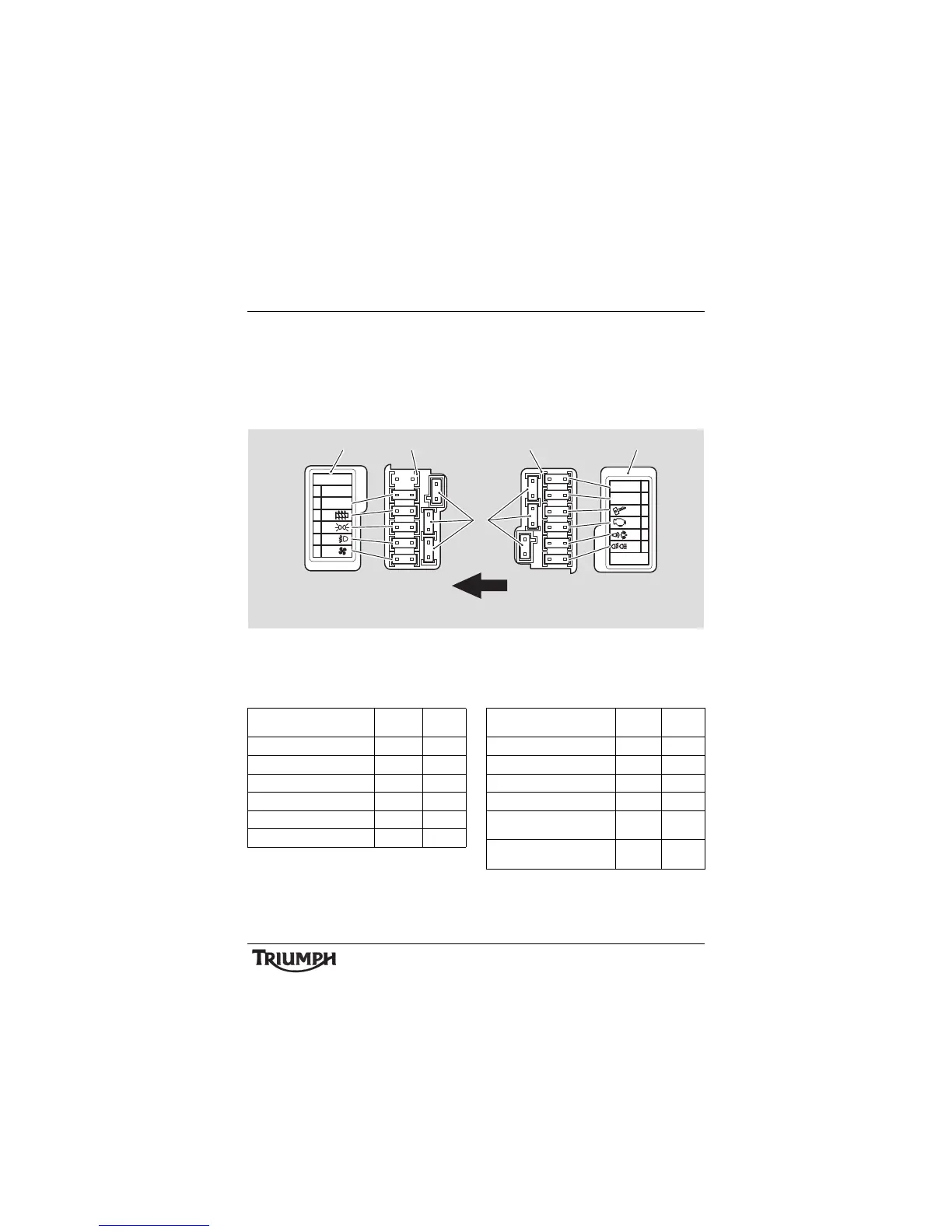

1. Front fuse box cover
2. Front fuse box
3. Spare fuses
4. Rear fuse box
5. Rear fuse box cover
Front fuse box Rear fuse box
Note:
• The starter solenoid has an
additional 30 Amp fuse, attached
directly to the solenoid, beneath the
rider's seat.
15
5
10
10
10
15
5
15
EMPTY
6
OPEN
5A
5
10A
4
10A
3
15A
2
15A 1
ACC
15
20
20
10
15
20
10
5
20A 1
OPEN
20A 2
10A 3
20A
4
5A
5
20A
6
20
ABS
ABS
21 45
3
cebw_2
Front of Motorcycle
Circuit Protected Position Rating
(Amps)
Cooling fan 1 15
Accessory lights 2 5
Auxiliary lighting 3 10
Heated Grips 4 10
Accessory sockets 5 15
Not used 6 -
Circuit Protected Position Rating
(Amps)
ABS 1 20
ABS 2 20
Alarm, instruments, ECM 3 10
Engine management 4 20
Alarm, diagnostic connector,
instruments
55
Dip and main beam
headlights, starter relay
620
