Triumph Tiger 800 - Headlight Adjustment; Headlight Adjustment Lever for Loaded Conditions

111
Maintenance and Adjustment

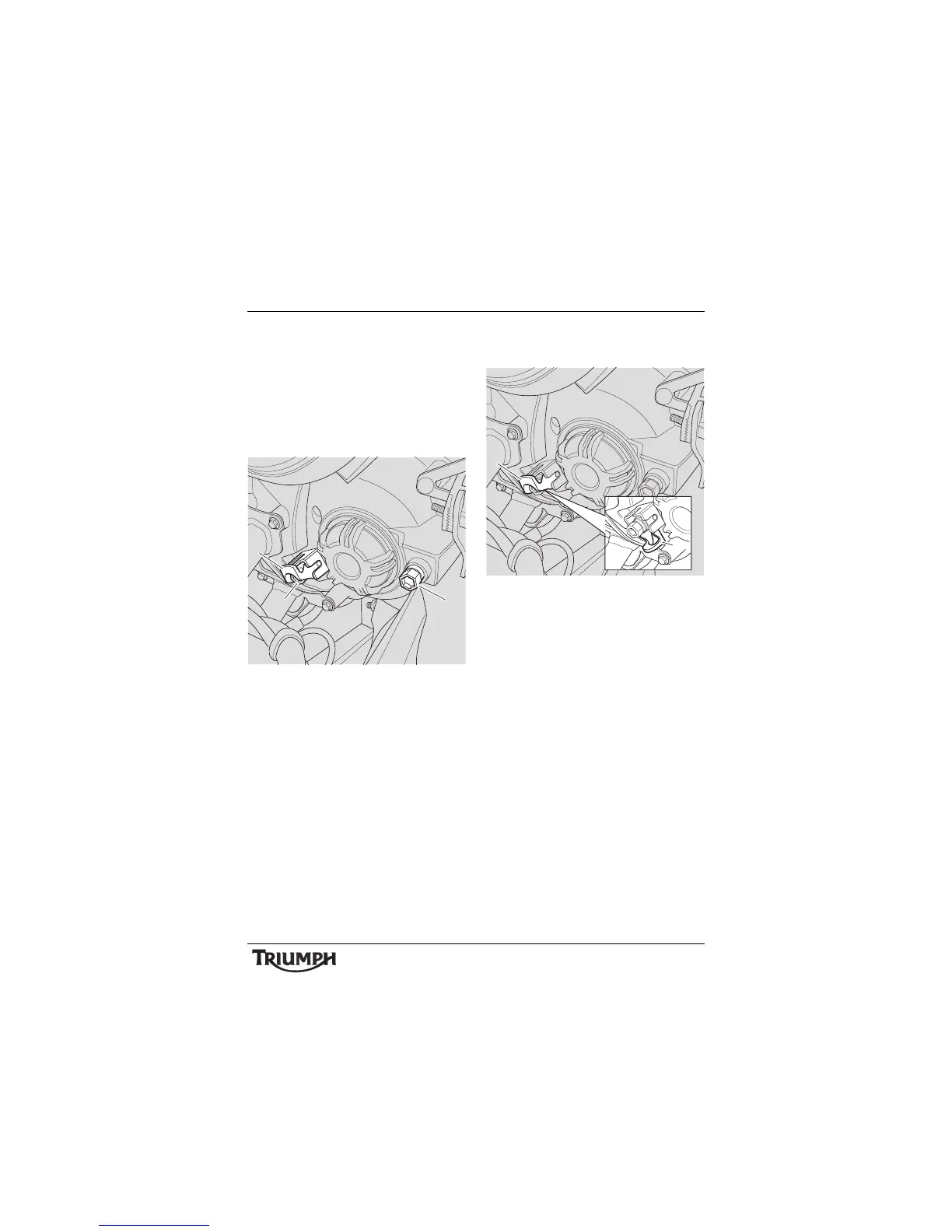

Headlight Adjustment
Each headlight can be adjusted by means of
vertical and horizontal adjustment screws
located on the rear of each headlight. In
addition, the headlight is equipped with an
easily accessible adjuster to allow the vertical
adjustment to be corrected when the
motorcycle is fully loaded.
1. Horizontal (LEFT - RIGHT)
adjustment screw
2. Vertical (UP - DOWN) adjustment
screw
3. Headlight adjuster lever for loaded
conditions
Switch the headlight dipped beam on.
Turn the vertical (UP - DOWN) adjustment
screw on the headlight clockwise to raise the
beam or anti-clockwise to lower the beam.
Turn the horizontal (LEFT - RIGHT)
adjustment screw clockwise to move the
beam to the right or anti-clockwise to move
the beam to the left.
Switch the headlights off when the beam
settings are satisfactory.
Headlight Adjustment Lever for
Loaded Conditions
1. Headlight adjuster lever (unloaded
position)
2. Headlight adjuster lever (loaded
position)
For normal (unloaded) conditions the
headlight adjuster lever should be set in the
horizontal position (1).
For loaded conditions rotate the headlight
adjuster downwards until it stops (2). This will
lower the headlight beams by
approximately 2°.
3
2
cgim
1
1
2
cgin
