General Information
Starter Button
The starter button operates the electric
starter. For the starter to operate, the clutch
lever must be pulled to the handlebar.
Note:
• Even if the clutch lever is pulled to
the handlebar, the starter will not
operate if the side stand is down and
a gear is engaged.
With the engine running, the starter button
functions as the lap timer 'trigger' button.
Momentarily pressing the starter button will
start the lap timer recording the next lap.

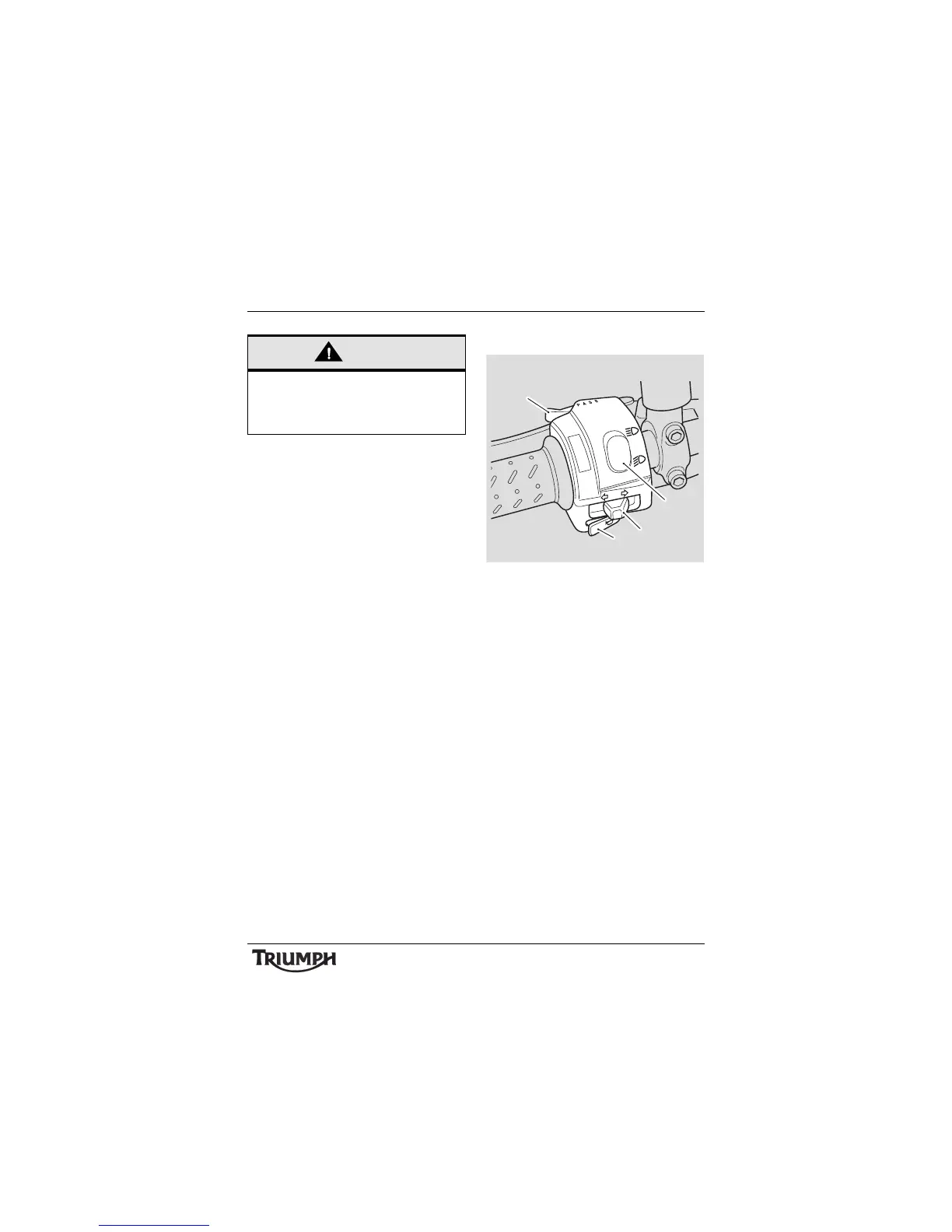

Left Handlebar Switches
1. Headlight dip switch
2. Direction indicator switch
3. Horn button
4. Pass button
Headlight Dip Switch
High or low beam can be selected with the
headlight dip switch. To select high beam,
push the switch forward. To select low beam,
push the switch rearwards. When the high
beam is turned on, the high beam indicator
light will illuminate.
Note:
• A lighting on/off switch is not fitted
to this model. The headlight, rear
light and licence plate light all
function automatically when the
ignition is turned to the ON position.
Caution
Do not leave the ignition switch in the
ON position unless the engine is running
as this may cause damage to electrical
components and will discharge the battery.
