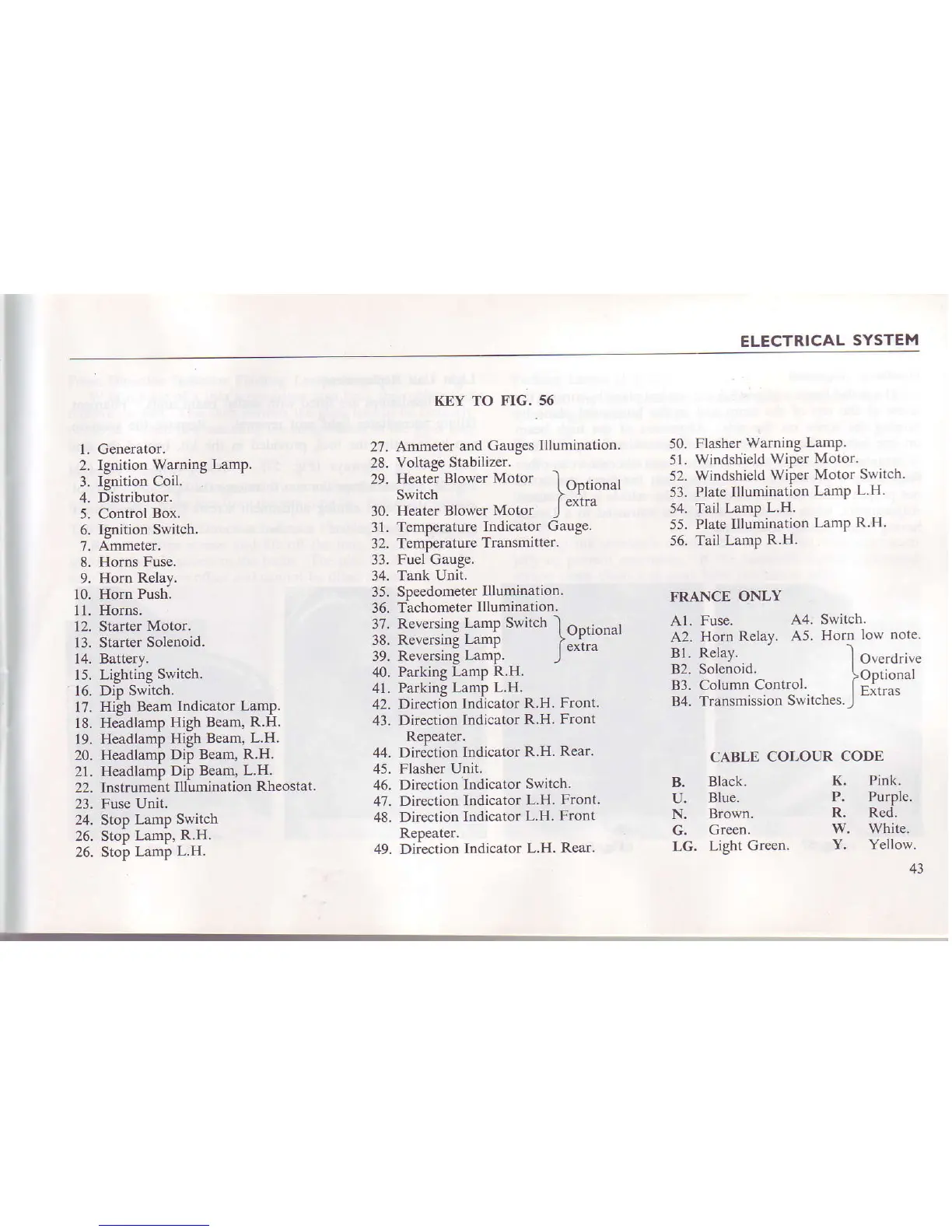

ELECTRICAL
SYSTEM
l. Generator.
2.
Ignition Warning
Lamp,
3.
Ignition Coil.
4. Distributor.
5. Control
Box.
6. Ignition
Switch.
7. Ammeter.
8.
Horns Fuse.
9. Horn
Relay.
10. Hom
Push.
11, Horns.
12. Starter
Motor.
13. Starter
Solenoid.
14,
Battery.
15. Lighting
Switch.
16.
Dip Switch.
1?.
High Beam
Indicator
LamP.
18. Headlamp
High
Beam,
R.H.
19.
Headlamp
High Beam,
L.H.
20. Headlamp
Dip
Beam, R.H.
21. Headlamp
Dip
Beam, L.H.
22. lnstrument
llluminalion
Rheostat
23. Fuse Unit.
24. Stop
Lamp
Switch
26.
Stop
Lamp,
R.H.
26. Stop
Lamp
L.H.
KEY
TO FIG.
56
27.
Ammeter and
Gauges
Illumination.
28. Voltage Stabilizer.
-
29. Healer
Blower
Moror
lOprional
Swrlcn
l-_'...
30. Heater
Blower
Motor
J
'^"-
31. Temperature
Indicator
Gauge.
32.
Temperature
Transmitter.
33. Fuel Gauge.
34. Tank
Unit.
15.
Speedometer
Illumination.
36. Tachometer
Illumination.
37.
Reversing
Lamp Switch
I Ootionat
38.
ReversinB
Lamp
i;"i;;'
19. Reversing
Lamp.
-J
""
-
40.
Parking Lamp
R.H.
41. Parking
Lanp
L.H.
42- Directi;n lndicator
R.H.
Front.
43,
Direction
Indicator
R.H. Front
Repeater.
44. Direction
Indicator
R.H.
Rear.
45.
Flasher Unit.
46. Direction
Indicator
Switch.
47. Direction
Indicator
L.H.
Front.
48. Direction
Indicator
L.H.
Front
Repeater.
49. Di;ection Indicator
L.H.
Rear.
50.
Flasher
Warning
LamP
51. Windshield
WiPer
Motor.
52.
Windshield
Wiper
Motor Switch
53.
Plate Illumination
LamP
L.H.
54. Tail Lamp
L.H.
55.
Plate Illumination
LamP
R.H.
56.
Tail Lamp
R.H.
FRANCE
ONLY
A1.
Fuse.
A4.
Switch.
A2. Horn
Relay.
,A5.
Horn
low note
Bl. Relav.
I ^. -.,r.
- -. -,lve
82. Solenoid. t^-.,^-
tr. iii",i"
b"",..'
iPl,'l::"
84.
Transmission
Switches.J
""
-"
CABLE
COI,OUR CODE
B.
Black.
U.
Blue.
N.
Brown.
G.
Green.
LG.
Light Green.
K. Pink.
P.
Purple.
R. Red.
W. white.
Y, Yellow.
