BODY\/vORK

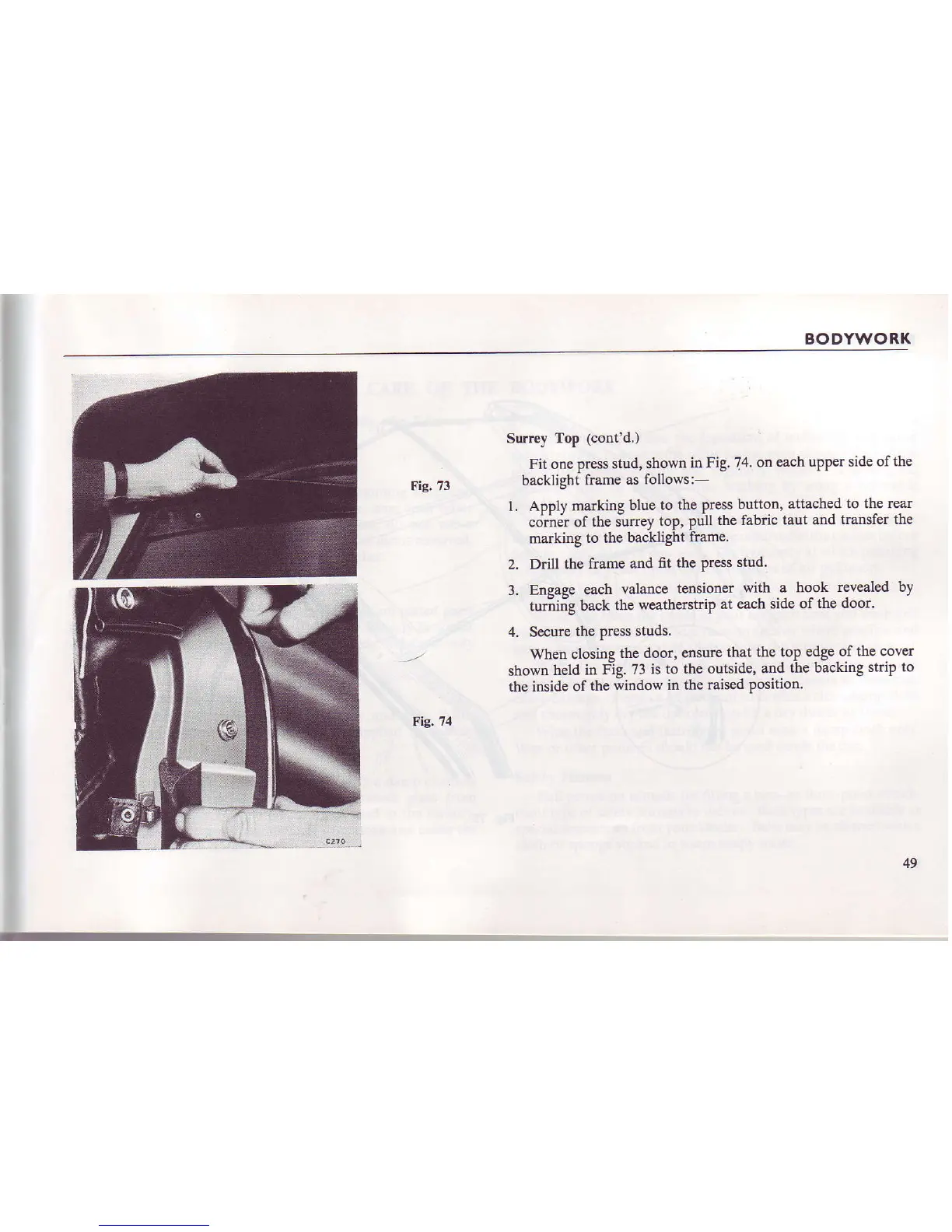

Fig. 73
Surrey Top
(cont'd,)
Fit one
press stud,
shown
in Fig.
74.
on
each uPPer
side ofthe
backlight
frame
as follows:-
l, ADDIV
markine
blue to
the
press
button,
attached lo rhe
rear
corirer of
the iurrey
top,
plill the fabric
taut and
rransfer lhe
marking
to the backlight
frame.
2.
Drill the
frame and
fit the press
stud.
3.
Engage each
valance
tensioner
wirh a hook
revealed by
turiin-g
back
the
weatberstriP at
each
side of the door'
4. Secure
the
press studs.
When closing
the door,
ensure
that the
toP edge of
the cover
shown
held in
Fie. 7l
is to the outside.
and
the backing
striP
to
the
inside of
the
;indow in
the raised
position'
Fig, ?4
49
