ELECTRICAL
SYSTEM
Front Dtuection
Indicator
Flashing
LanP6
(Fig.6l)
With
the aid
of a thin screwdriver
tuln back the
rubber and
remove
the
rim. This then
Permits
the glass
lens to be similarly
removed,
when le-assembling
the comPonents
fit the glass
lens
tust.
Repeater
Lanp
(Fig.
60)
Access
to the
bulb is
gained by removing the
retaining screw
and
disengaging
the lens from
the retaining
liP. Pull
out
the bulb.
Tail/Brake Stop
and Direction
hdicator FlashiDg
Llmps
(Fig.
63)
Remove
three screws
and lift off
the lans, which is in
two
sections,
to gain access
to the
bulbs. The pins
on the tail/brake
stop lamp bulb
are offset and
cannot be fitted
incorectly.
Parking Lamps
(Fig.
62)
Twist
the lens counter-clockwise
and
withdlaw
the lamp
front to gain access
to the bulb.
Plate llumination
Lamps
(Fig.
64)
Remove
the two screws
securing
the rim and
cowl to
the
over-rider,
withdraw
the lamP
aPproximately
2" and
rcnew
the
bulb.
Battery
Keep the
terminals clean
and
well covered
with
Petroleum
ielly
to
prevent
corrosion.
lf
rhe terminals
become corroded
'scripe
them clean
and coat
with
petroleum
jelly

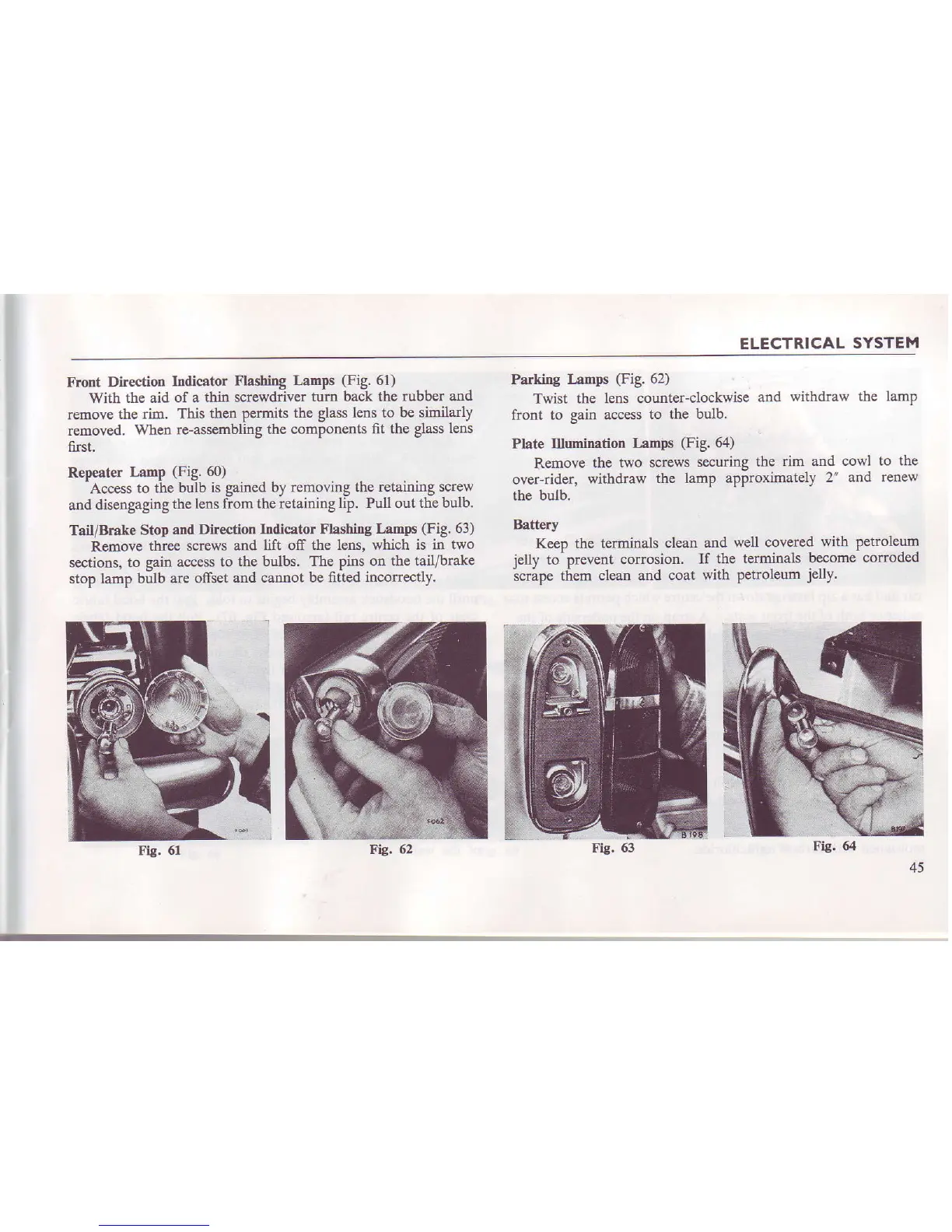

Fk. 61
