Battery
B
A
C
D

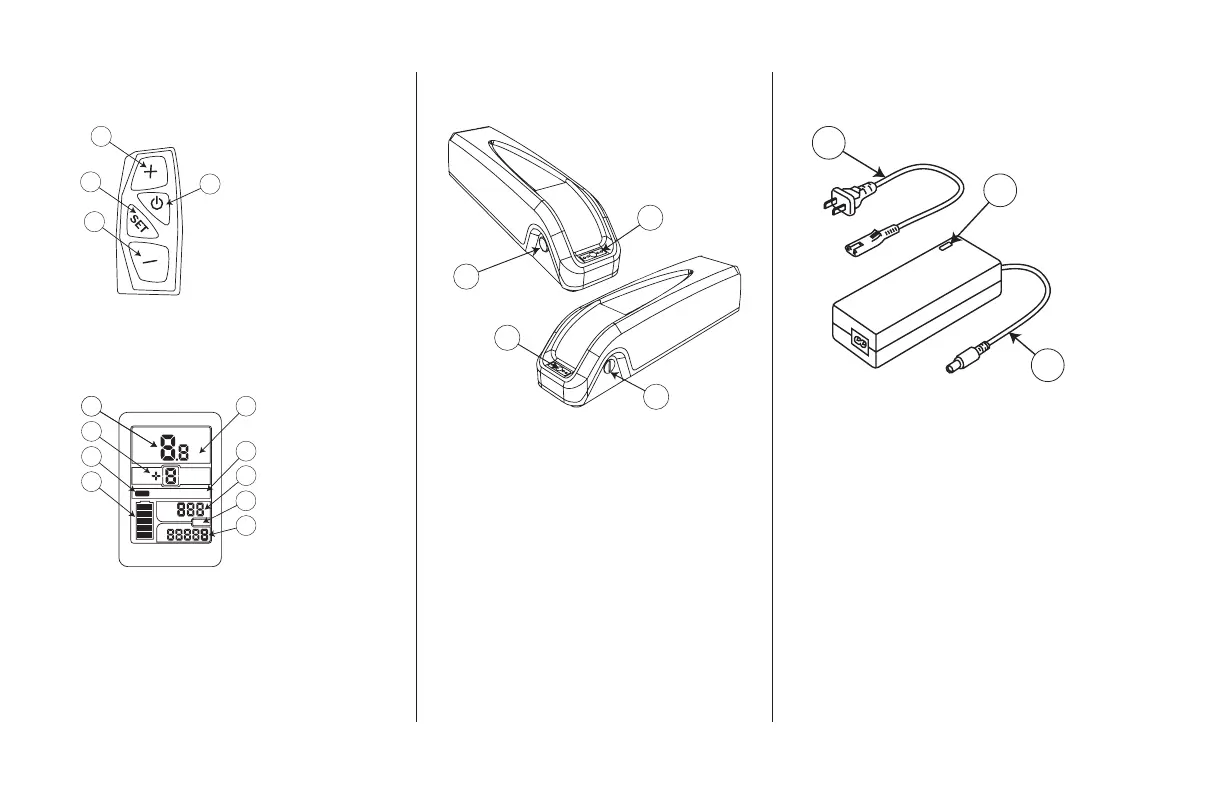

A. Battery level check button
B. LED battery level indicator
C. Charging port
D. Key lock
Type: Lithium-Ion,
Quick charge Rated Voltage: 48V
Current: 10.4A
Capacity: 500Wh
Operating temperature: 0°C to 30°C (32°F to 86°F)
Storing temperature range: 10°C to 25°C
(50°F to 77°C)
Controller
A. Upbutton
B. Power button
C. Setting/Mode button
D. Down button
LCD Panel
A. Current speed
B. Current power
assist mode
C. Current mode
D. Battery charge
level
E. Speed unit
F. System status
G. Trip distance
H. Odometer unit
I. Odometer
Charger unit
A
B
C
A. AC Power cord
B. Charger status LED indicator
C. Charging plug
A
C
D
B
MODE
POWER
KM/H
ODO
TRIP
KM
A
B
C
D
A
E
F
G
H
I
