22L
21
7
21
1
22R
7
39
7
36
8L
39
53
36
53
7
8R
6L
14
15
42
2
70
5
62
2
62
70
1569-7

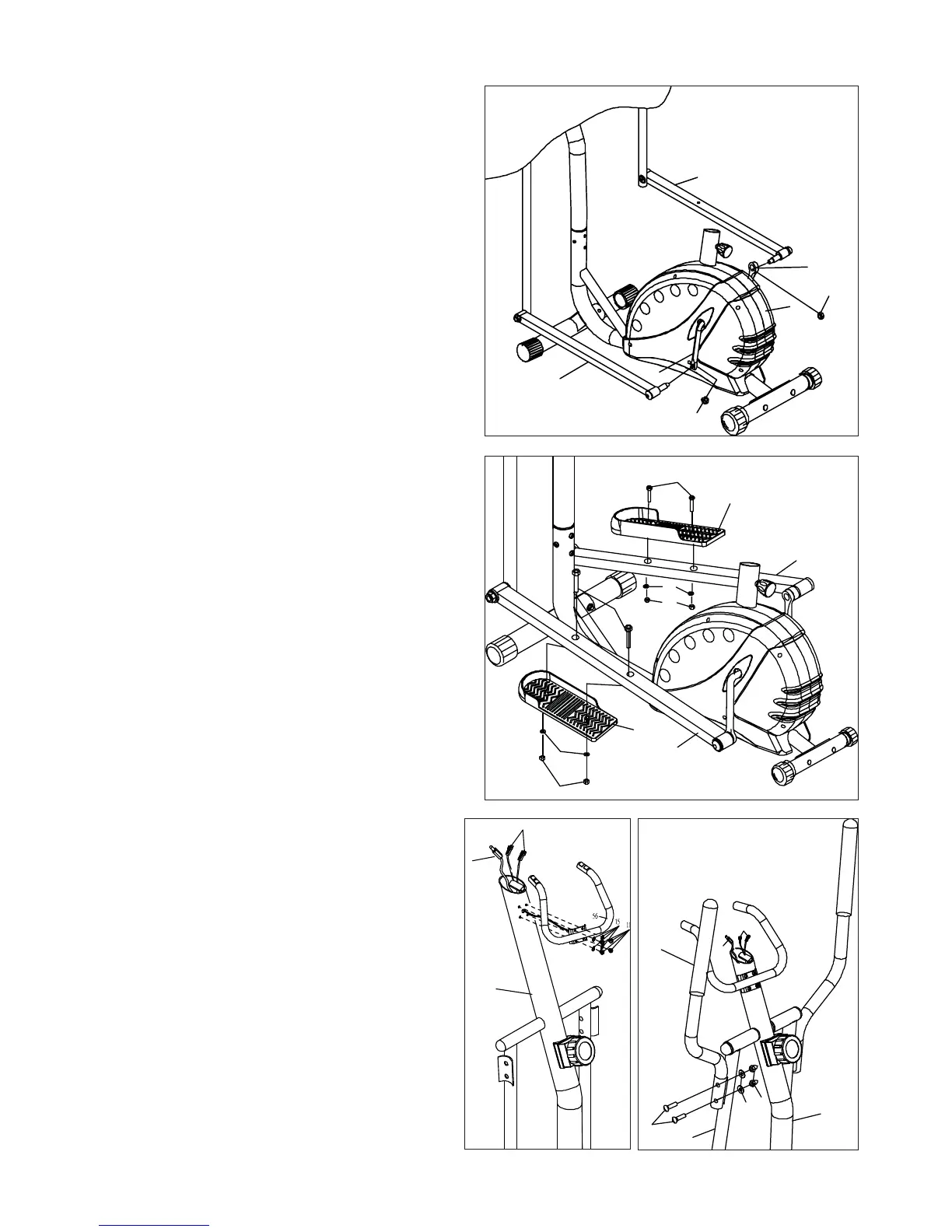

STEP 04
• Attach both Pedal Tubes (7) to the Cranks (21) with
Nylon Nuts (22L and 22R)
STEP 05
• Connect the Pedals (8L and 8R) onto the Pedal Tubes (7)
with Nylon Nuts (39), Washers (36), and Hex Head Bolts
(3/8” x 45mm) (53).
• Each Pedal is marked “ L” for left side and “R” for right
side.
ASSEMBLY STEP
STEP 06
6.1.
• Insert the Pulse Wires (70) into the bigger hole on the
Upright Tube (2) and pull them out from the top of the
Upright Tube (2).
• Then attach the U-Style Bar (56) onto the Tube (2) and
attach it with Screws (11) and Washers (15)
6.2
• Attach both Handlebars (5) onto the axles of the
Handlebar Post (2) and attach with Carriage Bolts (42),
Washers (15) and Nylon Nuts (14).
6.1 6.2
CAUTION:
Ensure that cables are not damaged
during assembly or when tightening screws.
