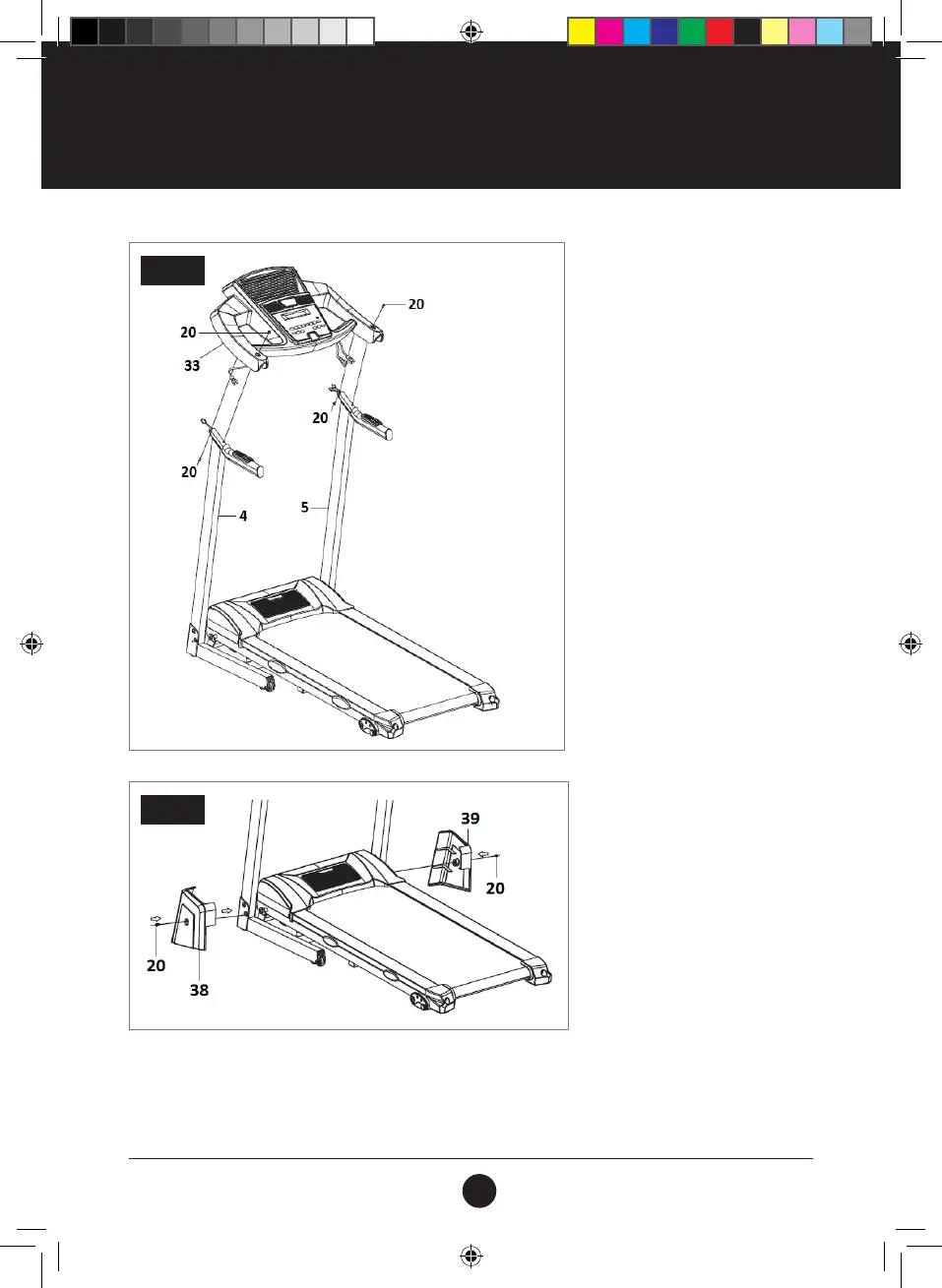

ASSEMBLY STEPS
STEP 3:
Connect the Cable from the Console
Set (33) to the Cable from the Left
Upright (4) and the Cable from the
Right Upright (5).
Using the Screwdriver (A) fasten the
Console Set (33) to the Left Upright (4)
using 2 Bolts (M5x12) (20).
Using the Screwdriver (A), fasten the
Console Set (33) to the Right Upright
(5) using 2 Bolts (M5x12) (20).
STEP 3
STEP 4:
Install the Base Cover Left (38)
using the Screwdriver (A) and Bolt
(M5x12) (20).
Install the Base Cover Right (39)
using the Screwdriver (A) and Bolt
(M5x12) (20).
STEP 4
