Trojan TR105 - Assembly Steps; 1. Preparation

10
STEP1
ASSEMBLY STEPS
1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling, please check whether all the required parts have been supplied as per the exploded
drawing on the opposite page.

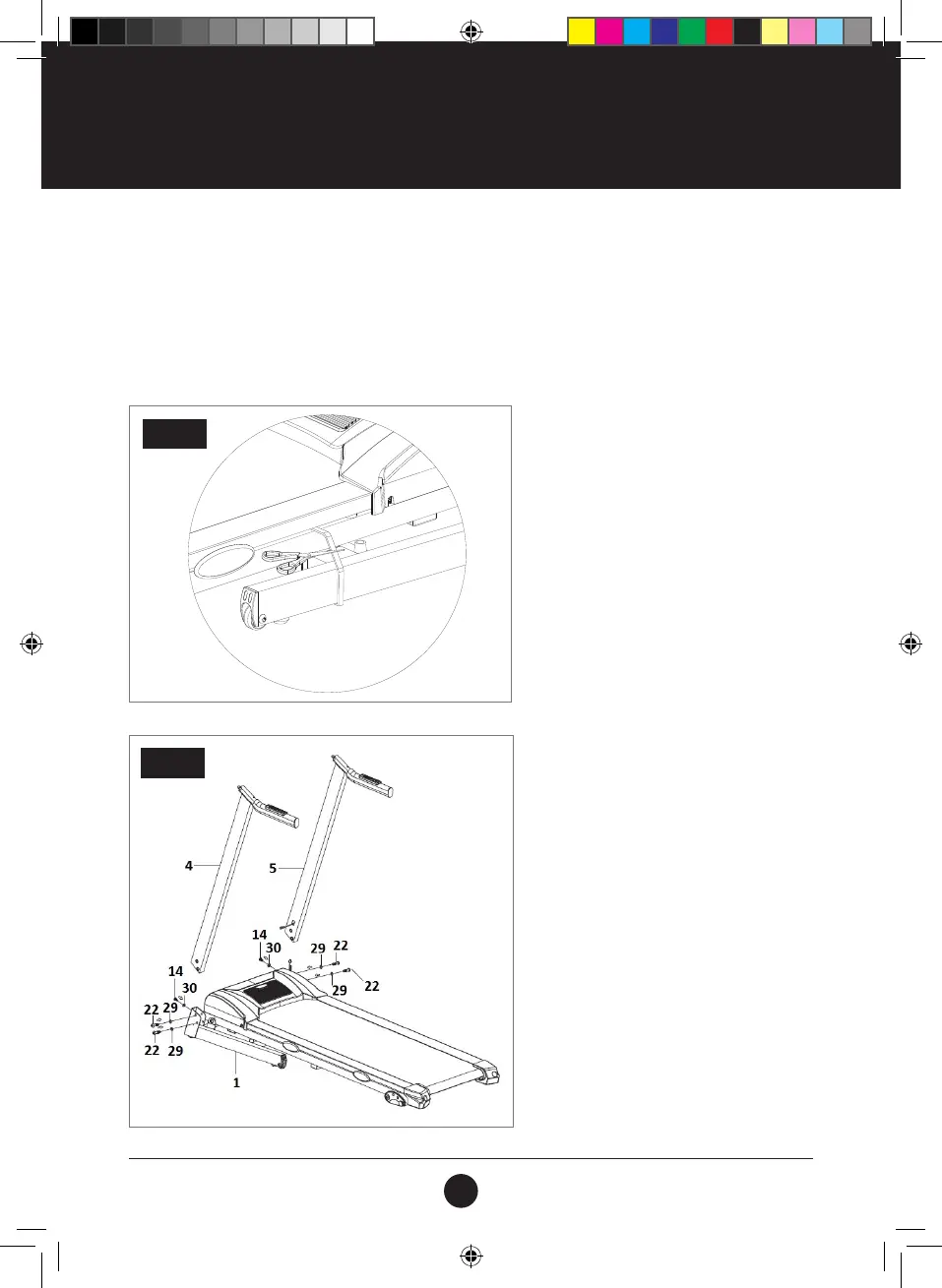

STEP 1:
Open the carton, remove all the
parts and place the Base (1) on a
level surface.
Cut the strap that is tied around the
Base (1) as indicated in the diagram.
STEP 2:
Connect the cable on the Base (1) with the cable
on Right Upright (5).
Insert the Left Upright (4) into the Base (1), use
2 Bolts (M10x45) (22), 2 Washers M10 (29) and
Wrench 5# (C) to fasten the Left Upright (4)
to the Base (1).
Insert the Right Upright (5) into the Base (1), use
2 Bolts (M10x45) (22), 2 Washers M10 (29) and
Wrench 5# (C) to fasten the Right Upright (5)
to the Base (1).
Use Bolt (M8x15) (14), Washer M8 (30) and
Wrench 5# (C) to fasten the Left Upright (4)
to the Base (1).
Use Bolt (M8x15) (14), Washer M8 (30) and
Wrench 5# (C) to fasten the Right Upright (5)
to the Base (1).
STEP 1
STEP 2
