PRE ASSEMBLY CHECK LIST
Thank you for choosing the Trojan TR 500 Treadmill. We take great pride in producing this product and hope it
will provide many hours of quality exercise to make you feel better, look better and enjoy life to its fullest. Yes,
it’s a proven fact that a regular exercise program can improve your physical and mental health. Too often, our
busy lifestyles limit our time and opportunity to exercise. The Trojan TR 500 Treadmill provides a convenient
and simple method to begin your assault on getting your body in shape and achieving a healthier lifestyle.

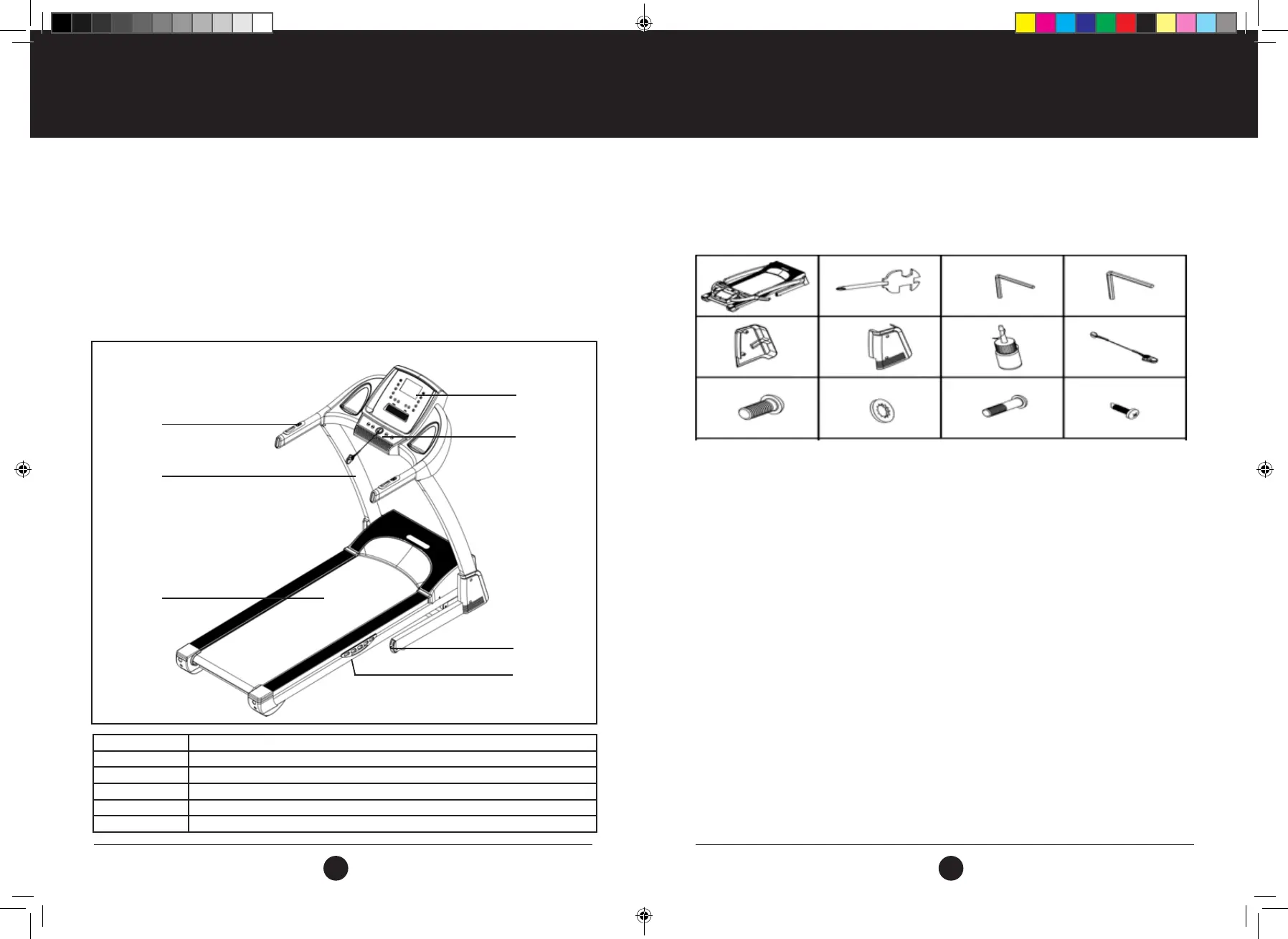

Before reading further, please review the drawing below and familiarise yourself with the parts that are labelled.
Read this manual carefully before using the Trojan TR 500 Treadmill.
Locking Pin
Wheel
Console
Running
Belt
Hand Pulse
Upright
Safety Key
Features FitShow Capability and Bluetooth Audio Enabled, Auto incline
Running Deck 1250 mm (l) x 450 mm (w)
Set-up Size 1609 mm (l) x 748 mm (w) x 1319 mm (h)
User Weight 120 Kg (maximum)
Speed 1 - 16 Km/h
Programs Time, Speed, Distance, Calories, Pulse, Program, Incline
HARDWARE & TOOLS LIST
INSTRUCTIONS FOR ASSEMBLY
• Before you start to assemble, please check the hardware packaging to make sure all parts are included.
• Basic tools, such as spanners will be provided for assembly.
Main Frame
1 PC
Left Base
Cover
1 PC
Right Base
Cover
1 PC
Oil Bottle
1 PC
Safety Key
1 PC
Bolt
10 PCS
Bolt
4 PCS
Bolt
15 PCS
Lock Washer
17 PCS
Wrench with screw driver
1 PC
Allen Key
1 PC
Allen Key
1 PC
1
12
13 14
26
51
27
64
46
70
49
83
