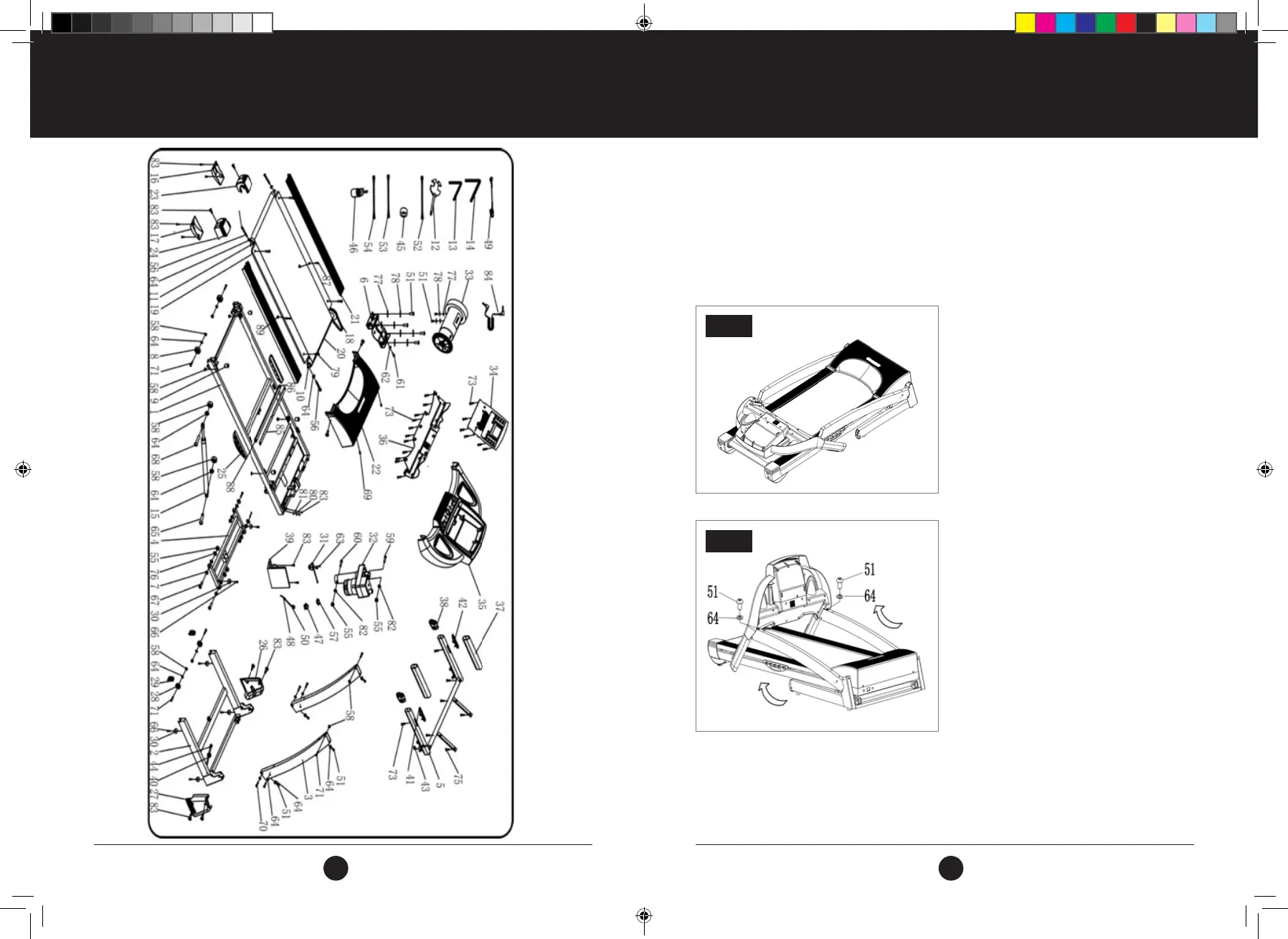

EXPLODED DRAWING
ASSEMBLY STEPS
1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling please check whether all the required parts have been supplied as per the exploded
drawing on the opposite page.
STEP 1
STEP 1:
Open the carton, remove all the parts and place the
Main Frame (1) on level ground.
STEP 2:
Lift the Computer frame upwards. Using 5# Allen
key (13), Bolt (51) and Lock Washer (64), secure the
Computer Frame on the Right and Left Uprights.
Note: Do not squash the wires inside the tube.
Ensure that wires are connected. When locking the
Bolts, please hold the upright tubes, to avoid them
from falling down.
STEP 2
