ASSEMBLY STEPS
1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling please check whether all the required parts have been supplied as per the exploded
drawing on the opposite page.

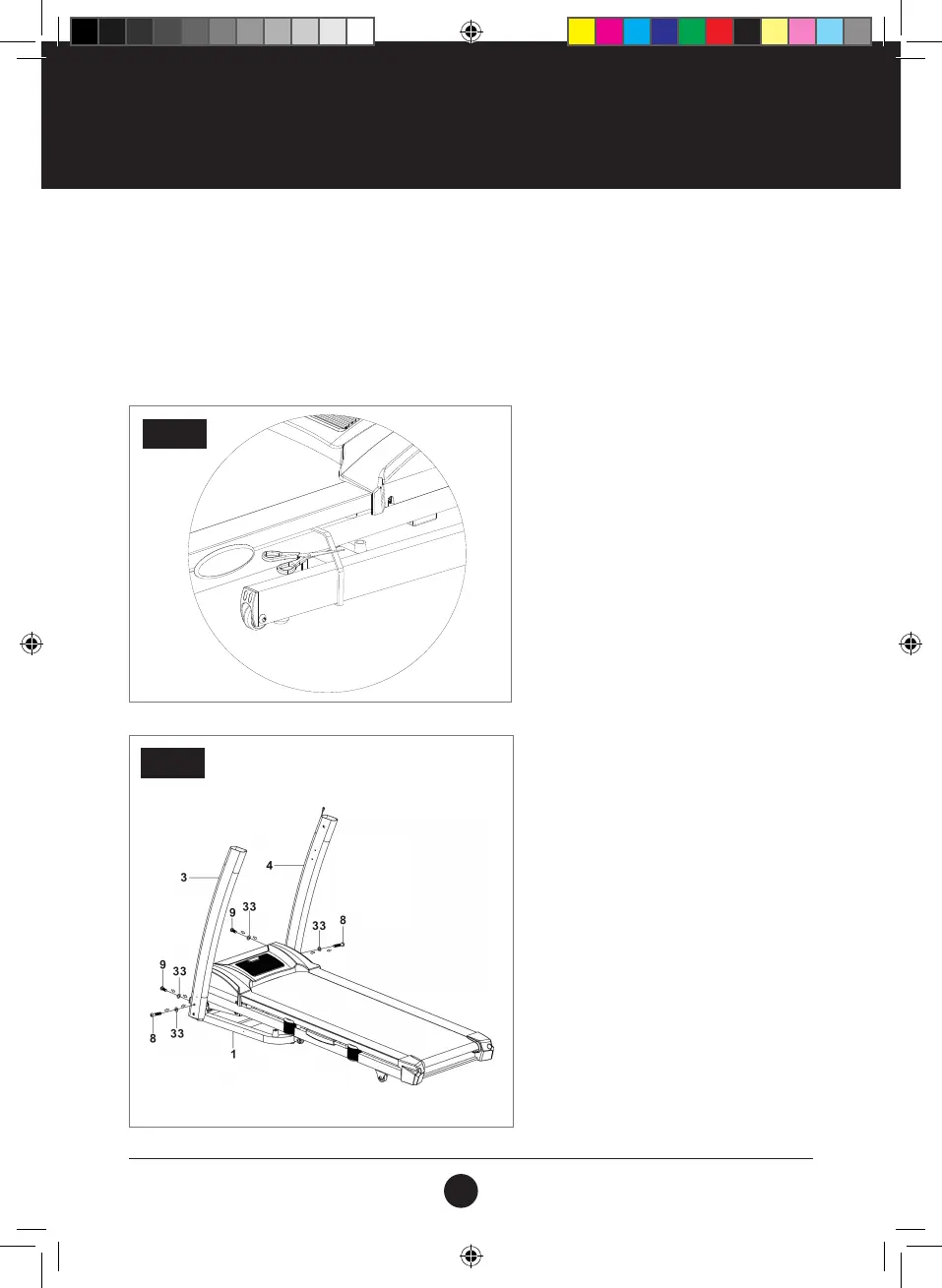

STEP1
STEP 1:
Open the carton, remove all the
parts and place the Base (1) on a
level surface.
Cut the strap that is tied around the
Base (1) as indicated in the diagram.
STEP 2:
Lift the Right upright (4) and use the #6 Wrench
to fasten the Right Upright (4) to the
Main Frame (1) using 1 Bolt (M10 x 50) (8),
1 Bolt (M10 x 20) (9) and 2 Washers (M10) (33).
Lift the Left upright (2) and use the #6 Wrench
to fasten the Left Upright (3) to the
Main frame (1) using 1 Bolt (M10 x 50) (8),
1 Bolt (M10 x 20) (9) and 2 Washers (M10) (33).
STEP 1
STEP 2
