TrolMaster Aqua-X NFS-1 User Manual

Aqua
Aqua
Cannot connect to the network.
Please make sure that the network path is
workable (you can check whether the network
cable is workable to any Internet-connected device).
The microSD card is damaged.
Please do not pull out the microSD card on the
main interface (displaying current temperature,
pH, EC values).

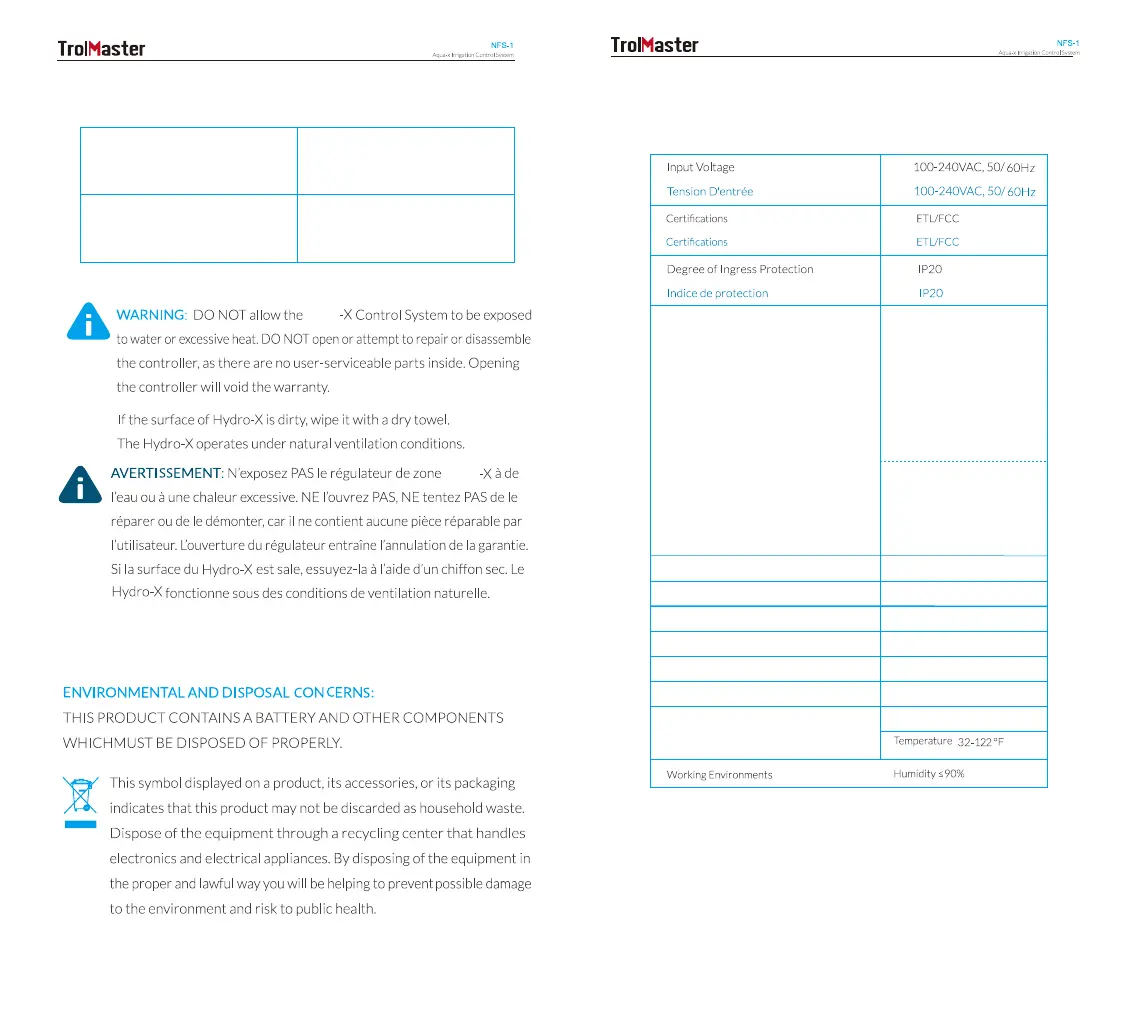

SPECIFICATIONS
OA6-24 24V Control Board:
OA6-110 110V Control Board:
DSP-1 Program Device Station:
Max. 5pcs per set
Max. 5pcs per set
Max. 5pcs per set
Remarks: combined application is available for 24V Control Board
(6 outputs each), 110V Control Board (6 outputs each) and Program
Device Station (1 output each) but control up to 30 outputs per set.
pH Alarm Setpoint Range 0~14
EC Alarm Setpoint Range 0~5
Temp Alarm Setpoint Range 32°- 122°F
pH Alarm Default Value 5~7
EC Alarm Default Value 1~2.5
Temp Alarm Default Value 63°- 70°F
Max Distance to Device to be connected
1000 meters
Note: combination application
is workable for the three
components, but the total qty
can not exceed 5pcs.
WD-1 Water Detector : Max. 30pcs per set
AMP-2 Sensor Board:
PCT-1 or PCT-2 EC/Temp Sensor:
PPH-1 or PPH-2 pH Sensor:
Max. 1pc per set
Max. 1pc per set
Max. 1pc per set
36 37

TrolMaster Aqua-X NFS-1 Specifications

Control Boards

OA6-24 Control Board	Max. 5pcs per set
OA6-110 Control Board	Max. 5pcs per set
DSP-1 Program Device Station	Max. 5pcs per set

Sensors

AMP-2 Sensor Board	Max. 1pc per set
PCT-1 or PCT-2 EC/Temp Sensor	Max. 1pc per set
PPH-1 or PPH-2 pH Sensor	Max. 1pc per set
WD-1 Water Detector	Max. 30pcs per set

Alarm Setpoints

pH Alarm Setpoint Range	0~14
EC Alarm Setpoint Range	0~5
Temp Alarm Setpoint Range	32°- 122°F
pH Alarm Default Value	5~7
EC Alarm Default Value	1~2.5
Temp Alarm Default Value	63°- 70°F

Connectivity

Max Distance to Device to be connected	1000 meters
Control Board Outputs	24V Control Board (6 outputs each), 110V Control Board (6 outputs each), Program Device Station (1 output each), up to 30 outputs per set
