TrolMaster Aqua-X NFS-1 User Manual

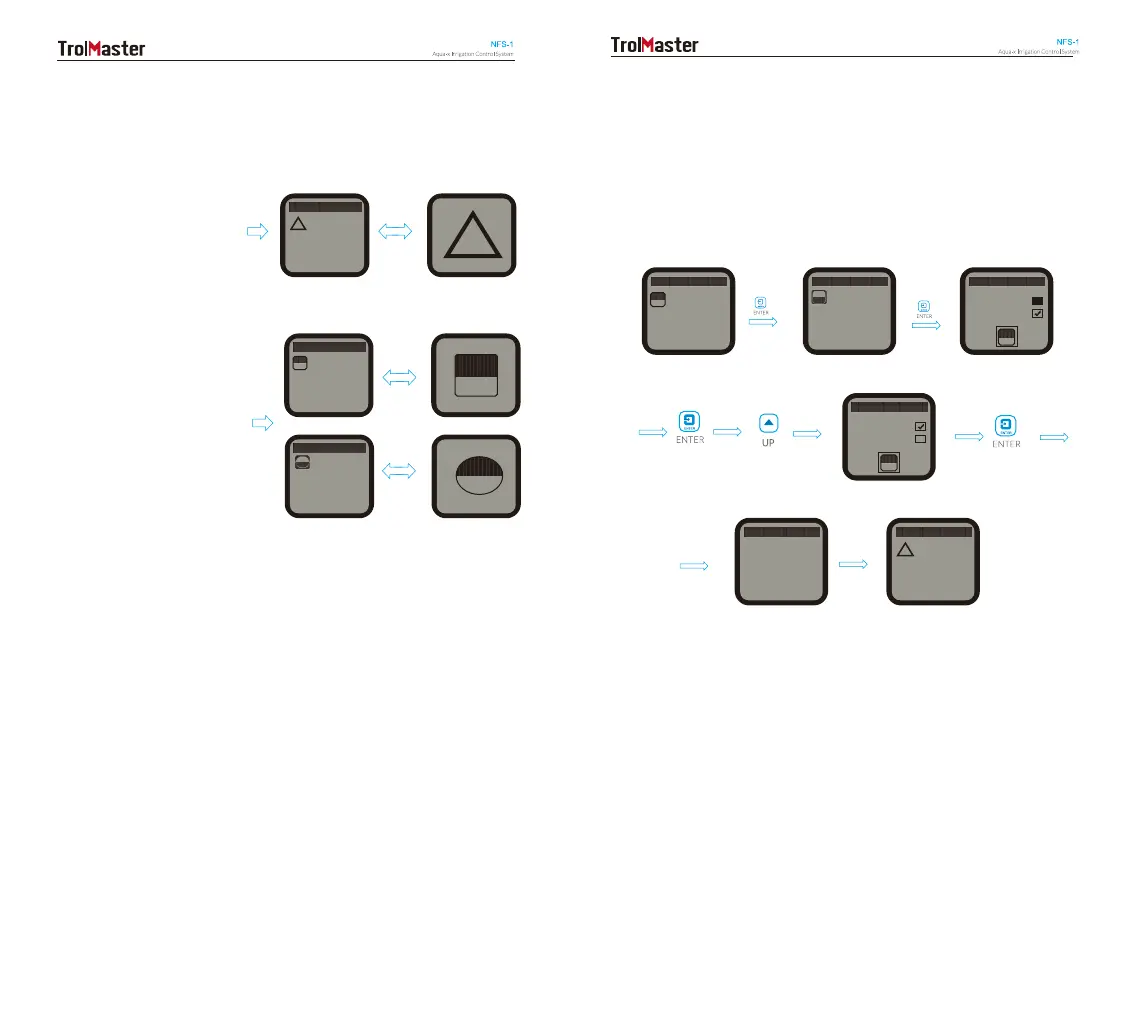

WATER DETECTOR SETTING
Wate r D ete cto r
1
1
Wate r D ete cto r
110 V
A1
110 V
A1
Wate r D ete cto r
A1
24 V
Aqua-x Controller Water Detector
Leak Sensor
(Leak Detection Mode)
Assignment
(Output Assigned Mode)
24 V
A1
Wate r D ete cto r Wate r D ete cto r
110 V
A1
Detector 1
a.Leak Sensor (Leak Detection Mode)
The default function of Water Detector (WD-1) is to do leak detection
and the symbol is a triangle shown in the Aqua-X Controller. When
WD-1 detects water leakage, it will send alarm message to your
Smartphone one minute later. You can also check the alarm message
in the Aqua-X Controller.
110 V
A1
Leak Sensor
Assignment
110 V
A1
Detector 1
Leak Sensor
Assignment
110 V
A1
Wate r D ete cto r
1
Detector 1
Setting saved
Assignment converted into Leak Sensor
If the Water Detector is NOT in original default function (leak sensor),
you can change the Assignment into Leak Sensor as above processes.
20 21

TrolMaster Aqua-X NFS-1 Specifications

Control Boards

OA6-24 Control Board	Max. 5pcs per set
OA6-110 Control Board	Max. 5pcs per set
DSP-1 Program Device Station	Max. 5pcs per set

Sensors

AMP-2 Sensor Board	Max. 1pc per set
PCT-1 or PCT-2 EC/Temp Sensor	Max. 1pc per set
PPH-1 or PPH-2 pH Sensor	Max. 1pc per set
WD-1 Water Detector	Max. 30pcs per set

Alarm Setpoints

pH Alarm Setpoint Range	0~14
EC Alarm Setpoint Range	0~5
Temp Alarm Setpoint Range	32°- 122°F
pH Alarm Default Value	5~7
EC Alarm Default Value	1~2.5
Temp Alarm Default Value	63°- 70°F

Connectivity

Max Distance to Device to be connected	1000 meters
Control Board Outputs	24V Control Board (6 outputs each), 110V Control Board (6 outputs each), Program Device Station (1 output each), up to 30 outputs per set
