TrolMaster Aqua-X NFS-1 User Manual

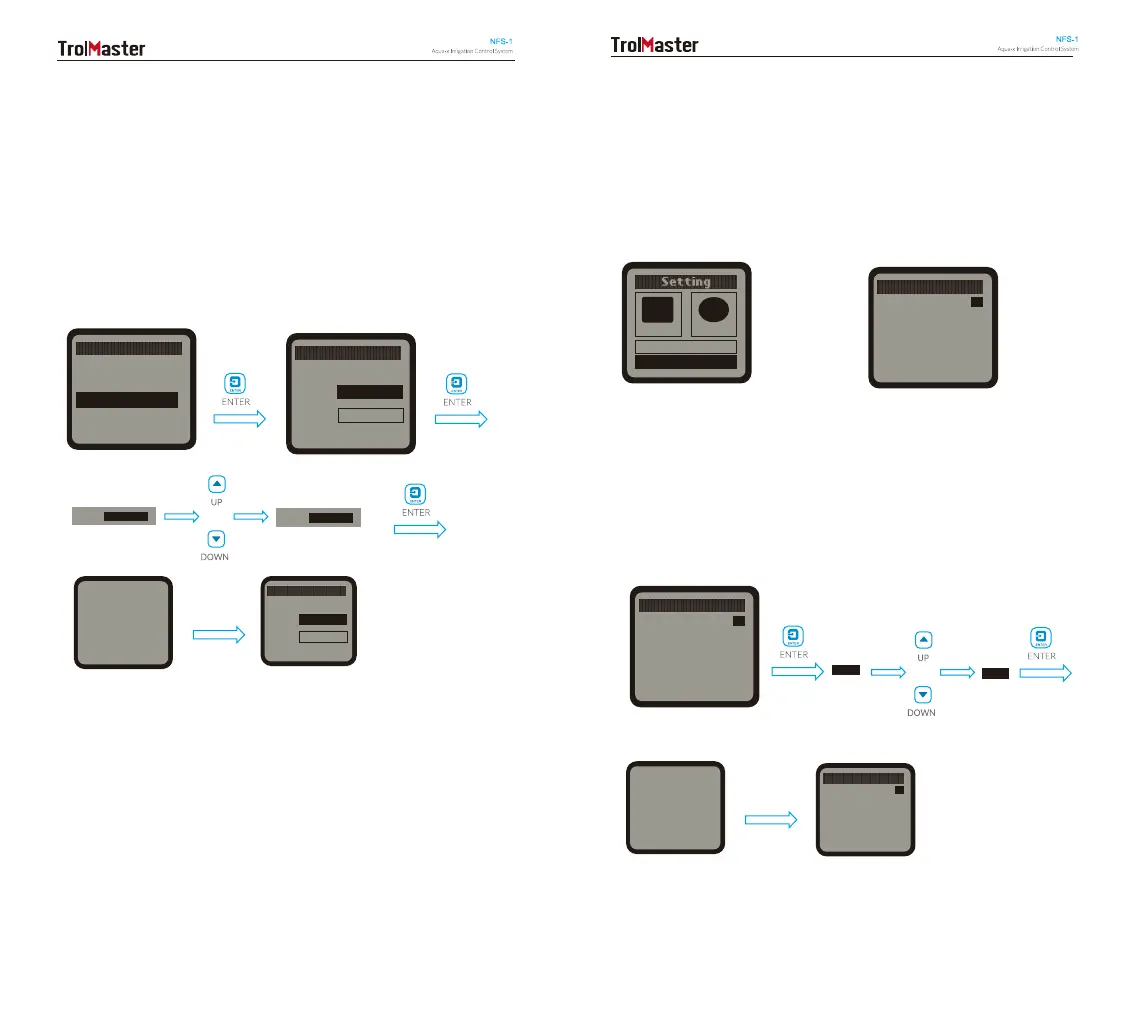

SYSTEM SETTING
On the Setting page, press DOWN button to select the System Setting.
Press ENTER button and the LCD screen will display five Settings for
selection: Temp Format, Time Setting and Serial Number, System Reset,
Calibration. User can press UP button or DOWN button to select
anyone of them for setting.
110V
Board Board
Board
24V
Alarm Setting
System Setting
Board
System
Temp Format
Time Setting
Serial Number
System Reset
Calibration
Eme rge ncy Sto p
F
Board
Sys tem
Temp Format
Time Setting
Serial N umber
System Reset
Calibration
Em erg ency Sto p
C
Board
System
Temp Format
Time Setting
Serial Number
System Reset
Calibration
Eme rge ncy Sto p
F
F
C
a.Temp Format:
When the Temp Format is selected, press the ENTER button and the
temperature symbol F or C will be highlighted and blinking. Press UP
or DOWN button to convert the temperature format between F and
C. Finally, press ENTER button to confirm and save the change. The
LCD screen will display “Setting saved”.
or
Setting saved
Setting saved
Board
Alarm Setting
EC Alarm
Temp Alarm
pH Alarm
Board
pH Setting
MIN : 5.0 F
MAX : 7.0 F
Board
pH Setting
MIN : 5.5
MAX : 7.0
MIN : 5.0
MIN : 5.5
or
User can also press DOWN button to select the MAX value directly
for change if keeps unchanged for the MIN value. The setting of MAX
value is similar to setting of MIN value.
c. pH Alarm:
When the pH Alarm is selected, press the ENTER button to enter the
pH Alarm setting page. The LCD screen will display the MIN value and
MAX value. Press ENTER button to activate the setting page and the
MIN value will be highlighted and blinking. Press UP button or DOWN
button to change the MIN value, then press the ENTER button to
confirm and save the change. The LCD screen will show “Setting saved”.
Blinking
Blinking
26 27

TrolMaster Aqua-X NFS-1 Specifications

Control Boards

OA6-24 Control Board	Max. 5pcs per set
OA6-110 Control Board	Max. 5pcs per set
DSP-1 Program Device Station	Max. 5pcs per set

Sensors

AMP-2 Sensor Board	Max. 1pc per set
PCT-1 or PCT-2 EC/Temp Sensor	Max. 1pc per set
PPH-1 or PPH-2 pH Sensor	Max. 1pc per set
WD-1 Water Detector	Max. 30pcs per set

Alarm Setpoints

pH Alarm Setpoint Range	0~14
EC Alarm Setpoint Range	0~5
Temp Alarm Setpoint Range	32°- 122°F
pH Alarm Default Value	5~7
EC Alarm Default Value	1~2.5
Temp Alarm Default Value	63°- 70°F

Connectivity

Max Distance to Device to be connected	1000 meters
Control Board Outputs	24V Control Board (6 outputs each), 110V Control Board (6 outputs each), Program Device Station (1 output each), up to 30 outputs per set
