TrolMaster Aqua-X NFS-1 User Manual

Setting saved
Board
Alarm Setting
EC Alarm
Temp Alarm
pH Alarm
Board
EC Setting
a.EC Alarm:
When the EC Alarm is selected, press ENTER button to enter the EC
Alarm setting page. The LCD screen will display the MIN value and MAX
value. Press ENTER button to activate the setting page and the MIN
value will be highlighted and blinking. Press UP button or DOWN button
to change the MIN value, then press the ENTER button to confirm and
save the change. The LCD screen will show “Setting saved”.
MIN : 1.0
MAX : 2.5
Board
EC Setting
MIN : 1.0
MAX : 2.5
MIN : 1.0
MIN : 1.2
or
Blinking
User can also press DOWN button to select the MAX value directly
for change if keeps unchanged for the MIN value. The setting of MAX
value is similar to setting of MIN value.
b.Temp Alarm:
When the Temp Alarm is selected, press the ENTER button to enter
the Temp Alarm setting page. The LCD screen will display the MIN
value and MAX value. Press ENTER button to activate the setting page
and the MIN value will be highlighted and blinking. Press UP button
or DOWN button to change the MIN value, then press the ENTER
button to confirm and save the change. The LCD screen will show
“Setting saved”.
Setting saved
Board
Alarm Setting
EC Alarm
Temp Alarm
pH Alarm
Board
Temp Setting
MIN : 60 F
MAX : 90 F
Board
Temp Setting
MIN : 62 F
MAX : 90 F
MIN : 60 F
MIN : 62 F
or
User can also press the DOWN button to select the MAX value directly
for change if keeps unchanged for the MIN value. The setting of MAX
value is similar to setting of MIN value.
Blinking

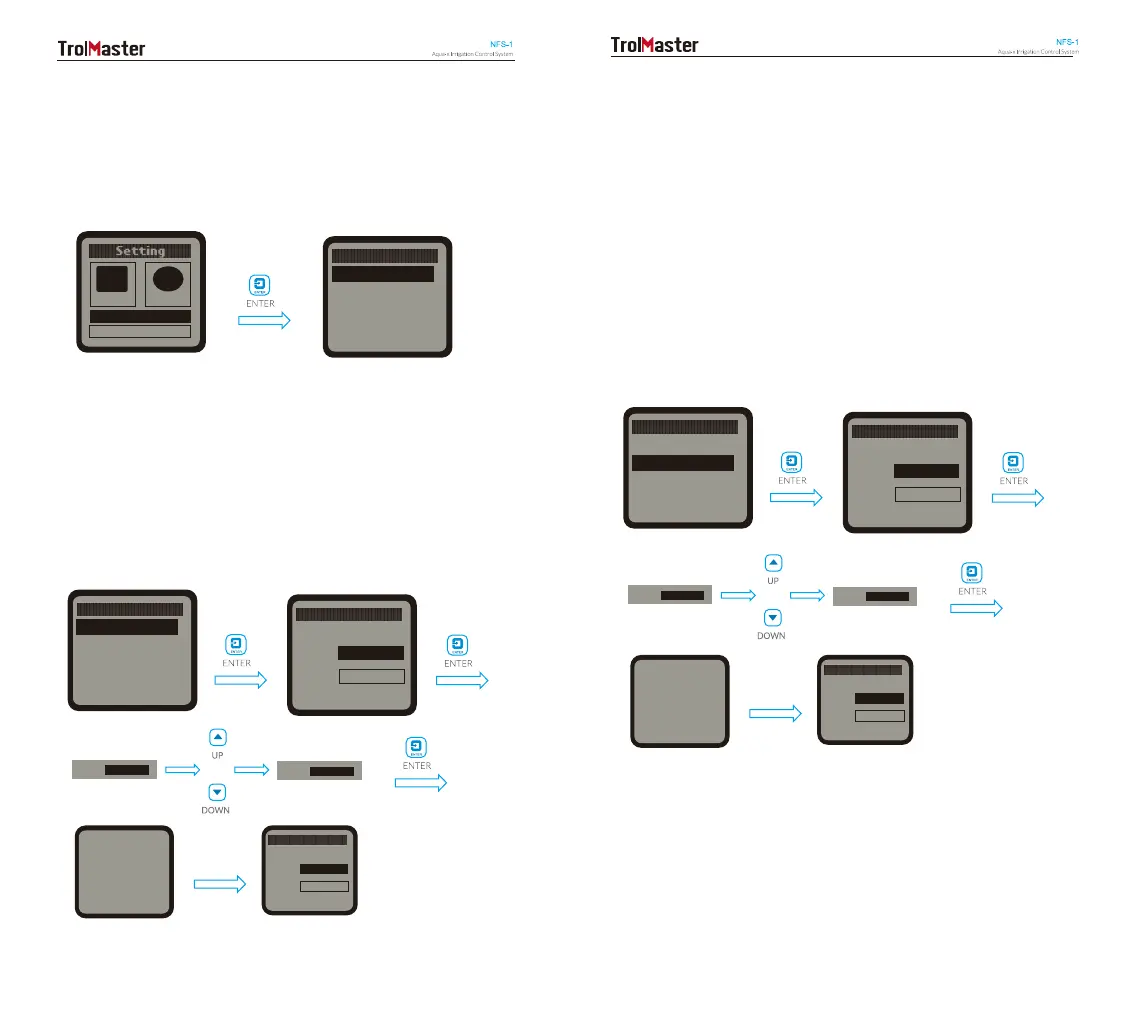

ALARM SETTING
On the Setting page, press DOWN button to select the Alarm Setting. Press ENTER
button and the LCD screen will display three Settings for selection: EC Alarm,
Temp Alarm and pH Alarm. User can press UP button or DOWN button to select
anyone of them for setting.
110V
Board Board
Board
24V
Alarm Setting
System Setting
Board
Alarm Setting
EC Alarm
Temp Alarm
pH Alarm
24 25

TrolMaster Aqua-X NFS-1 Specifications

Control Boards

OA6-24 Control Board	Max. 5pcs per set
OA6-110 Control Board	Max. 5pcs per set
DSP-1 Program Device Station	Max. 5pcs per set

Sensors

AMP-2 Sensor Board	Max. 1pc per set
PCT-1 or PCT-2 EC/Temp Sensor	Max. 1pc per set
PPH-1 or PPH-2 pH Sensor	Max. 1pc per set
WD-1 Water Detector	Max. 30pcs per set

Alarm Setpoints

pH Alarm Setpoint Range	0~14
EC Alarm Setpoint Range	0~5
Temp Alarm Setpoint Range	32°- 122°F
pH Alarm Default Value	5~7
EC Alarm Default Value	1~2.5
Temp Alarm Default Value	63°- 70°F

Connectivity

Max Distance to Device to be connected	1000 meters
Control Board Outputs	24V Control Board (6 outputs each), 110V Control Board (6 outputs each), Program Device Station (1 output each), up to 30 outputs per set
