FACTS
Here are some important things to consider when using the Aqua-X
Irrigation Controller .
Each set of Aqua-X Irrigation Controller can connect up to 30 outputs
(24V or 110V) and monitor the pH value, EC value and water
temperature of nutrient.
There are two RJ12 ports for the Control Board. One is for 24V
Control Board (6 individually controlled 24V outputs for solenoid
valves), the other is 110V Control Board (6 individually controlled
110V outputs for water pumps). The maximum number of connections
to the Aqua-X is 5 pieces for either 24V Control Board or 110V
Control Board. The Program Device Station (DSP-1 from Hydro
System) is also compatible to the Aqua-X through the 110V CONTROL
port. 24V Control Board (6 outputs each), 110V Control Board (6
outputs each) and Program Device Station (1 output each) can be
used together but each Aqua-X can only control up to 30 outputs.
The Water Detector port looks identical to the Control Board port.
Make sure not to mix them up. The Water Detector port is positioned
between the Sensor Board port Micro SD slot.
pH Sensor and EC/Temp Sensor should be connected to Sensor
Board (AMP-2) and then connect the Sensor Board to the Aqua-X
with a mini-DIN cable.
A maximum distance of 1000ft / 300 meters between the NFS-1
Irrigation Controller and the devices to be controlled.
Follow all local and national electrical codes for installation
requirements.

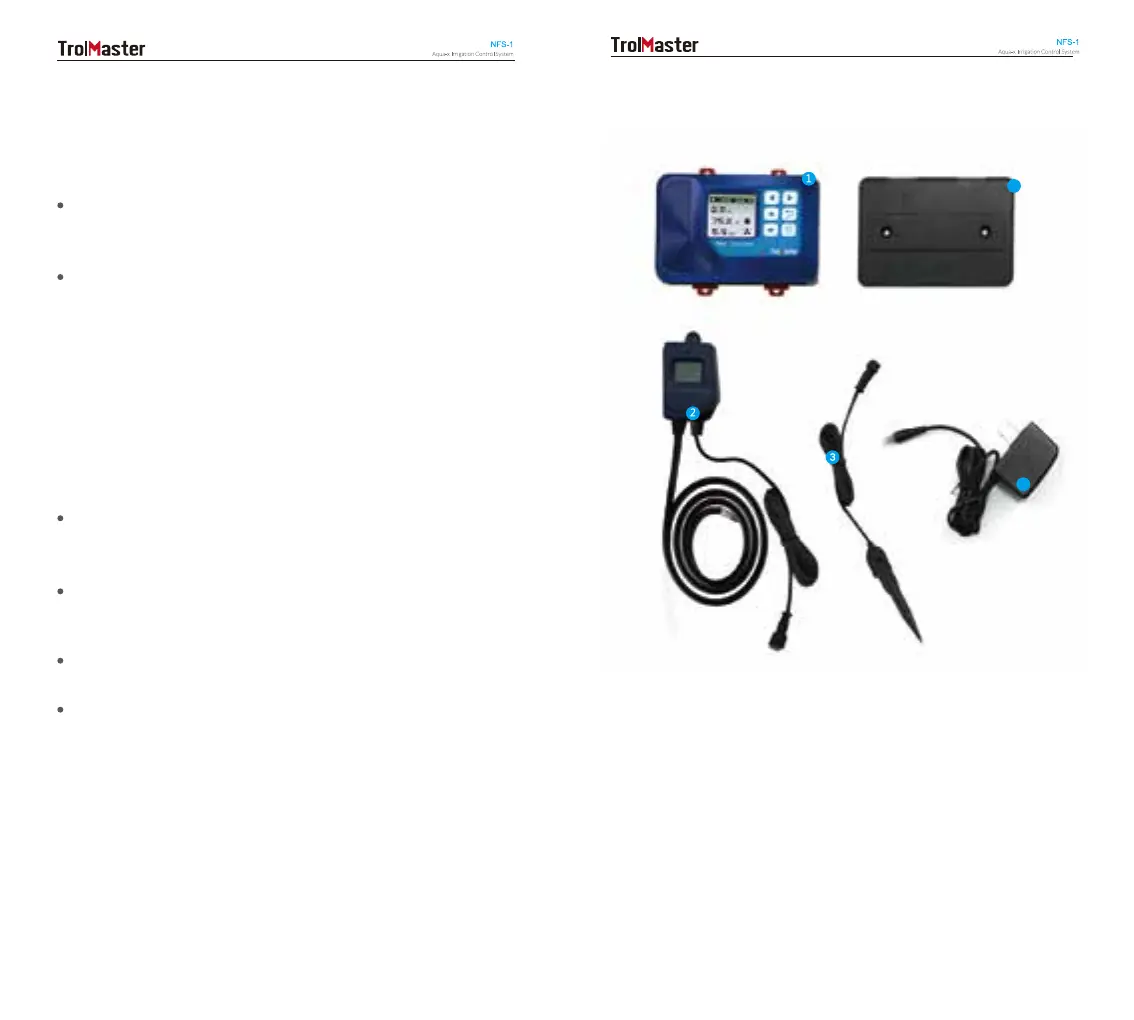

COMPONENTS
1 . Aqua-X Controller (NFS-1)
2 . Water Detector (WD-1)
3 . Water Touch Spot
4 . Back Plate (Bracket)
5 . 12 VDC Power Supply
