TRONXY D01 - Page 8

5
6
6

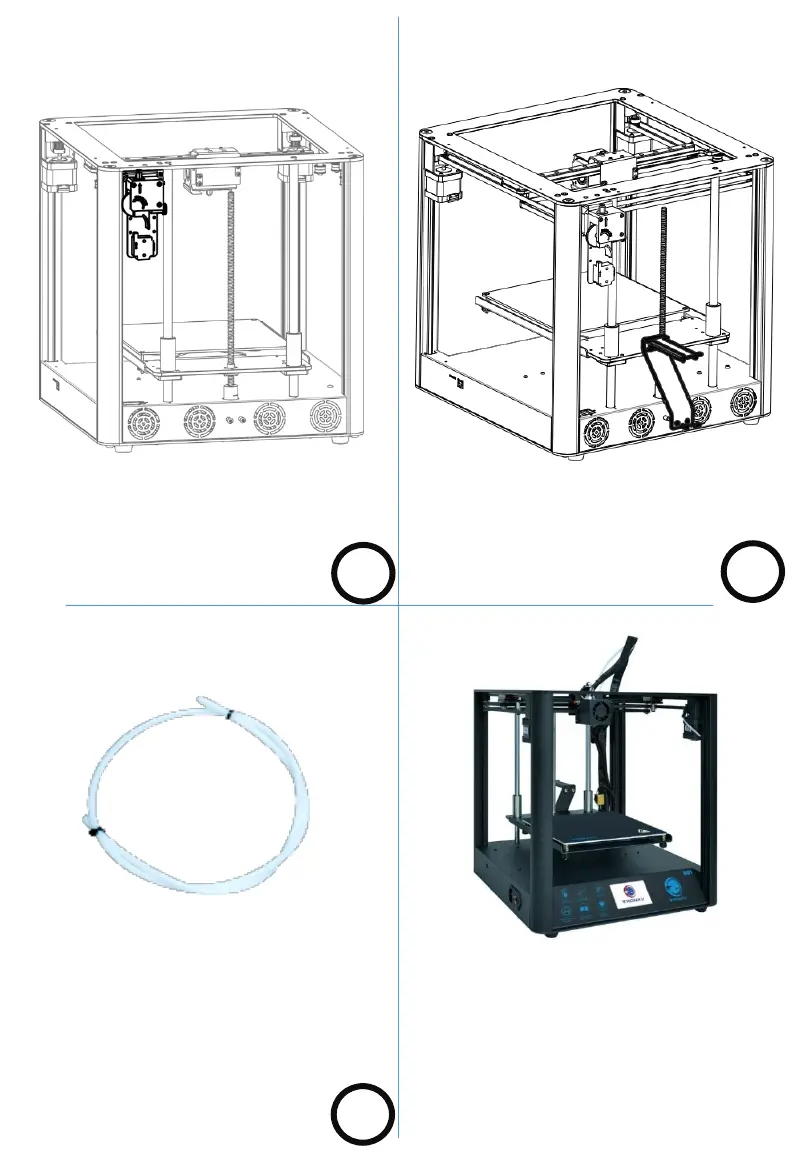

Install filament
holder
Install the filament pipe
Install TITAN Extruder
module
7
1、Install the TITAN extruder module into
the above frame using the two
KM3*8 screws
1、Firm the filament holder into the base
using the two HM4*8 screws
1、Connect the filament guide tube into the
filament pipe of the print head and connect
the other side of it into the Titan extruder
filament pipe
Note : The print head filament guide tube
must be inserted all to the end totally .
Otherwise it will cause nozzle colgged.
Then we finished the installation. If the
instruction is not so clear , please
watch the install video or contact the
after –service team .
