5、 Wiring diagram
7

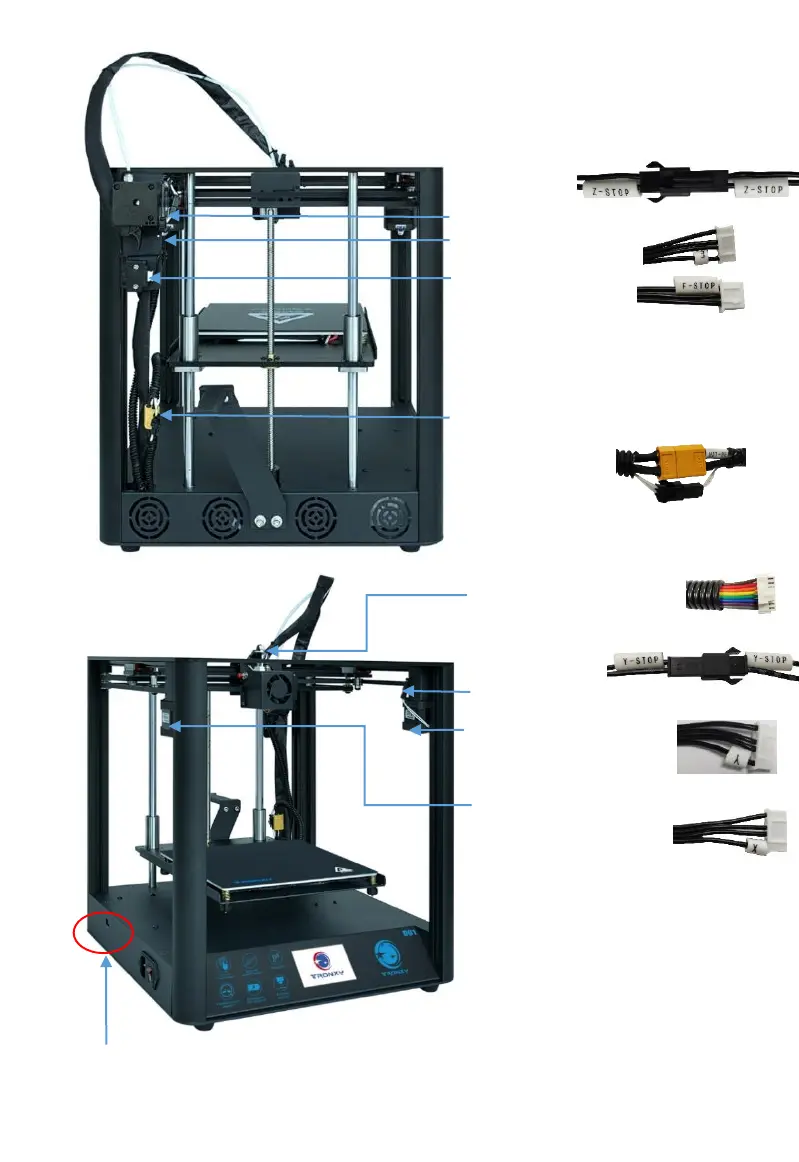

Power 110V-220V transfer
switch
16P Transfer cable
Filament sensor
E motor cable
Z axis limit switch
X axis motor cable
Y axis motor wores
Hotbed lines and thermistor
wire
Y axis limit switch
Note：The X and Y axis wires are inserted into
aluminum and sealed them using the profile cover .
Use the cable tie to tie the 16P transfer cable and
the guide tube, The rest can be firmed on the
TITAN extruder mounting plate with a tie.
