4、Installation steps
1
5
2
3 4

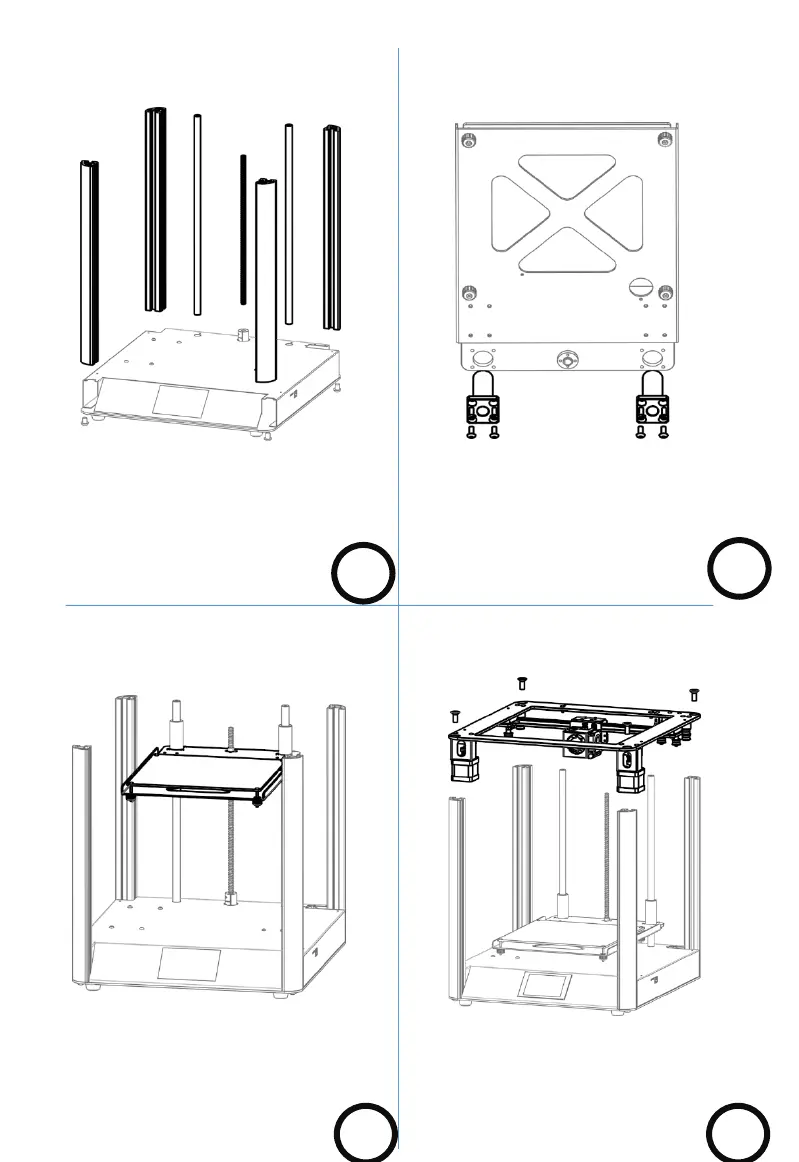

Install base . aluminum 、
polished rod 、screws
Install flange linear bearing
Install hotbed module
Install above frame
1、Firm the base and Aluminum using the
four HM8*10 screws
2、Firm the base and polished rod using
two KM4*12 screws
3、Please loose the coupling screws then
insert the screws ,finally, close the
coupling
1、Using four HM4*8 screws to install the
Flange bearing into the hotbed module
1、Slide the flange linear bearing to the
polished rod and slide it slowly
2, Manually rotate the lead screw, let the
brass nut slide into the lead screw
1、Using four KM8*16 screws to firm
the above frame and aluminum
2、Using two KM4*12 nscrews to forn
the polished rod and Aluminum
To Next Page
