Installation & Setup (cont.)
Installation Tips
• Install all the shelf clips before installing any shelves.
• Start at the bottom shelf and work your way up.
• Always lay the back of each shelf down on the rear clips
before the front.
Procedure
1. Hook the shelf clips into the shelf standards. See fig. 1.
2. Push up on the bottom of the clip. See fig. 2.
NOTICE ›
You may need to squeeze or twist the bottom of
the shelf clip for proper installation. Position all four shelf clips
equal in distance from the floor for flat shelves.
3. Ensure the shelf clip is not loose or able to wiggle out of the
shelf standard. See figs. 3 and 4.
4. Place the shelves on the shelf clips with the cross support bars
facing down.
NOTICE ›
Be sure all shelf corners are properly seated.
Shelf Adjustment
Shelving is adjustable for customer application. This appliance
meets the IEC Shelf Weight Capacity of 47lb/ft
(230kg/m).
TrueTrac Organizers
TrueTrac Organizers provide a neat and consistent product
presentation.
TrueTrac Organizers come with a package of shelf retainer clips.
Install the clips on the side of the organizer towards the rear.
See fig. 5.

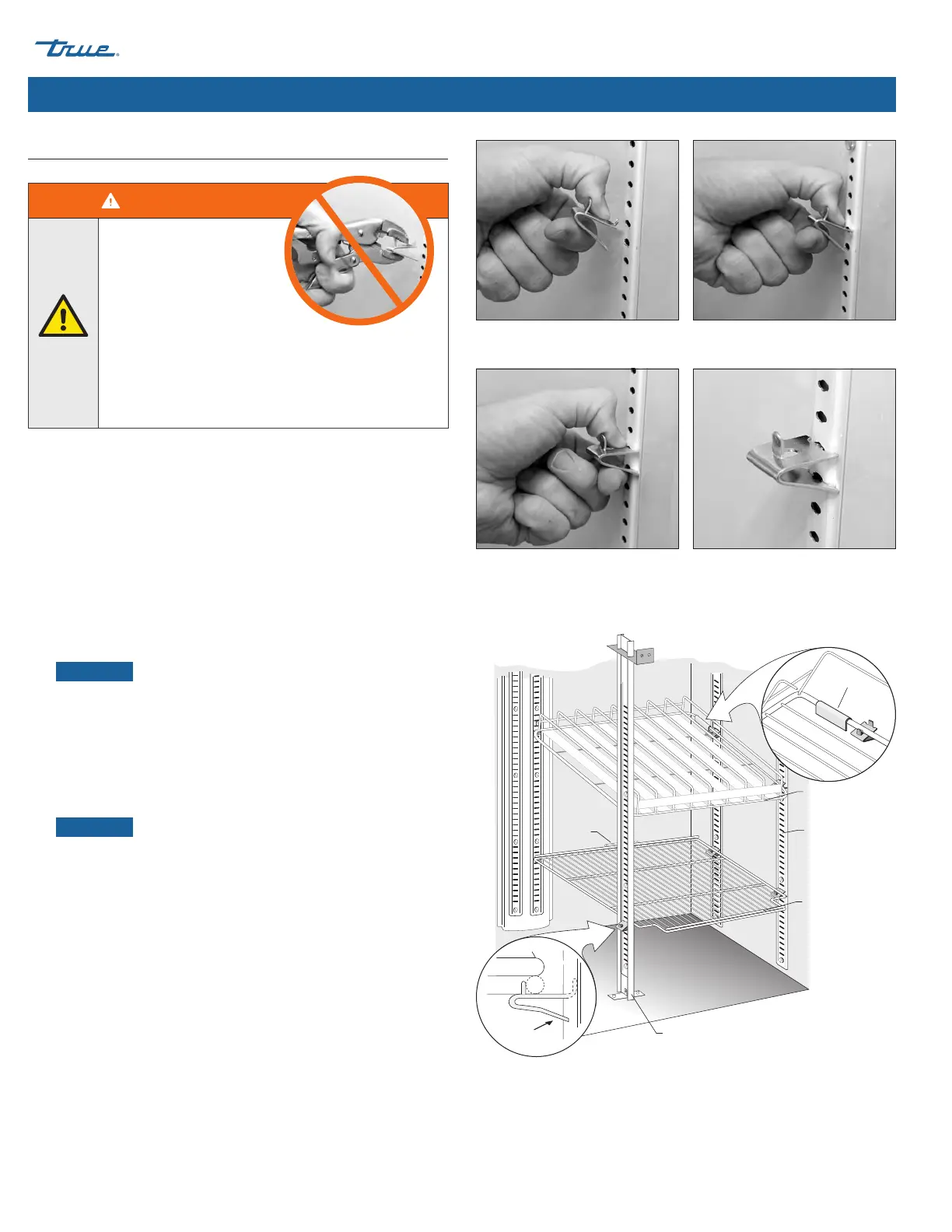

Shelf Installation
Fig. 1. Installing top tab of shelf clip. Fig. 2. The bottom tab of the shelf clip
will fit tightly.
Fig. 3. You may need to squeeze or twist
the bottom of the shelf clip to install.
Fig. 4. Installed shelf clip.
Fig. 5. Close up of a shelf positioned on shelf clips and the retainer clips.
Shelf
Clip
Shelf
Shelf
Organizer
Pillaster
(I-beam)
Shelf
Standards
Retainer
Clip
Airflow
Guard
WARNING!
Overloading, incorrectly
installing, or improperly
loading shelves can cause
shelf failure and negatively
affect appliance operation,
resulting in appliance damage,
product damage, or personal injury.
DO NOT use pliers or any crimping tools when
installing shelf clips. Altering shelf clips in any way can
lead to shelving instability.
