19
coaxial cable
I/O cable
DC plug
DC jack
lower
control
board
remove the nut
and washer from
the end of the
coaxial cable
insert the coaxial cable
through the opening
on the frame and use
the washer and nut to
secure in place
route coaxial
cable underneath
the incline motor
mounting bracket
coaxial cable not
installed
coaxial cable
installed
incline
motor
mounting
bracket

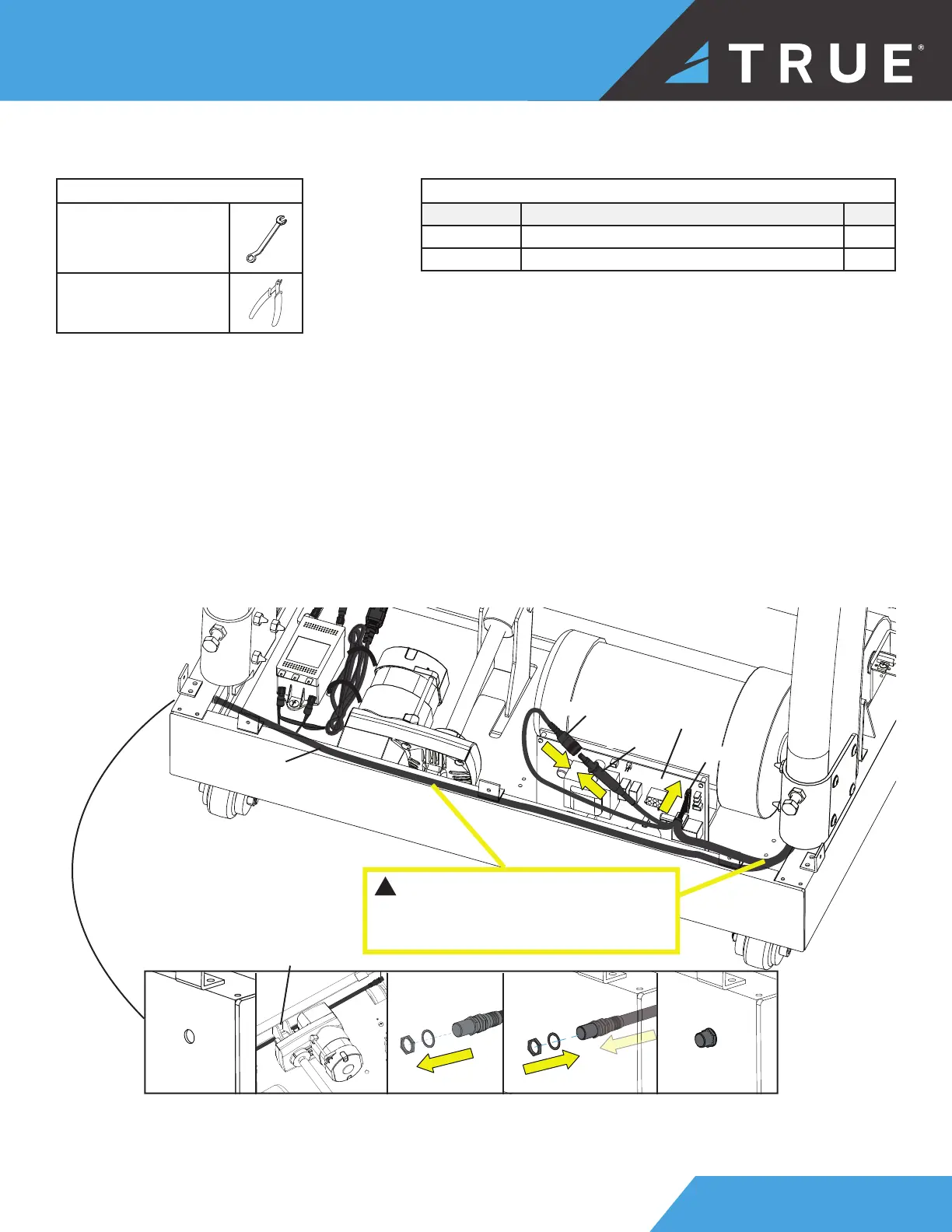

STEP 3—ROUTE AND CONNECT LOWER CABLES—INSTALL OPTIONAL
AUXILIARY POWER SUPPLY (IF NEEDED*)
Tools Used in this Step
7/16” Wrench
Wire Cutters*
Parts Used in this Step
PART DESCRIPTION QTY
00595500* FUYANG POWER SUPPLY 12V 6AMP 1
TC6085_005* ZIP TIE 3
*NOTE: Certain touch screen and PVS consoles require the optional auxiliary power supply.
Carefully make the following cable connections between the pedestals and the base:
• I/O Communication Cable to the Lower Control Board
• Coaxial Cable to the Base
NOTE: Carefully route the coaxial cable underneath the incline motor mounting bracket to avoid damage to the cable.
NOTE: To fully tighten the coaxial cable nut, use a 7/16” wrench.
• Power AUXPS Cable Connections
NOTE: If an auxiliary power supply is not being used, connect the DC plug and DC jack and tuck out the way to avoid
damage to the cables.
NOTE: If an auxiliary power supply is being used, make the DC power connection to the auxiliary power supply and
then secure the cables and power suppy with zip ties. See page 20 for more information.
!
CAUTION: AVOID DAMAGE!
ROUTE CABLE UNDER THE INCLINE
MOUNTING BRACKET—ALWAYS KEEP
CABLES AWAY FROM MOVING PARTS!
To Next Page
