Exchange of brake housing, brake lever. Page 2
9. Attach the wire to the adjustment screw and screw
the brake mechanism into the handle.
1
1
3
2
2
Let’s Fly Spare part. Art. No. LF306.
Let’s Fly Service Manual. Revision version No: 2 – Aug 2017
11. Make a wire loop on the wire
guide. Put the wire on the yoke.
12. Push the sleeve and wire guide
into the rear leg.
Sleeve
Push
14. Push the whole assembly into the rear leg and
screw back the screws B and C.
13. Mount the yoke on the wheel mounting plate and
turn the fender into correct angle.
10. Screw the height adjustment
mechanism back in place.
Sleeve
Loop
Sleeve
Brake yoke
Fender

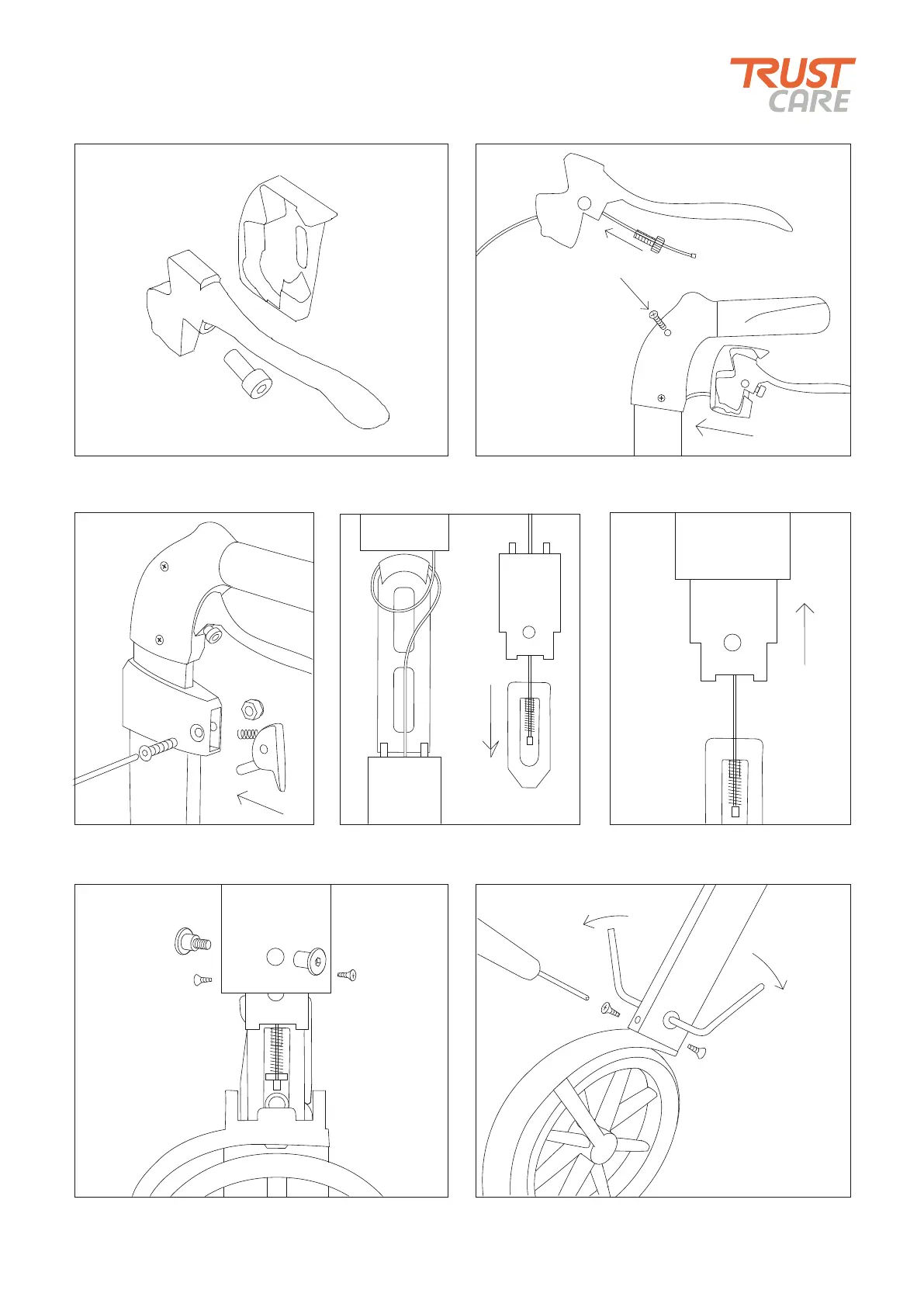

8. Now the new lever and housing can be mounted.
