9. Use the pliers to lock the snap-ring
firmly into the groove on the axle.
Groove
Exchange of rear wheel mounting plate. Page 1.
Let’s Fly Spare part. Art. No. 0474, 0475.
Let’s Fly Service Manual. Revision version No: 2 – Aug 2017

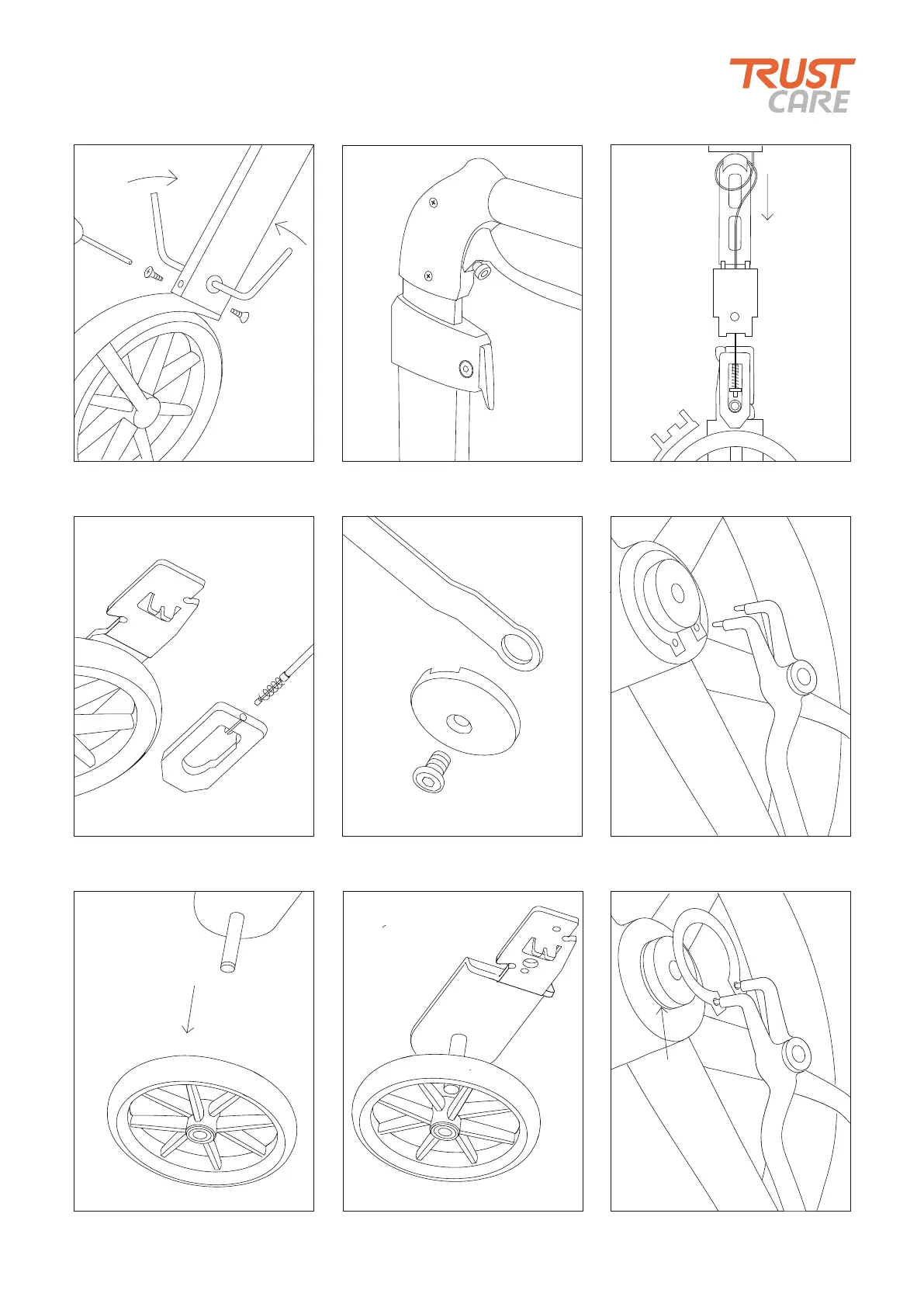

1. Unscrew the double screw B and
the two screws C holding the fender.
4. Remove the yoke from the wire
and the mounting plate.
2. Put the handle in lowest position.
B
C
C
Fender
Wire guide
Sleeve
Brake yoke
3. Pull out the brake, sleeve, fender,
and the wire guide from the rear leg.
7. Remove the wheel from the old
mounting plate
8. Put the wheel on the new
mounting plate.
5. Unscrew the wheel cap and
remove the fender.
6. To remove the wheel, remove the
retaining ring (snap-ring) with a pliers.
