TrustCare Let’s Fly - Art. No. LF313

Let’s Fly Spare part. Art. No. LF313.
Let’s Fly Service Manual. Revision version No: 2 – Aug 2017
19. www.trustcare.se

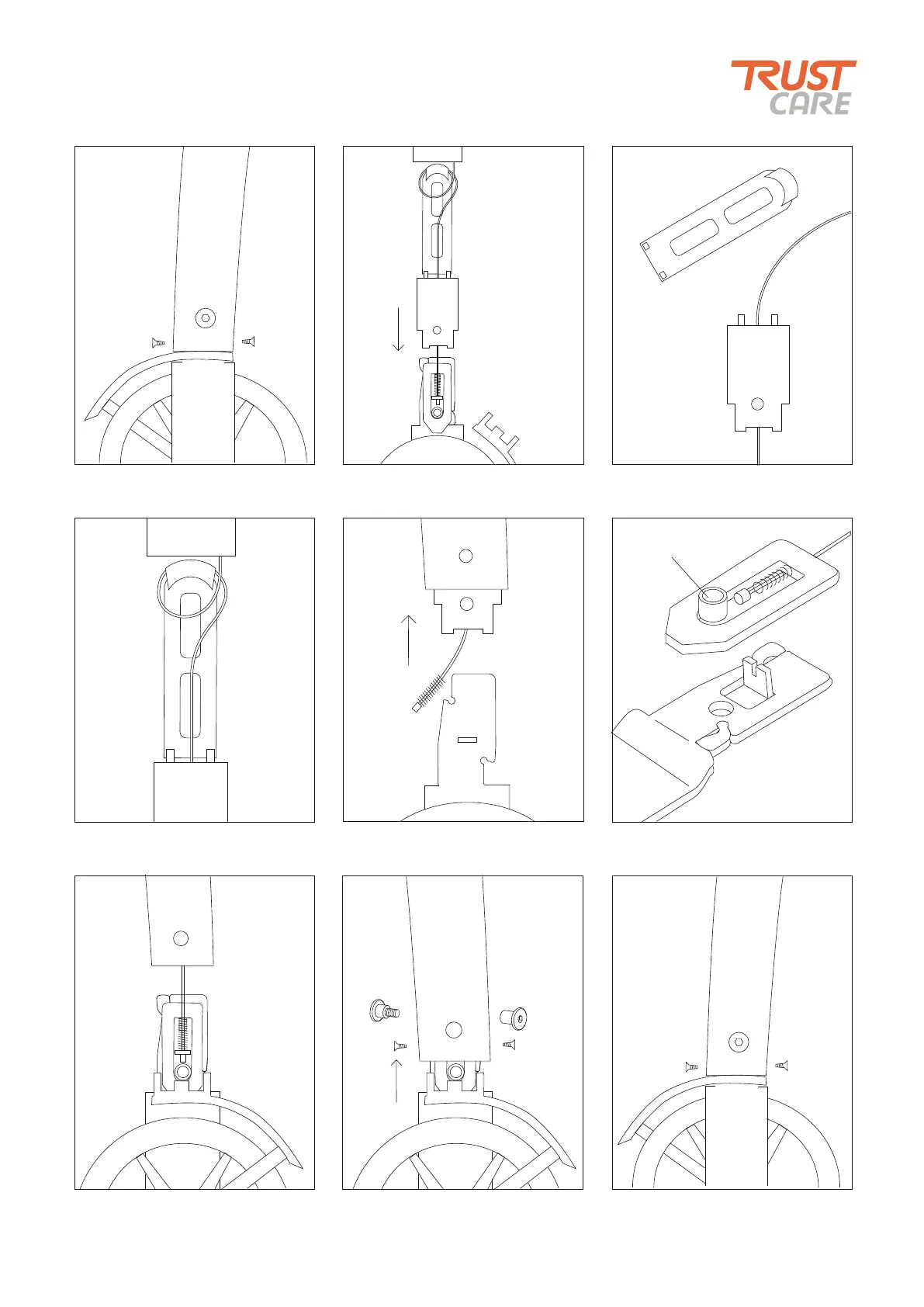

1. Unscrew the double screw A and
the two screws B holding the fender.
2. Pull out the brake, sleeve, fender,
and the wire guide from the rear leg.
A
B B
Fender
Wire guide
Sleeve
Brake yoke
5. Push the sleeve and the wire
guide into the rear leg.
6. Attach the yoke, wire, distance
and springs to the mounting plate.
Wire guide
7. Turn the fender into correct angle
and tighten the wheelscap screw.
Sleeve
8. push the whole assembly into
the rear leg including the fender.
9. Screw the double screw A and
the two screws B back in place.
Exchange of wire guide inside rear leg.
3. Remove the damaged wire
guide and put in the new one.
4. Mount the new wire guide and
make a loop with the wire.
A
B B
Sleeve
Push
Distance sleeve
