TrustCare Let’s Fly - Art. No. LF326

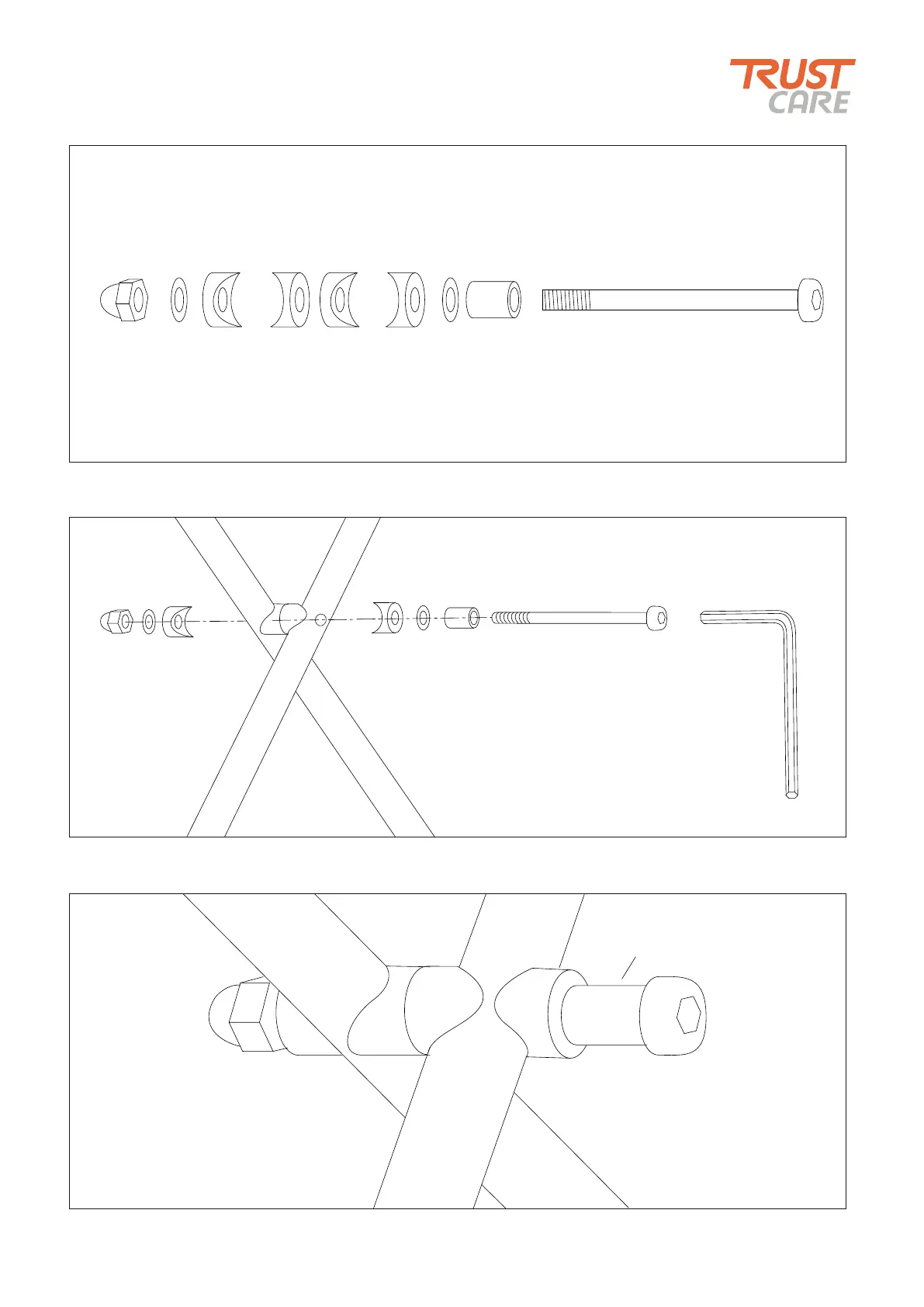

1. These are the parts of the joint and how they should be mounted together.
2. The tubes of the folding cross should be placed between the washers in this order according to this sketch.
3. Tighten the dome nut securely. Fix the nut with a drop of Loctite so it will not fall off. The metal sleeve serves as
a fixture peg for the hook when the rollator is folded.
Front side
of rollator
Rear side
of rollator
Dome nut Metal sleeve Screwplastic washers
Metal washerMetal washer
Front side
of rollator
Rear side
of rollator
Metal sleeve
Let’s Fly Spare part Art. No. LF326.
21 www.trustcare.se
Let’s Fly Service Manual. Revision version No: 2 – Aug 2017
Mounting the middle joint of the folding cross.
