3. Unscrew the two screws that hold the
hook in place and remove the hook.
4. Mount the new screws, the new hook and the spring. The spring must
be placed around the two screws and locked into the hole in the hook at A.
5. Adjust the screws so that the hook can easily rotate
and still fits smoothly into the slot in the plastic linkage arm.
Let’s Fly Spare part. Art. No. LF311.
A
1. Partly fold the rollator so that the seat is loose and
not stretched.
6. Put the fabric band into the slot in the unfold hook.
Adjust the length of the band so that the hook locks the
rollator in open position and releases when you lift the
seat in the middle opening.
Let’s Fly Service Manual. Revision version No: 2 – Aug 2017

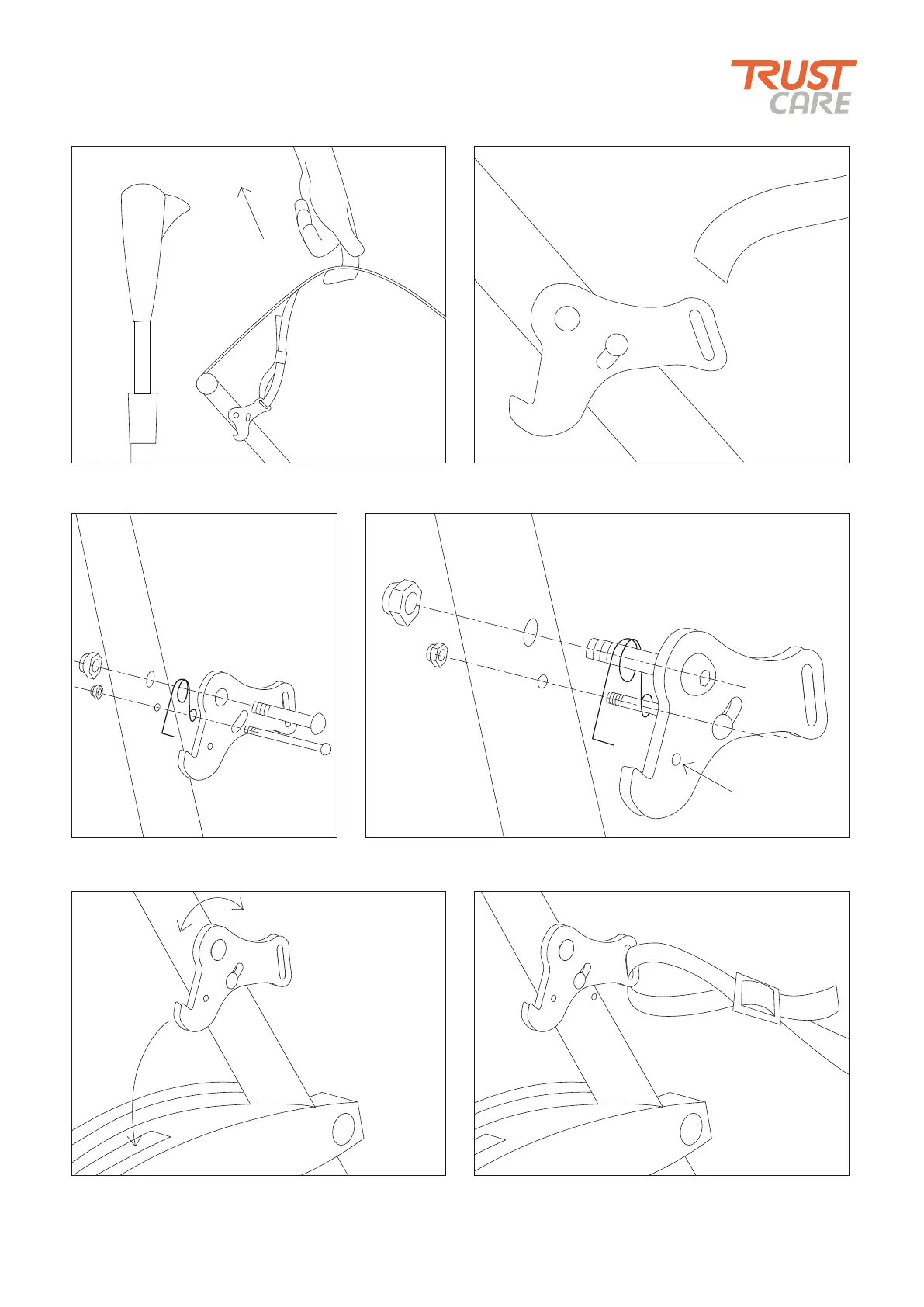

Exchange of the unfold hook.
2. Remove the fabric band from the unfold hook.
