Fender
Wire guide
Sleeve
Brake yoke
Let’s Fly Spare part. Art. No. LF306.

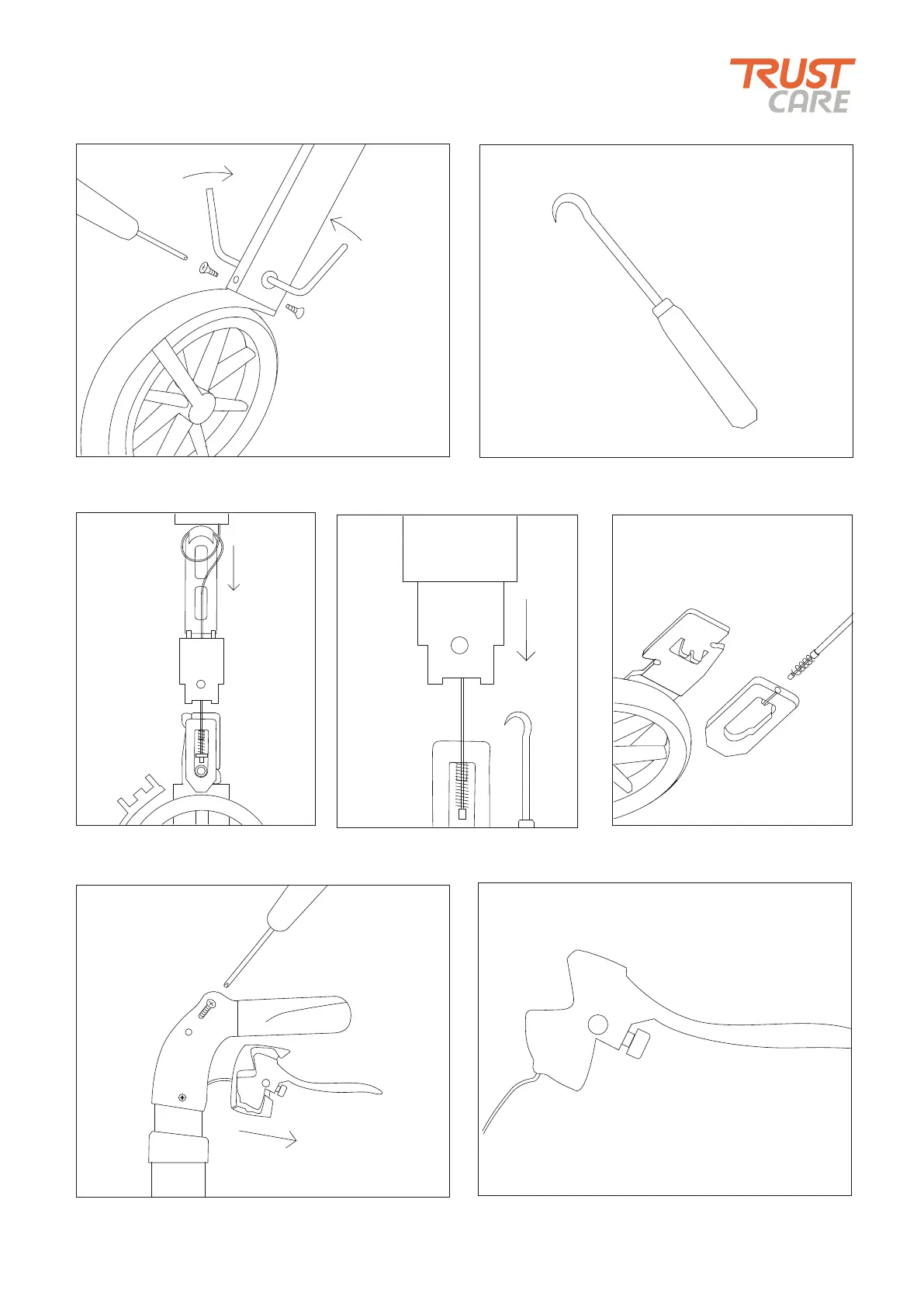

Exchange of brake housing, brake lever. Page 1
1. Unscrew the double screw B and the two screws C
holding the fender.
2. To make is simple to remove the brake components
you can use a hook tool like the one in the picture.
1
2
Let’s Fly Service Manual. Revision version No: 3 – Okt 2019
3. Pull out the brake fender. 4. Use the hook tool to pull out the
sleeve and wire guide separately.
6. Unscrew the screw on the handle and pull out the
brake housing and brake lever .
5. Unmount the brake from the wire.
7. Dont remove the brake wire from the old brake handle.
B
C
C
Sleeve
Pull
To Next Page
