Fender
Wire guide
Wire adjustment screw
Sleeve
Brake yoke
Snap
Handle
tube
Let’s Fly Spare part. Art. No. LF305.
Exchange of brake wire Let’s Fly. Page 1.

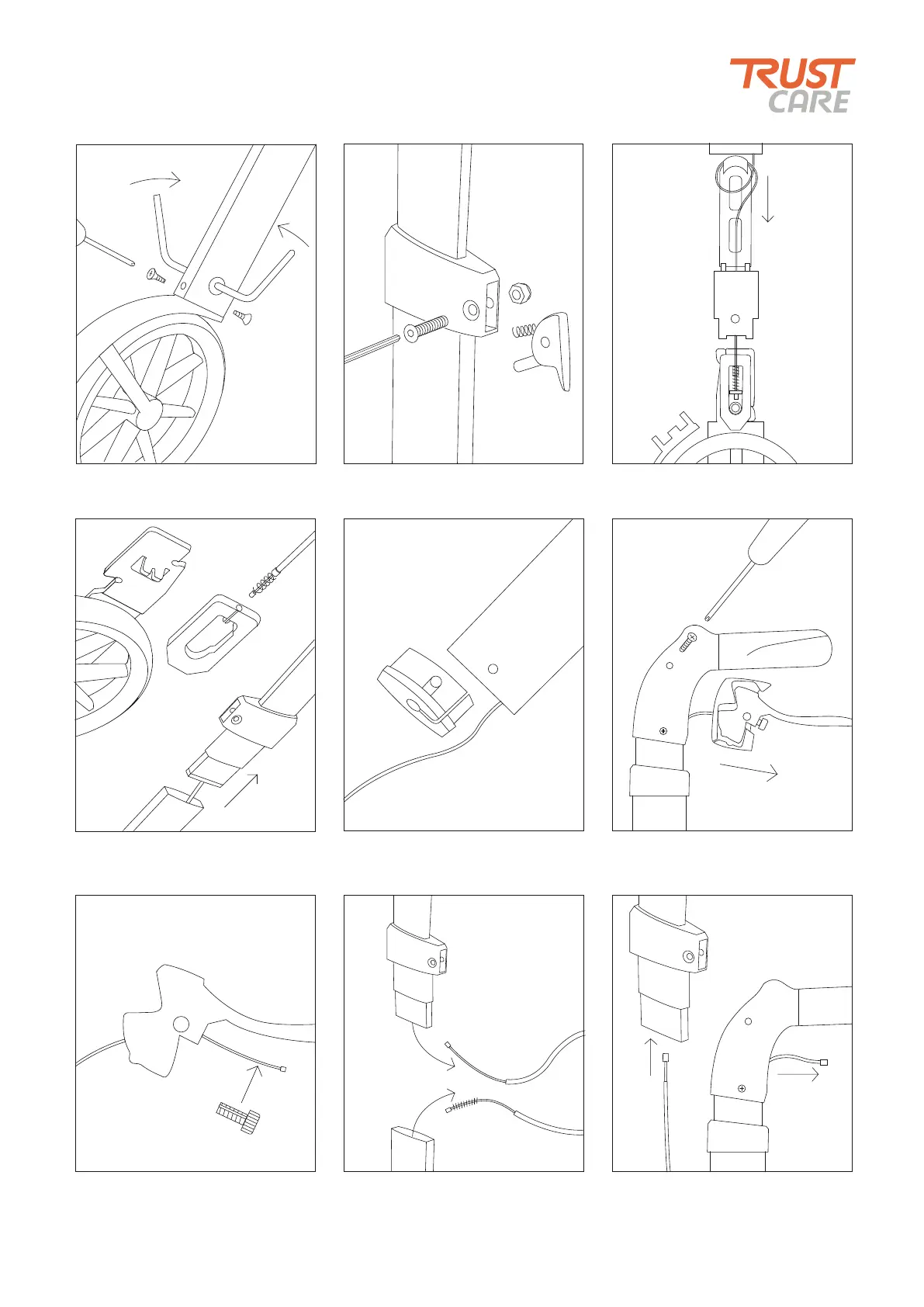

1. Unscrew the double screw B and
the two screws C holding the fender.
2. Unscrew screw A and remove
the height adjustment.
1
2
Let’s Fly Service Manual. Revision version No: 2 – Aug 2017
3. Pull out the brake, sleeve, fender,
and the wire guide from the rear leg.
6. Unscrew the screw on the handle
and pull out the brake mechanism.
4. Disconnect the wire and pull out
the handle tube from the frame.
5. Remove the bottom plug from the
handle tube and take out the wire.
8. Remove the old brake wire entirely
from the frame and the handle.
7. Unscrew the wire adjustment
screw and take out the brake wire.
9. Insert the new wire in the handle
tube from bottom and up.
A
B
C
C
