TrustCare Let’s Fly - Page 15

Wire
guide
Handle tube

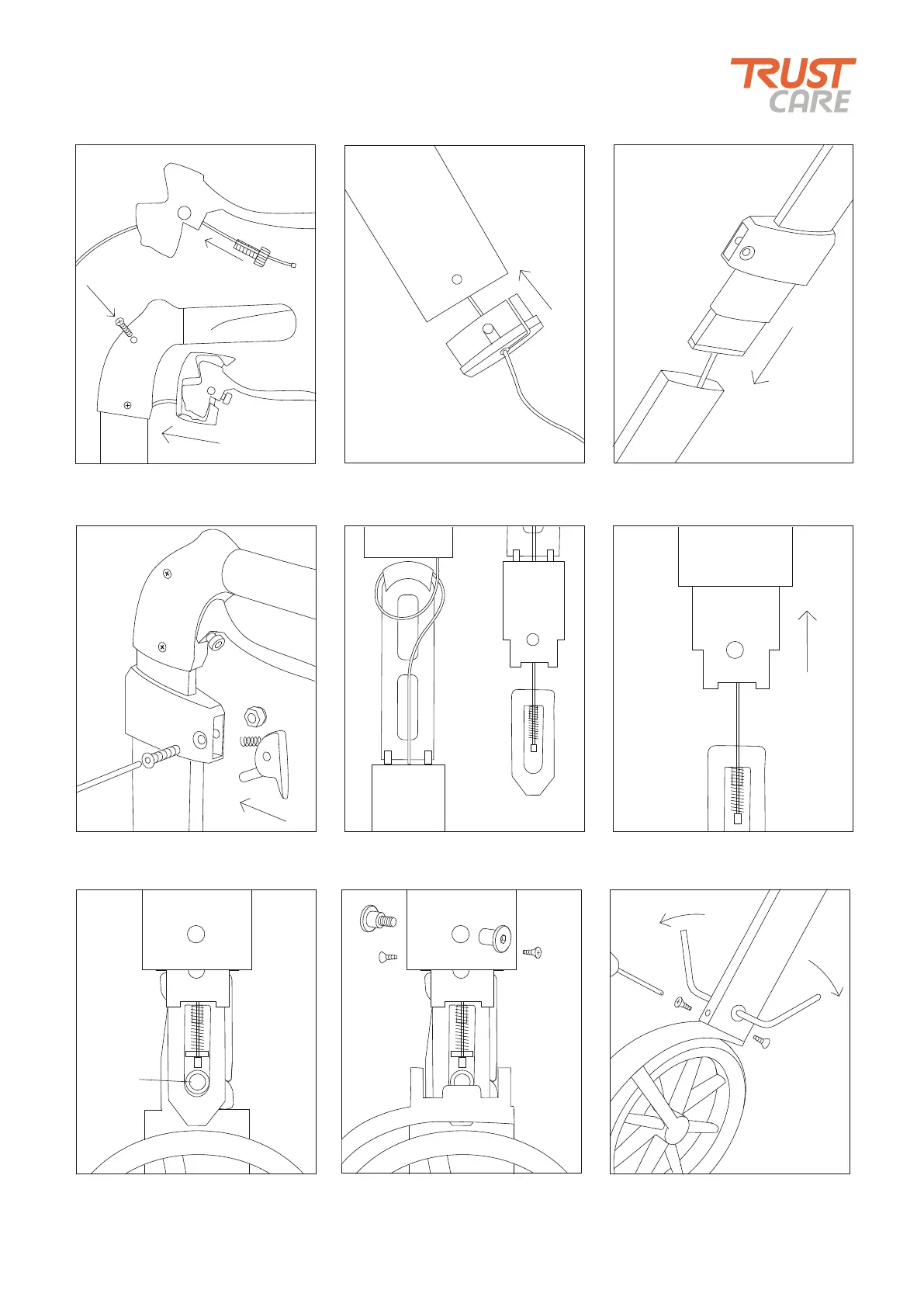

Exchange of brake wire Let’s Fly. Page 2.
12. Put the brake wire and handle
tube into frame.
11. Put the wire into the bottom plug
and push the bottom plug in place.
10. Attach the wire to the adjustment
screw and screw in the mechanism.
1
1
3
2
2
Let’s Fly Spare part. Art. No. LF305.
Let’s Fly Service Manual. Revision version No: 2 – Aug 2017
14. Make a wire loop on the wire
guide. Attach the wire to the yoke.
16. Mount the brake yoke and wire
onto the wheel plate.
15. Push the sleeve and wire guide
into the rear leg.
Sleeve
Push
18. Push the whole assembly into
rear leg and screw back the screws.
17. Turn the fender in place.
13. Screw the height adjustment
mechanism back in place.
Sleeve
Loop
Sleeve
Brake yoke
Distance
Rubber
Rubber
B
C
C
Sleeve
Fender
15. www.trustcare.se
