Fender
Wire guide
Wire adjustment screw
Sleeve
Brake yoke
Snap
Handle
tube
Let’s Fly Spare part. Art. No. LF307 LF308.

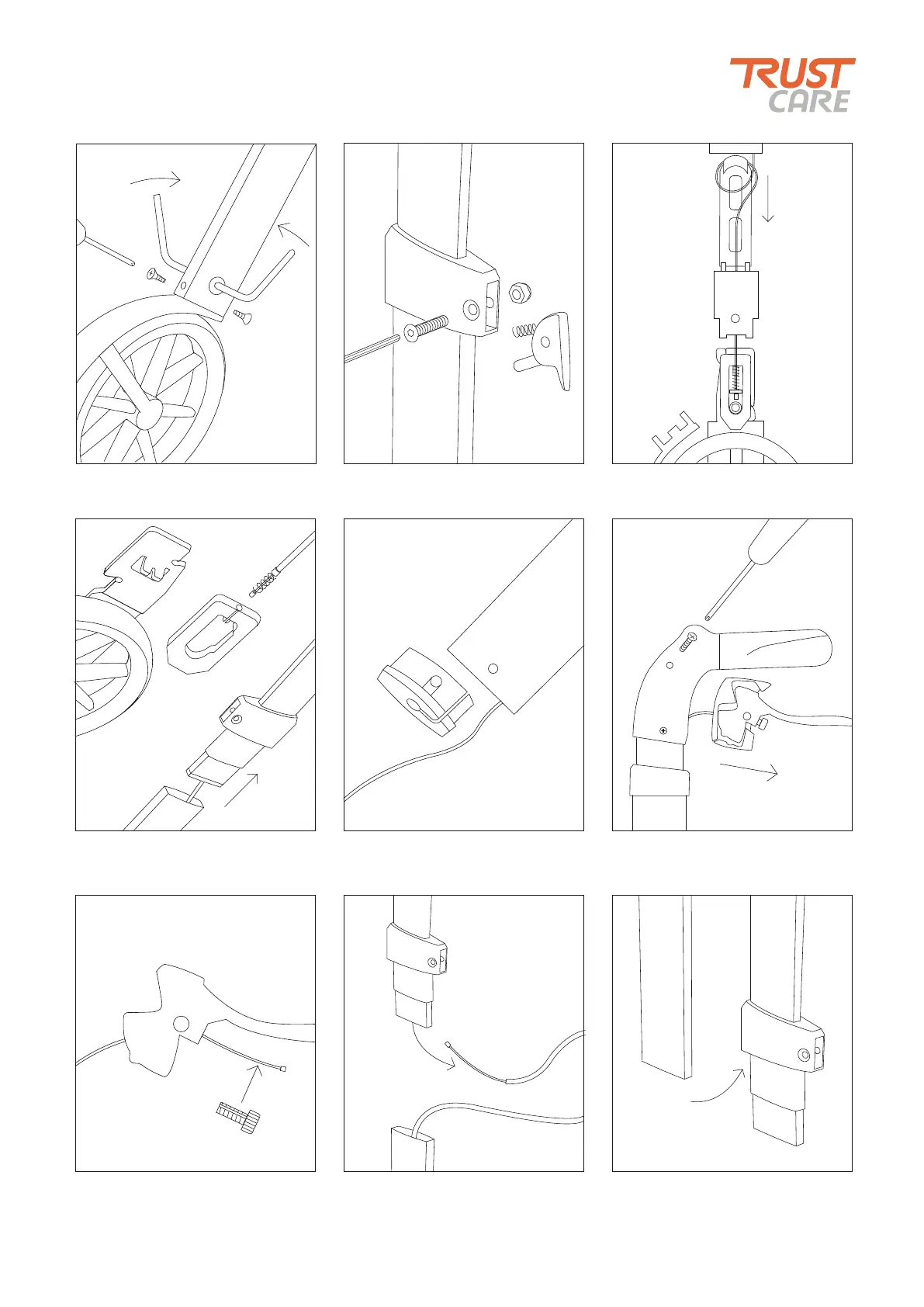

Exchange of handle tube Let’s Fly. Page 1.
1. Unscrew the double screw B and
the two screws C holding the fender.
2. Unscrew screw A and remove
the height adjustment.
1
2
Let’s Fly Service Manual. Revision version No: 2 – Aug 2017
3. Pull out the brake, sleeve, fender,
and the wire guide from the rear leg.
6. Unscrew the screw on the handle
and pull out the brake mechanism.
4. Disconnect the wire and pull out
the handle tube from the frame.
5. Remove the bottom plug from the
handle tube and take out the wire.
16. www.trustcare.se
8. Remove the wire from the old
handle tube.
7. Unscrew the wire adjustment
screw and take out the brake wire.
9. Move the plastic bushing from the
old handle tube to the new one.
A
B
C
C
To Next Page
