Wire
guide

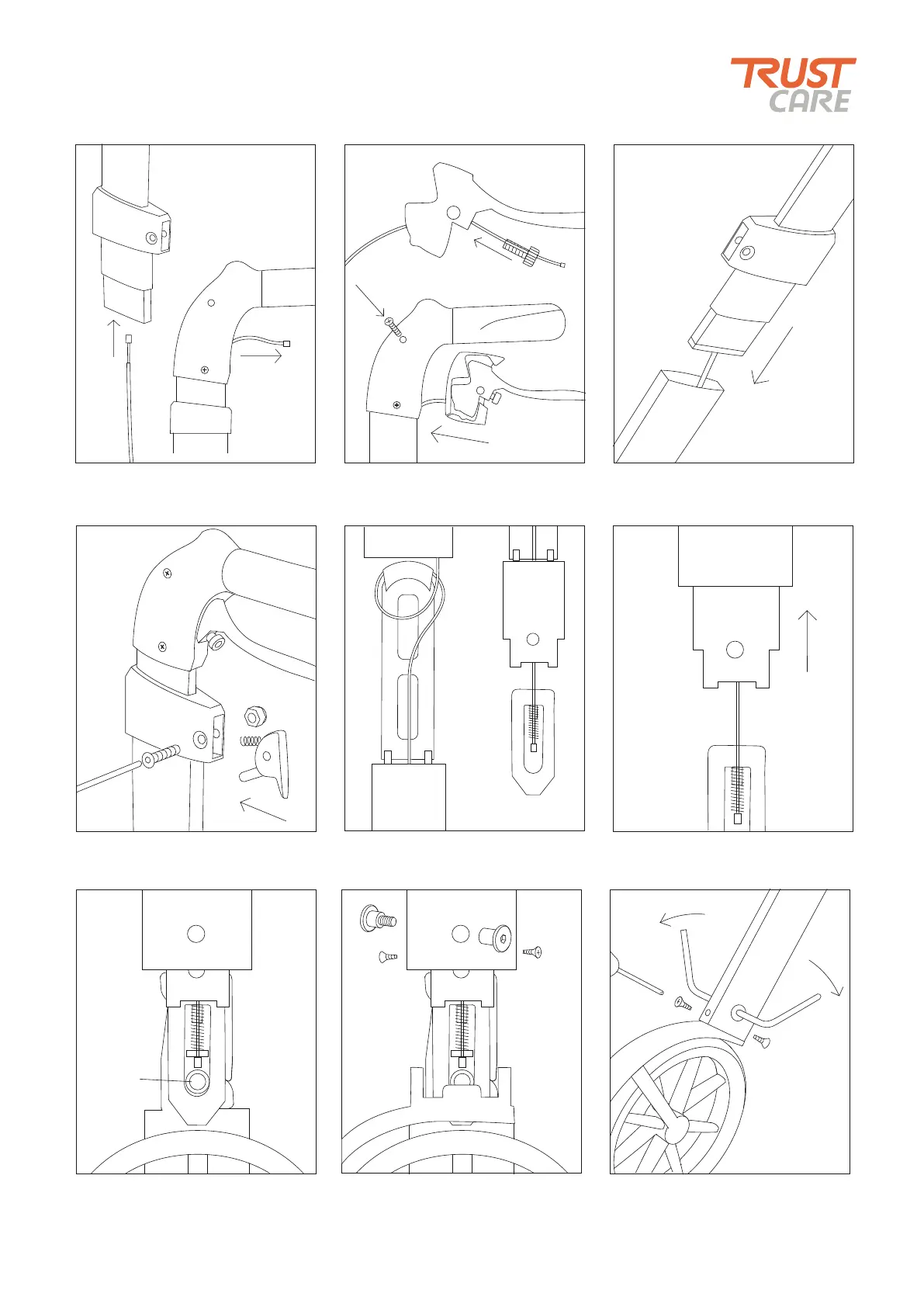

Exchange of handle tube Let’s Fly. Page 2.
12. Put the brake wire and handle
tube into frame.
11. Attach the wire to the adjustment
screw and screw in the mechanism.
10. Put the wire into the new handle
tube all the way up to the handle.
1
1
3
2
2
Let’s Fly Spare part. Art. No. LF307.
Let’s Fly Service Manual. Revision version No: 2 – Aug 2017
16. Mount the brake yoke and wire
onto the wheel plate.
17. www.trustcare.se
14. Make a wire loop on the wire
guide. Attach the wire to the yoke.
15. Push the sleeve and wire guide
into the rear leg.
Sleeve
Push
18. Push the whole assembly into
rear leg and screw back the screws.
17. Put the fender in place.
13. Screw the height adjustment
mechanism back in place.
Sleeve
Loop
Sleeve
Brake yoke
Distance
Rubber
Rubber
B
C
C
Sleeve
Fender
