TrustCare Let’s Fly - Page 6

Slot

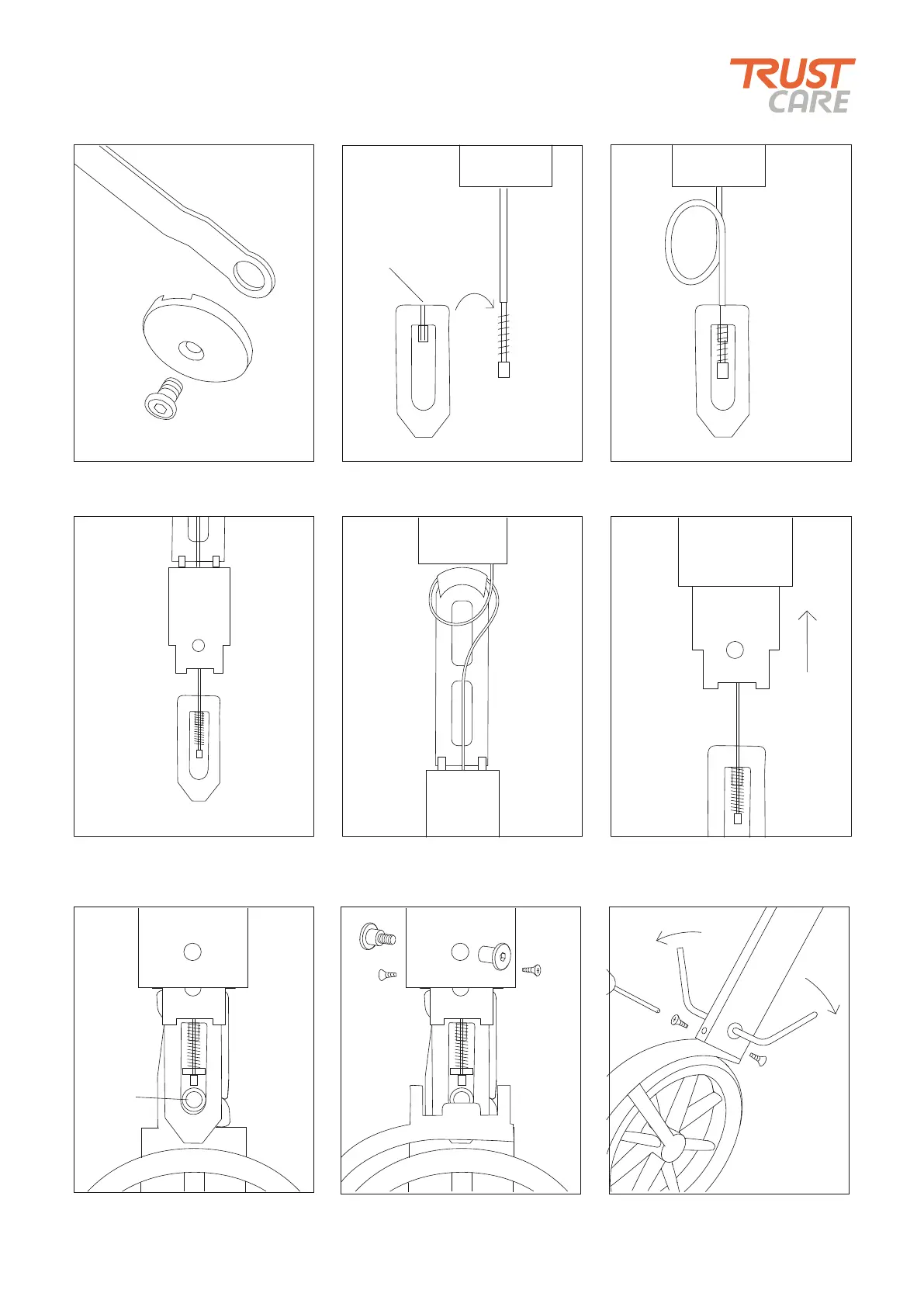

12. Check brake function when the
wire has a loop, see picture.
Let’s Fly Spare part. Art. No. 0474, 0475.
Exchange of rear wheel mounting plate. Page 2.
Let’s Fly Service Manual. Revision version No: 2 – Aug 2017
Wire
guide
13. Attach the wire guide to the top
of the sleeve.
14. Make a loop on the wire.
16. Mount the brake yoke and wire
onto the wheel plate.
15. Push the sleeve and wire guide
into the rear leg.
18. Push the whole assembly into
rear leg and screw back the screws.
17. Put the fender in place.
Sleeve
Loop
Sleeve
Brake yoke
Distance
Rubber
Rubber
B
C
C
Sleeve
Fender
Sleeve
6. www.trustcare.se
10. Put back the fender and
wheelcap.
11. Mount the wire and the spring
on the yoke.
