TSC Alpha-3R - Using the IP54 Case with Shoulder Strap

17

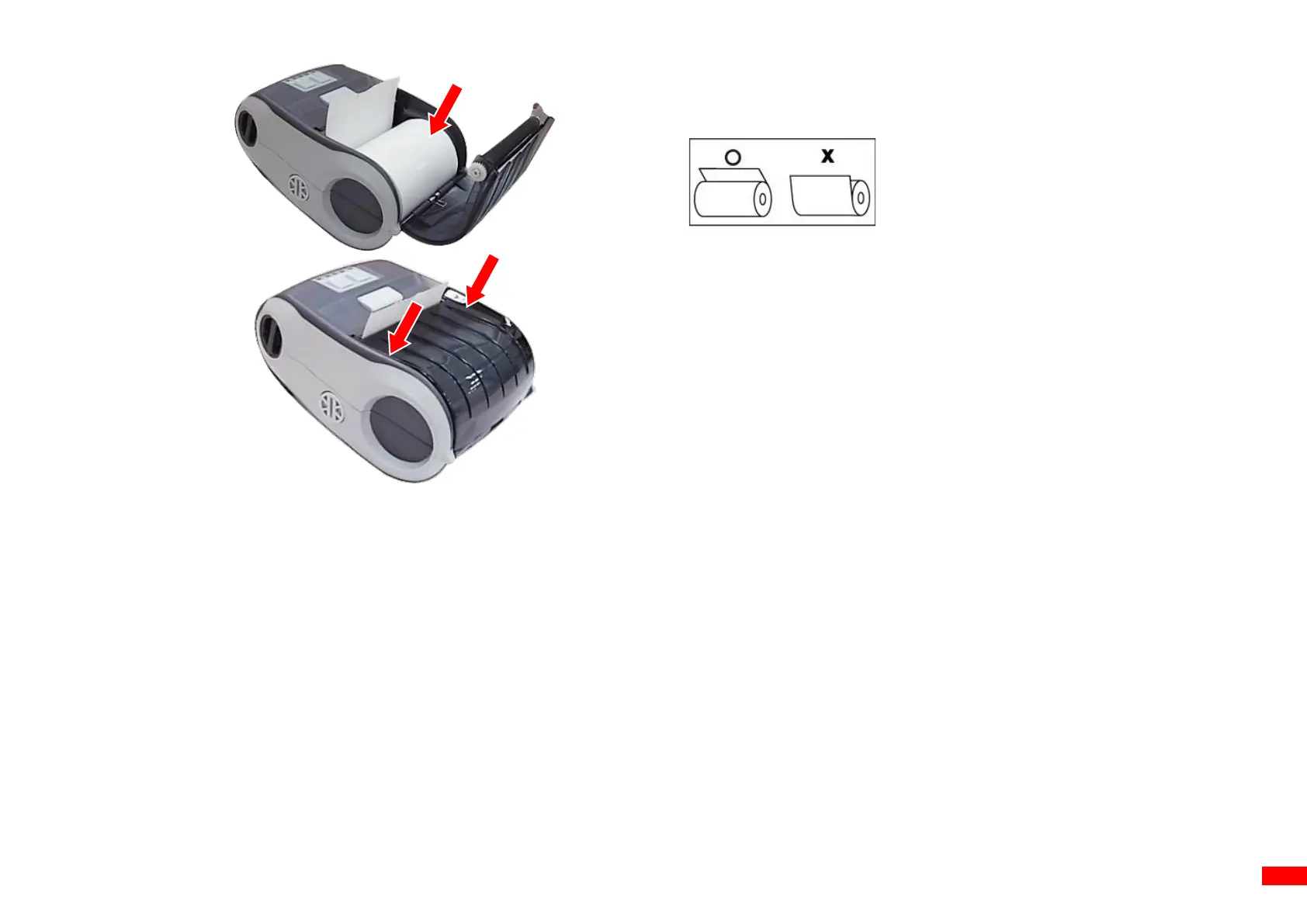

3. Load the media as illustrated and then pull out the media until the
media extends out of the tear edge.
4. Press to close the media cover.
5. Use TSC Console utility to perform a calibration for the media in
use.
NOTE: Performing a calibration is required when using other types of
labels or loading a new media roll.
