TSC Alpha-3R User Manual

33
7.6 Configuring Optional Kits
If you install an optional kit on the printer, such as cutter, peeler, or media rewinder, you need to configure the kit after finishing the
calibration so that the kit works properly.
To configure the kit:
1. Add the printer to the TSC Console main page via the USB
port or COM port.
2. Set up the wired or wireless connection between the printer and
your computer.

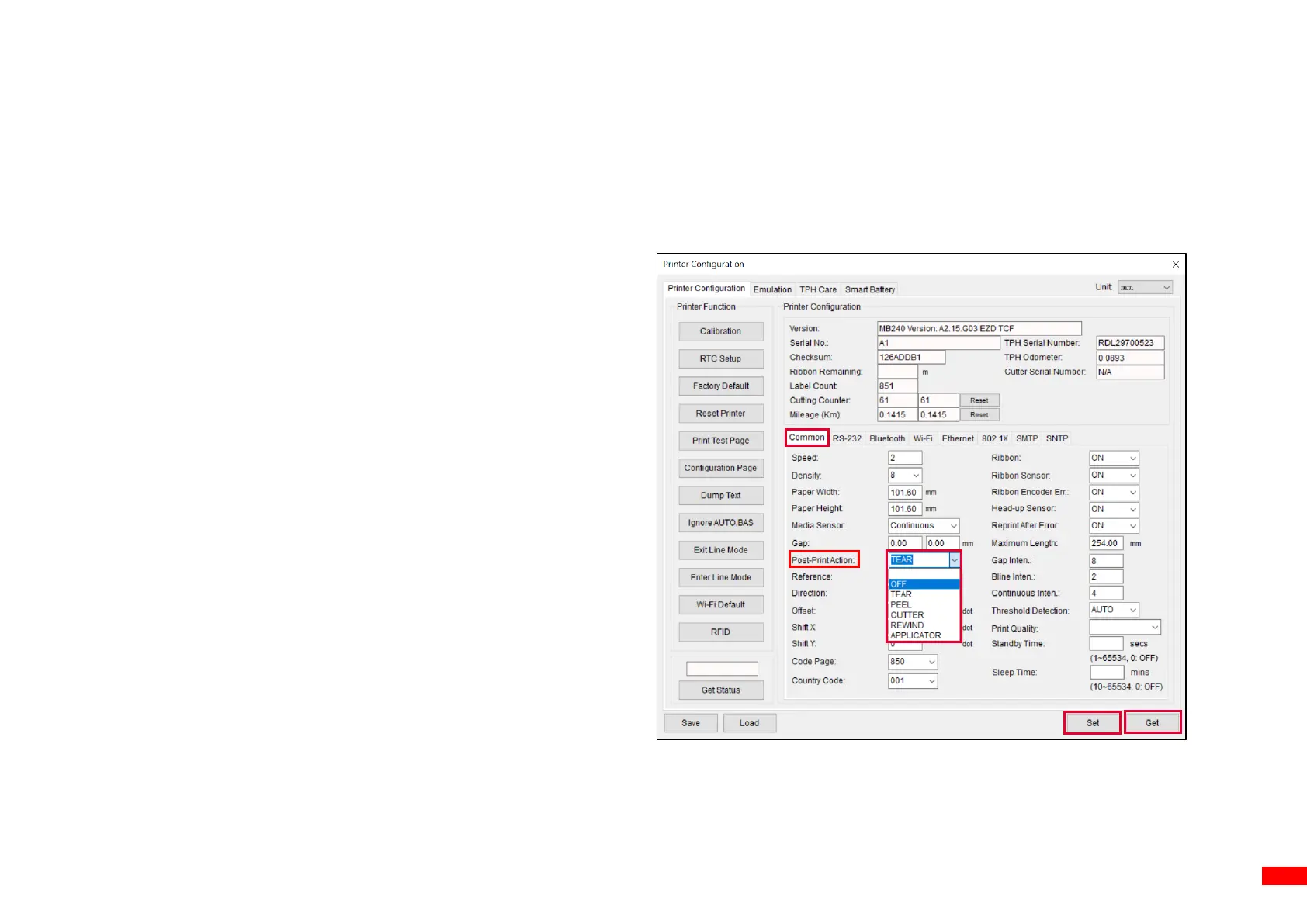

3. Double click the printer you want to configure on the TSC
Console main page to enter the Printer Configuration page.
4. Select Get to get printer’s information.
5. Select the Common tab.
6. In the drop-down list for the Post-Print Action field, select the
corresponding item based on what kind of kit you have installed
on the printer.
7. Select Set to finish the configuration.
1
2
3
4

TSC Alpha-3R Specifications

General

Flash memory	4 MB
Certification	FCC, CE, CB, CCC, C-Tick, BIS, EAC, IC, NOM, NCC, RoHS, WEEE
Internal memory	8 MB
Built-in barcodes	Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Built-in processor	Yes
Page description languages	CPCL-native, EPL2, ESC/POS, TSPL-EZ, ZPL II
Core diameter	25.4 mm
Media thickness	0.14 mm
Maximum roll diameter	57 mm
Package type	Box
Quantity per pack	1 pc(s)
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Storage relative humidity (H-H)	10 - 93 %
Operating relative humidity (H-H)	10 - 90 %
Bluetooth	No
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Optional connectivity	Serial (RS-232)
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Product color	Black, Grey
Battery voltage	7.4 V
Battery capacity	2500 mAh
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	2286 mm
Maximum printing width	72 mm
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Weight and Dimensions

Depth	148 mm
Width	116 mm
Height	70 mm
Weight	550 g
