Applicator Port

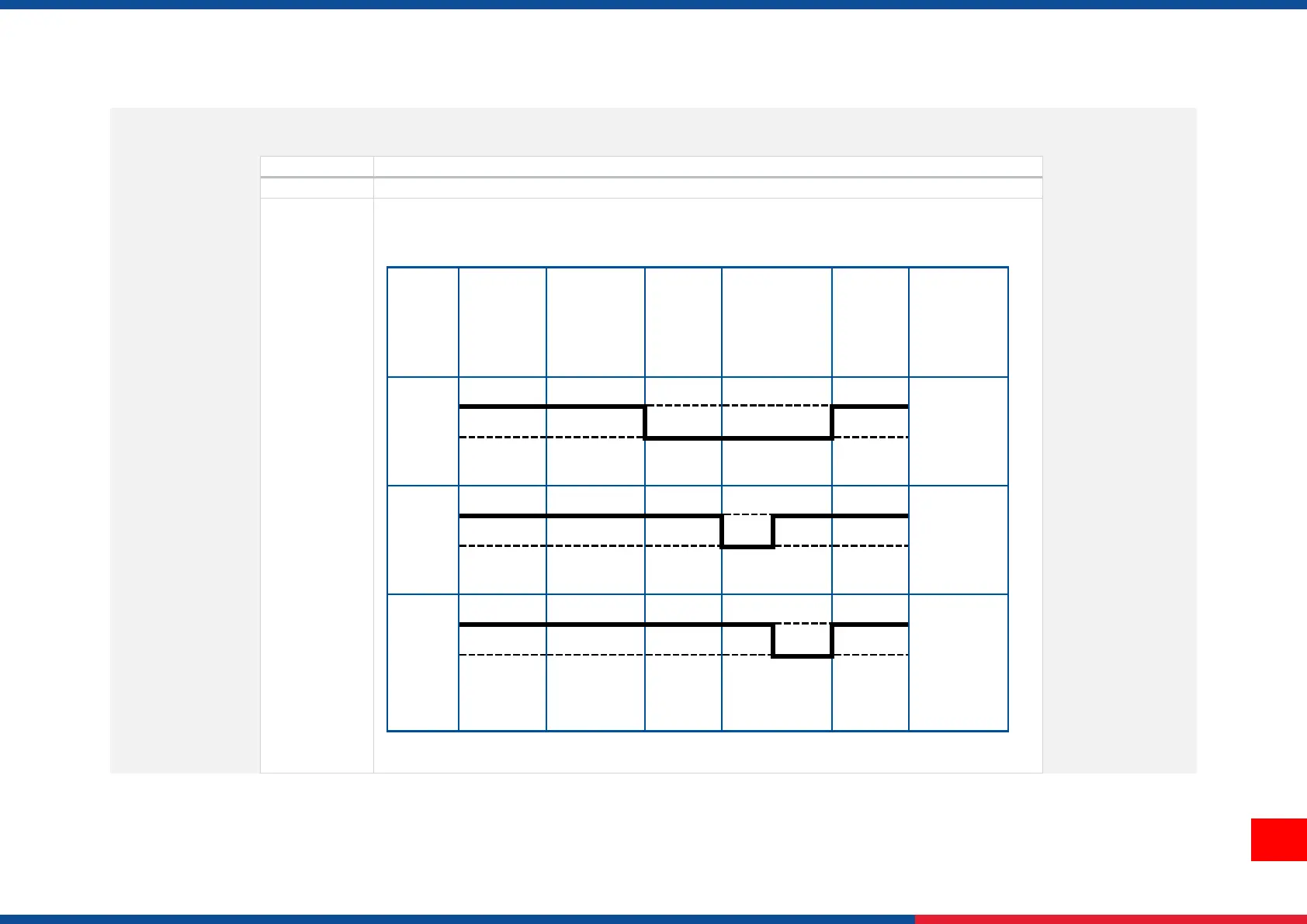

This option is used to set the GPO_3 signal when PRINT END.
Selections
Description
Off
The applicator port is off.
Mode 1
Label
format
sent
Label
format
processed
Waiting
for start
print
signal
Label prints
Ready
for next
label
Data
ready
(Pin 14,
GPO_6)
Not ready
Ready
Print
start
(Pin 3,
GPI_1)
Do not start
Start
Print
End
(Pin 11,
GPO_3)
Do not end
End
Off
