4
3.2

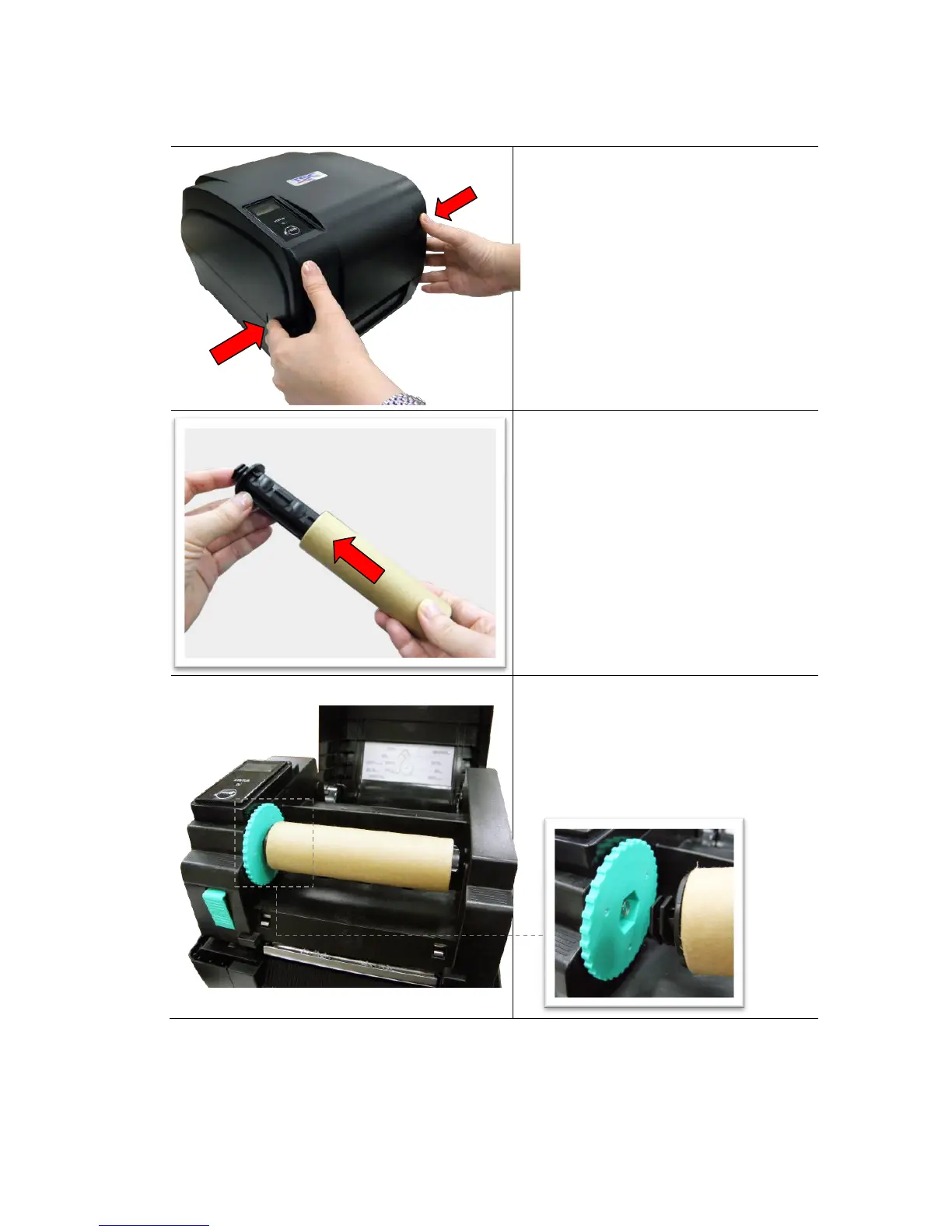

Loading the
Ribbon
1.
Open the printer
top cover by
pressing the top cov
er open tabs
located on each side
of the printer.
2.
Insert the paper core
to the ribbon
rewind spind
le.
3.
Insert the left side
of ribbon rewi
nd
spindle to the ribb
on rewind hub first
then insert the ri
ght side of ribbon
rewind spind
le to the hole at
the right
side of ribbon mechan
ism.
15
17
Table of Contents
Default Chapter
4
Table of Contents
4
1 Introduction
6
Product Introduction
6
Product Features
7
Printer Standard Features
7
Printer Optional Features
8
General Specifications
9
Print Specifications
9
Ribbon Specifications
9
Media Specifications
10
2 Operations Overview
11
Unpacking and Inspection
11
Printer Overview
12
Front View
12
Interior View
13
Rear View
14
3 Setup
15
Setting up the Printer
15
Loading the Ribbon
16
Loading the Media
20
Loading the Roll Labels
20
Loading the Media in Peel-Off Mode (Option)
23
Loading the Media in Cutter Mode (Option)
25
External Label Roll Mount Installation (Option)
26
4 LED and Button Functions
28
LED Indicator
28
Regular Button Functions
28
Power-On Utilities
29
Ribbon and Gap/Black Mark Sensor Calibration
29
Gap/Black Mark Calibration, Self-Test and Dump Mode
30
Printer Initialization
32
Set Black Mark Sensor as Media Sensor and Calibrate the Black Mark Sensor
33
Set Gap Sensor as Media Sensor and Calibrate the Gap Sensor
33
Skip AUTO.BAS
34
5 Diagnostic Tool
35
Start the Diagnostic Tool
35
Printer Function
36
Calibrating Media Sensor by Diagnostic Tool
37
Auto Calibration
37
Setting Ethernet by Diagnostic Utility (Option)
38
Using USB Interface to Setup Ethernet Interface
38
Using RS-232 Interface to Setup Ethernet Interface
39
Using Ethernet Interface to Setup Ethernet Interface
40
6 Troubleshooting
42
Common Problems
42
7 Maintenance
45
Revise History
46
