5.4 Setting Ethernet by Diagnostic Utility (Option)
The Diagnostic Utility is enclosed in the CD disk \Utilities directory. Users can use Diagnostic Tool to
setup the Ethernet by RS-232, USB and Ethernet interfaces. The following contents will instruct
users how to configure the Ethernet by these three interfaces.
5.4.1 Using USB interface to setup Ethernet interface
1. Connect the USB cable between the computer and the printer.
2. Turn on the printer power.
3. Start the Diagnostic Utility by double clicking on the icon.

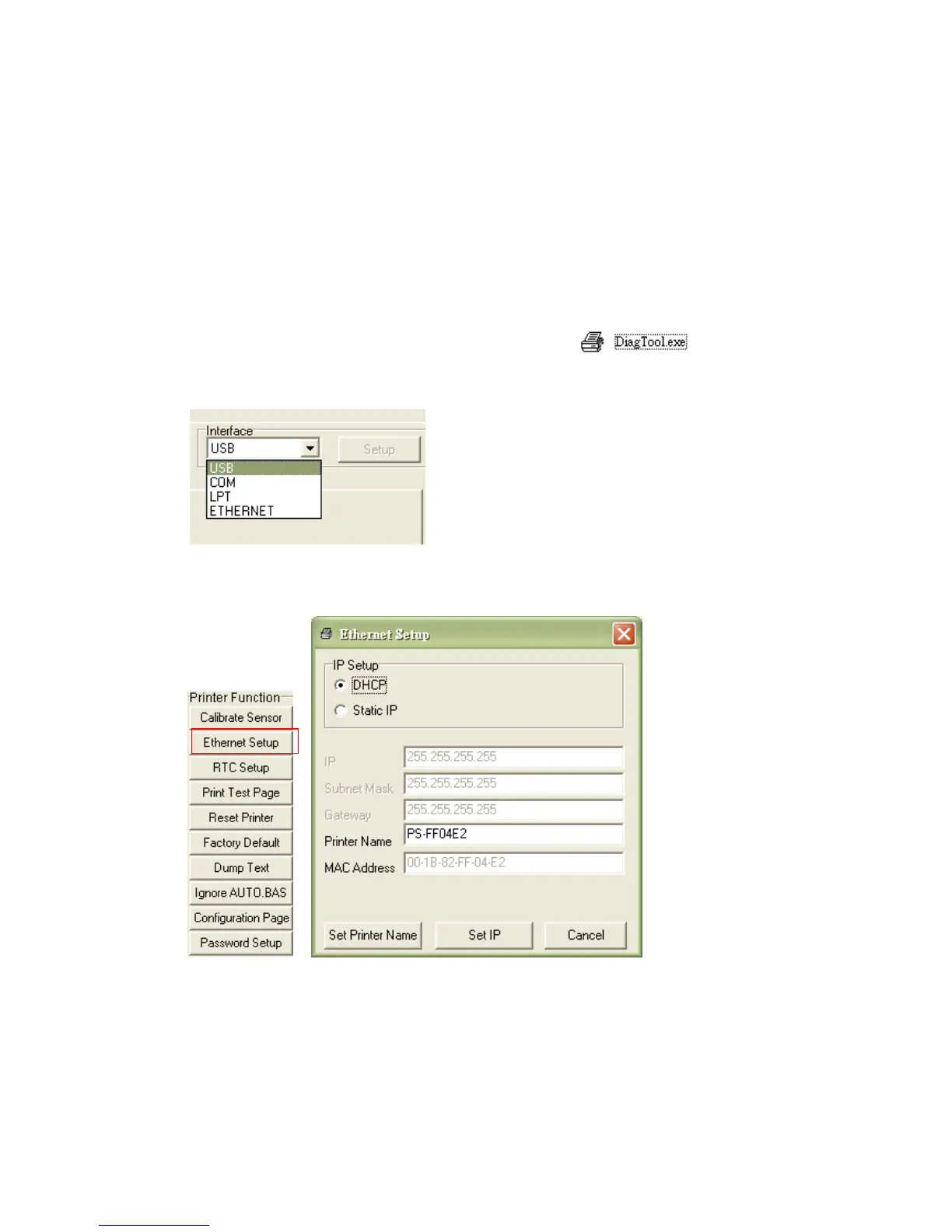

4. The Diagnostic Utility default interface setting is USB interface. If USB interface is connected
with printer, no other settings need to be changed in the interface field.
5. Click on the “Ethernet Setup” button from “Printer Function” group in Printer Configuration
tab to setup the IP address, subnet mask and gateway for the on board Ethernet.
