TSC TC210 Series

TC200/ TC300/ TC210/ TC310
Bar Code Printer Service Manual
8
21
Gap sensor receiver connector
JP34
Pin
Description
Voltage
1
Power
3.3V
2
Gap sensor receiver AD
0~3.3V
22
Ribbon encoder sensor connector
JP20
23
RFID module connector (Factory option)
JP38

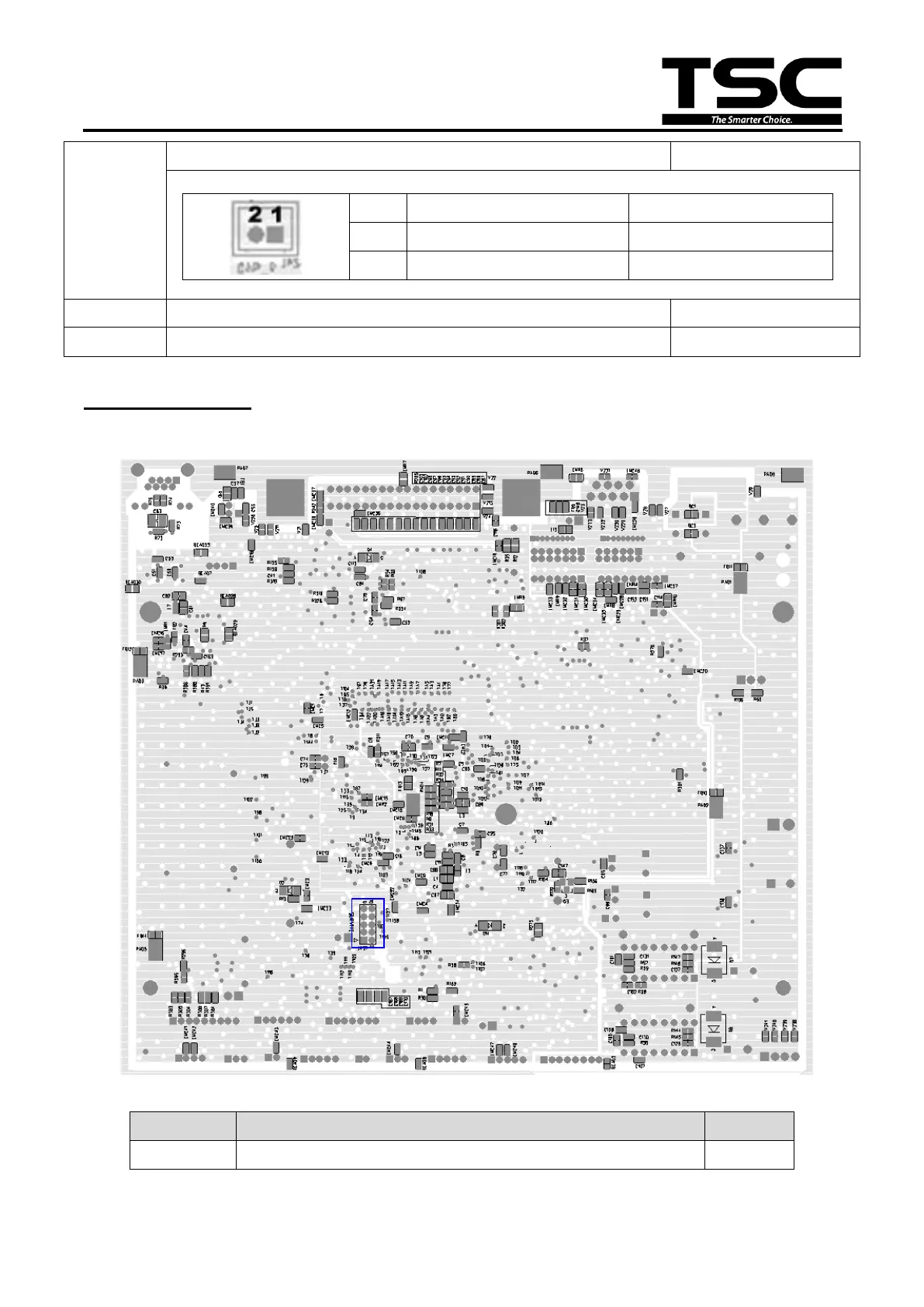

Main board bottom
Connector
Description
Remark
1
Firmware recover card connector
JP37
1
