TSC TC210 Series

TC200/ TC300/ TC210/ TC310
Bar Code Printer Service Manual
9
For TC210/ TC310 Series

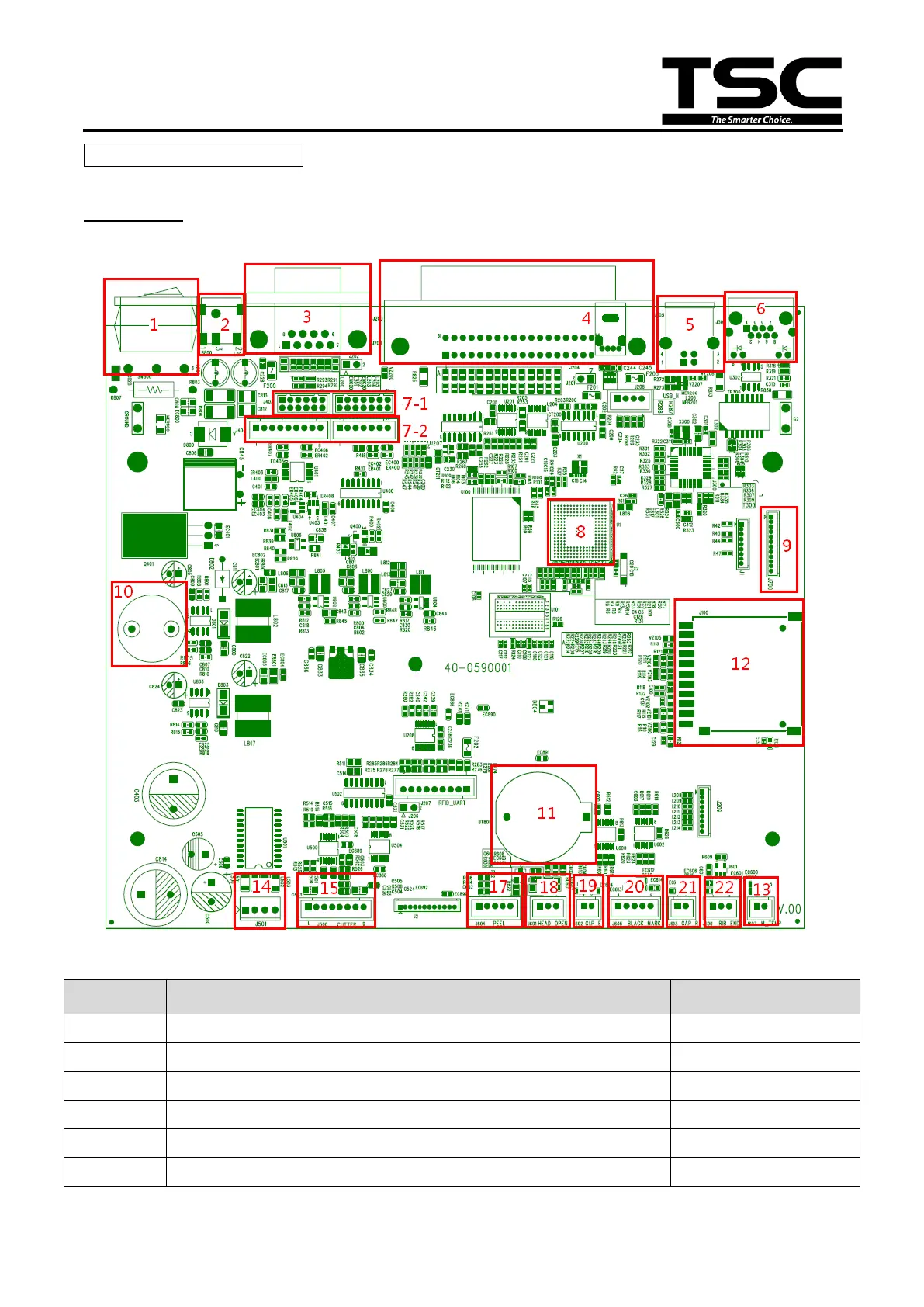

Main board
Connector
Description
Remark
1
Power switch
SW800
2
Power supply output (24V DC) connector
B800
3
RS-232C connector
J203
4
USB host connector/ Centronics port connector (Option)
J204 / J200
5
USB connector
J205
6
Ethernet connector
J300
