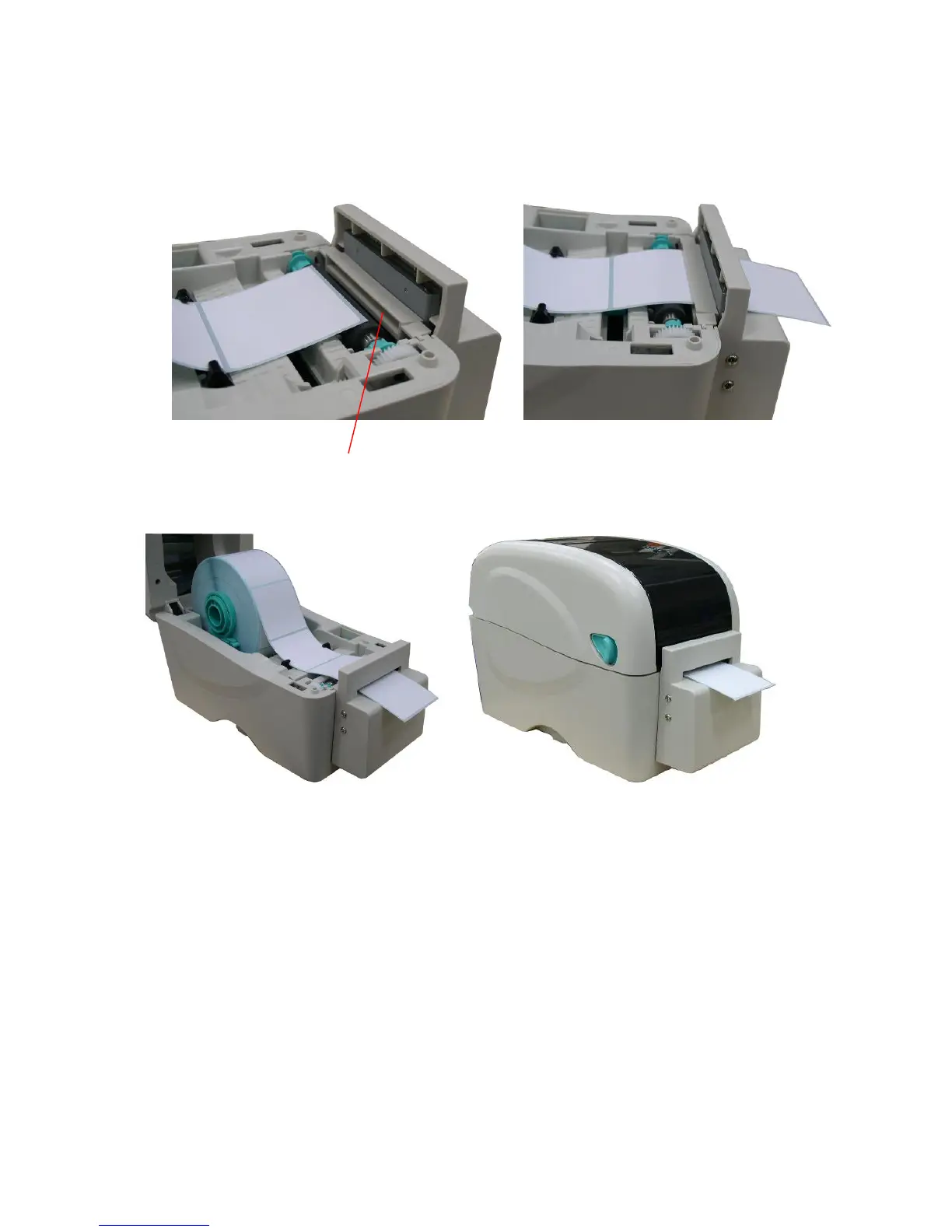

3.2.3 Loading Media in Cutter Mode (Option)
1. Refer to section 3.2.1 to load the media.
2. Lead the media through the cutter paper opening.
3. Close the top cover gently.
4. Use “Diagnostic Tool” to set the media sensor type and calibrate the selected sensor.
(Start the “Diagnostic tool” Select the “Printer Configuration” tab Click the “Calibrate
Sensor” button)
Note:
* Please calibrate the gap/black mark sensor when changing media.
* Regular cutter specification:
Full cut: Paper thickness: 0.06 ~ 0.19 mm, 200,000 cuts
Partial cut: Paper thickness: 0.06 ~ 0.12 mm, 500,000 cuts
* Except for the linerless cutter, all regular/heavy duty/care label cutters DO NOT cut on media with glue.
