12

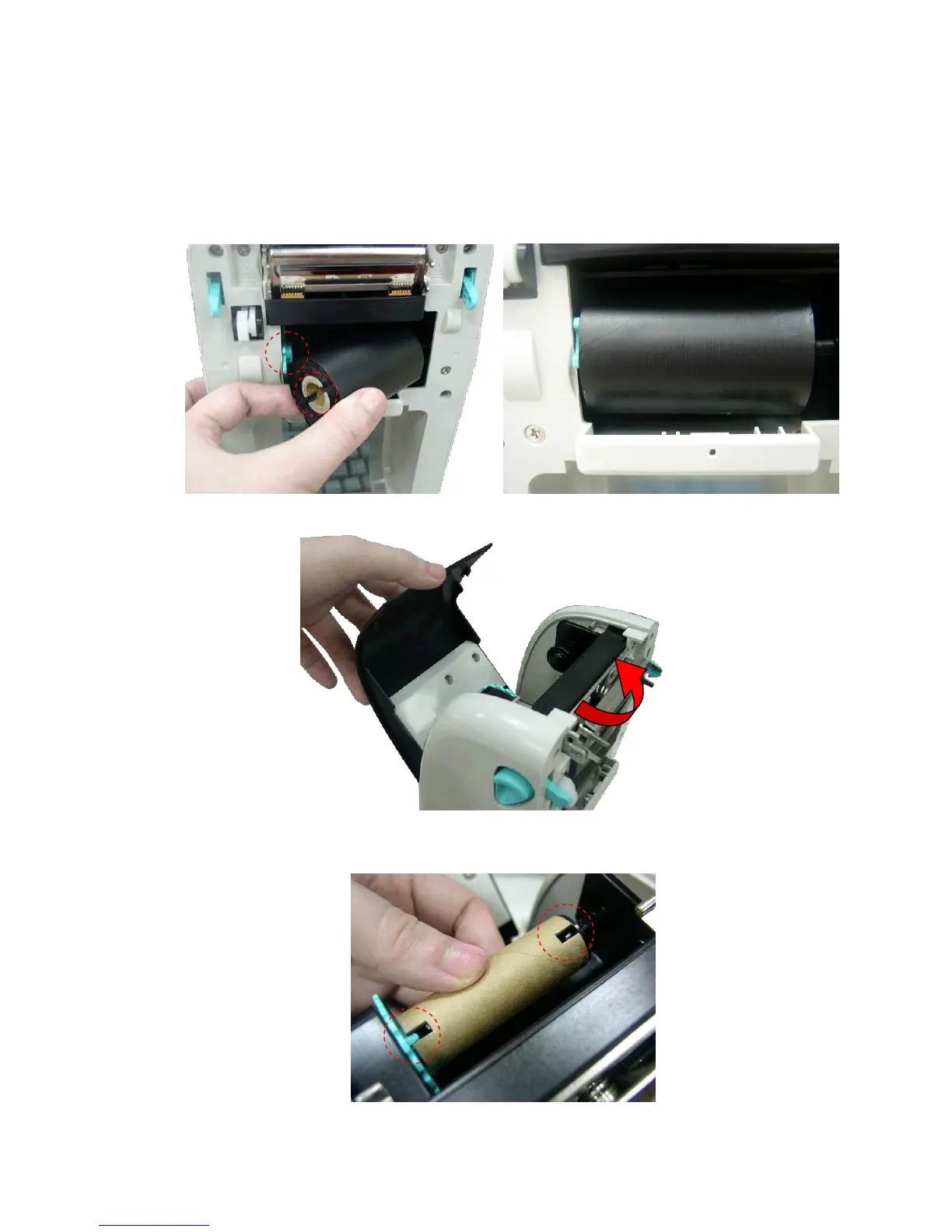

3.3 Loading the Ribbon
1. Open the printer’s top cover by pulling the top cover open levers located on each side of
the printer and lifting the top cover to the maximum open angle.
2. Insert the ribbon right side onto the supply hub. Align the notches on the left side and
mount onto the spokes.
3. Open the ribbon access cover.
4. Insert the paper core right side onto the rewind hub. Align the notches on the left side and
mount onto the spokes.
