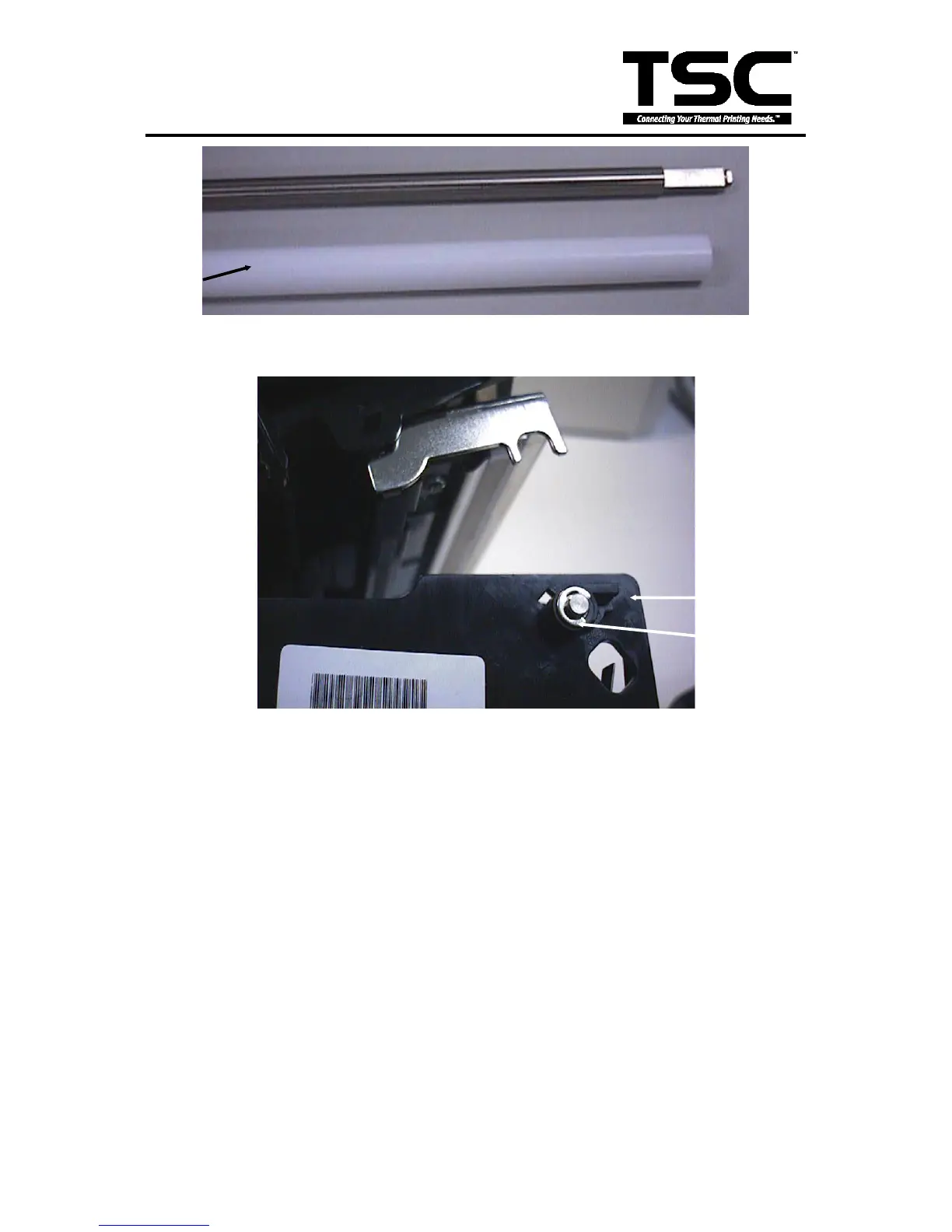

Fig. 4.18 Teflon tube and stripper rod
Fig. 4.19 Remove E ring and platen bush
22. Move the platen to the right of the mechanism.
23. Replace the platen and reassemble the removed parts in the reverse order of removal.
Teflon Tube
E Ring
Platen Bush
(Left Side)
